SMITH FS200 8 Inch Gasoline Scarifier

FS200/FS209 Operation, Repair, and Parts Manual

FS200 Gasoline Data Sheet (Spanish)

FS200 Gasoline Data Sheet

Frequently Asked Questions

What is the SMITH FS200 Gasoline Portable Scarifier used for?

The SMITH FS200 Gasoline Portable Scarifier is designed for concrete and asphalt surface preparation, including coating removal, line striping removal, crack routing, trip hazard repair, grinding, milling, planing, and surface cleaning.

What surfaces can the FS200 be used on?

The FS200 is engineered for concrete and asphalt surfaces commonly found in parking lots, sidewalks, garages, balconies, roadways, warehouses, and commercial or residential projects.

What engine powers the FS200 Gasoline model?

The FS200.H5 is powered by a reliable 5.5 HP Honda® gasoline engine, making it ideal for jobsites where electrical power is unavailable.

Does the FS200 include a cutter drum?

No. Cutter drums are sold separately, allowing you to select the drum configuration that best matches your application.

What is the maximum cutting width?

The FS200 provides a maximum cutting width of up to 8 inches.

How deep can the FS200 cut?

The machine removes material up to 1/8 inch per pass, depending on the cutter drum and surface conditions.

How much material can the FS200 remove per hour?

The FS200 can achieve production rates of up to 400 square feet per hour, depending on the surface, cutter drum, and operating conditions.

Can I connect a vacuum for dust control?

Yes. The integrated vacuum port allows you to connect a compatible vacuum system for cleaner, dust-controlled operation.

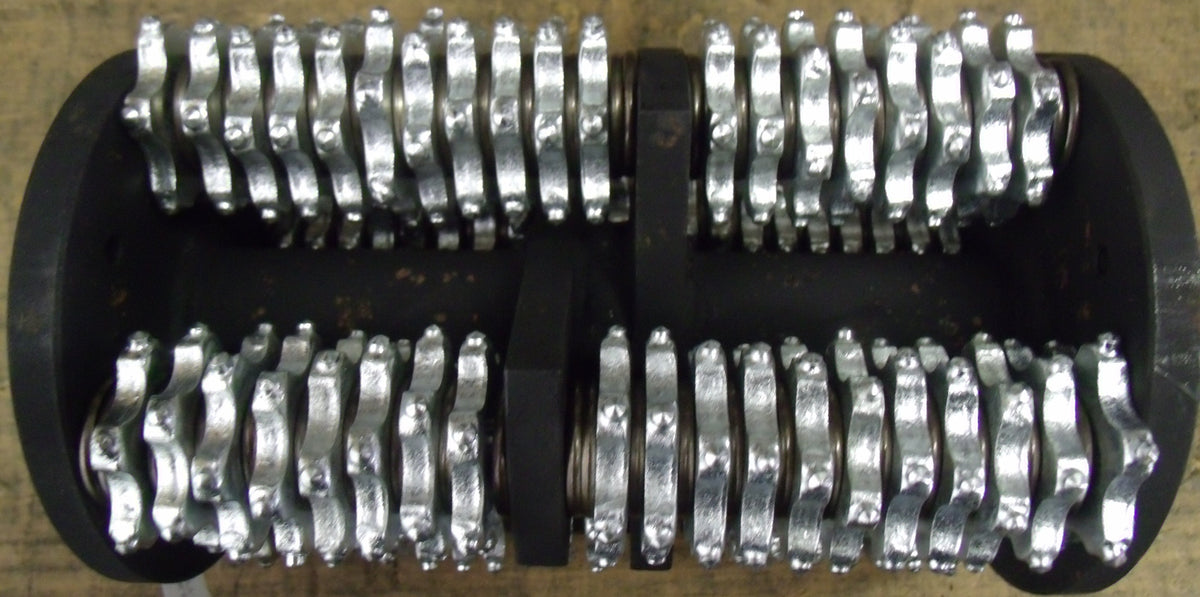

What cutter drums are compatible with the FS200?

The FS200 is compatible with:

• Carbide flails

• Star steel finish cutters

• 4N1 carbide strip cutters

• Carbide milling cutters

• Carbide scraping cutters

• Wire brush drums

Is the FS200 suitable for crack routing?

Yes. The FS200 is an excellent choice for crack routing and other concrete repair and restoration projects.

Can the FS200 be used for removing traffic markings?

Yes. The FS200 is commonly used for removing painted traffic lines, parking lot striping, thermoplastic markings, coatings, and other surface materials.

Is an edging attachment available?

Yes. An optional edger attachment allows the machine to work as close as 0.6 inches (1.5 cm) from walls, curbs, and other obstacles.

Who typically uses the FS200 Gasoline Scarifier?

The FS200 is widely used by parking lot striping contractors, sidewalk repair professionals, highway maintenance crews, concrete contractors, government maintenance departments, facility maintenance teams, and homeowners.

Is an electric version available?

Yes. SMITH also offers the FS200 in electric models with multiple voltage and horsepower options for indoor and electrically powered applications.

What maintenance features are included?

The FS200 features sealed bearings for extended service life, a side-loading cutter drum design for quick drum changes, an ergonomic vibration-dampening handlebar for operator comfort, and a remote power shutoff for added safety.

Are replacement parts and manuals available?

Yes. Operation, repair, and parts manuals are available for the FS200, along with gasoline model data sheets, including a Spanish-language version, to assist with operation, maintenance, and servicing.
