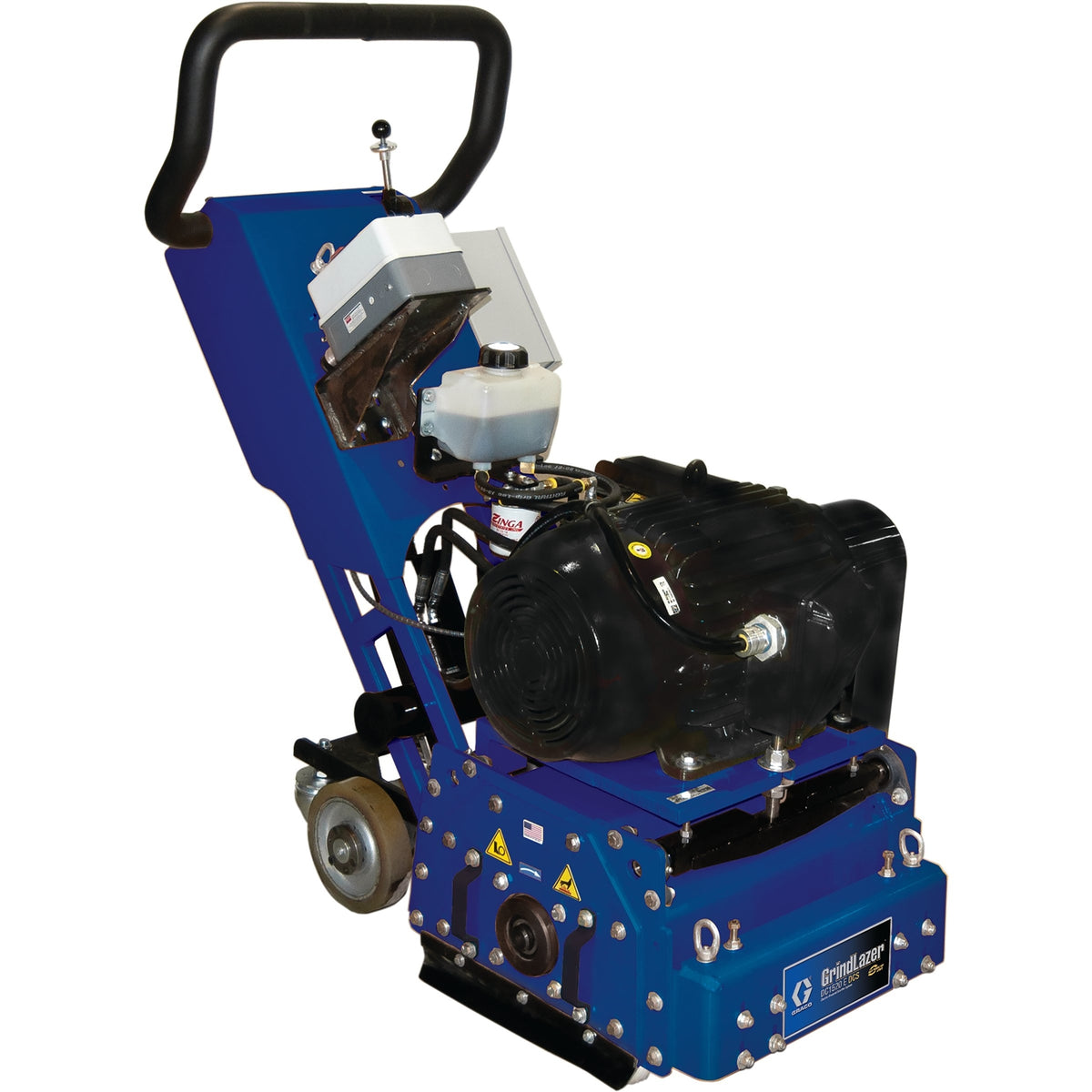

Graco GrindLazer HP DC1520 E DCS Scarifier Kit

GrindLazer HP DC1520 E DCS High-Speed Self-Propelled Electric Scarifier for Heavy-Duty Surface Prep

The Graco GrindLazer HP DC1520 E DCS is a professional-grade, self-propelled drum scarifier engineered for the most demanding concrete removal and surface preparation applications. Part of Graco's High Production Series, it features the proprietary DCS (Depth Control System) — an electronic mechanism that allows operators to adjust cut depth on the fly without stopping the machine. With a 20-inch drum capacity and a cutting path up to 16 inches wide, it is built for contractors who need consistent, repeatable results across large floor areas. This kit includes the High-Speed Pulley configuration for increased drum RPM and more aggressive material removal rates.

What separates the DC1520 E DCS from conventional scarifiers is Graco's electronic DCS technology, which eliminates the manual depth-adjustment downtime that slows production on conventional machines. The High-Speed Pulley Kit increases cutting speed, making it significantly more productive than standard-speed configurations when removing coatings, laitance, or profiling for overlays. The self-propelled drivetrain reduces operator fatigue over long shifts on large commercial or industrial floors.

Key Features & Benefits

Electronic DCS Depth Control System

Graco's DCS allows the operator to change cutting depth without stopping the machine, eliminating costly downtime during production passes. This translates directly to faster job completion and tighter control over surface profile consistency — critical when specifying CSP for coatings or overlays.

High-Speed Pulley Kit

The included high-speed pulley increases drum RPM beyond the standard configuration, delivering more aggressive material removal per pass. This is particularly valuable on thick coatings, deteriorated concrete, or when a job demands maximum production throughput.

16-Inch Wide Cutting Path

A 16-inch cutting width covers significantly more surface area per pass compared to smaller walk-behind units, reducing the number of passes required on large slabs. Fewer passes means less labor time and lower overall job cost for the contractor.

Self-Propelled Drive System

The self-propelled drivetrain maintains consistent forward travel speed regardless of operator fatigue, ensuring uniform surface profile across the entire work area. Consistent travel speed directly affects surface profile uniformity — a key quality control factor when preparing for coatings or overlays.

Heavy-Duty Drum Scarifier Design

The drum-style scarifier head accepts a wide range of cutter configurations, allowing operators to select the appropriate tooling for the specific surface profile or removal requirement. This versatility means a single machine can handle multiple job types without swapping equipment.

Electric Power Source

Electric drive eliminates fuel costs, exhaust emissions, and the maintenance overhead associated with gasoline engines. It is well-suited for indoor applications in occupied or semi-occupied facilities where combustion engine exhaust is not permissible.

Common Applications

Concrete Surface Profiling for Coatings

The DC1520 E DCS prepares concrete floors to the specified CSP (Concrete Surface Profile) required before applying epoxy, polyurethane, or other industrial coatings — ensuring proper mechanical adhesion and coating longevity.

Removal of Adhesive and Glue Residue

Scarifying effectively removes old tile adhesive, carpet glue, and mastic residues from concrete substrates, providing a clean surface for new flooring installations.

Coating and Paint Removal

The high-speed drum configuration aggressively strips existing floor coatings, paints, and sealers from concrete without the slow pass rates associated with standard-speed scarifiers.

Laitance and Weak Surface Removal

On new concrete pours or contaminated slabs, the scarifier removes the weak surface layer (laitance) to expose sound concrete below — a required step before bonded overlays or industrial toppings.

Warehouse and Industrial Floor Preparation

Large footprint commercial and industrial floors benefit from the 16-inch cutting width and self-propelled drive, allowing crews to cover significant square footage efficiently in a single shift.

Joint and Crack Scarifying

Controlled depth adjustment via DCS allows operators to scarify along joints, cracks, or specific zones without over-cutting adjacent areas — precise work that manual depth-set machines cannot perform as effectively.

Indoor Surface Prep (Low-Emission Applications)

Electric power makes this unit suitable for hospitals, schools, warehouses, and other indoor environments where gasoline or propane exhaust is restricted or prohibited.

Compatible Materials

• Concrete slabs (interior and exterior)
• Epoxy and polyurethane floor coatings
• Paint and sealer on concrete
• Tile adhesive and mastic residues
• Carpet glue and adhesive backing
• Laitance and weak concrete surface layers
• Thin-set mortar residues
• Asphalt surfaces (with appropriate tooling)

Technical Specifications

Frequently Asked Questions

Q: What is the DCS Depth Control System and why does it matter on a job site?
A: DCS (Depth Control System) is Graco's electronic system that lets the operator adjust cutting depth while the machine is in motion — no stopping, no manual adjustments. On large floor jobs, this saves significant time and allows precise depth changes when transitioning between surface zones with different requirements.

Q: What is the advantage of the High-Speed Pulley Kit over a standard pulley?
A: The high-speed pulley increases drum RPM, which means more cutting flail strikes per square foot of surface. This results in faster material removal rates — particularly beneficial on thick coatings, stubborn adhesives, or when maximum production speed is the priority.

Q: Is this machine suitable for indoor use in occupied buildings?
A: Yes. The electric power source produces no combustion exhaust, making it appropriate for use in hospitals, schools, retail environments, and other occupied or semi-occupied facilities where propane or gasoline engines are not permitted.

Q: What drum tooling is compatible with the DC1520 E DCS?
A: The machine accepts standard scarifier drum cutters in various configurations (flails, cutters, rings). Tooling selection depends on the required surface profile and removal application. Consult Graco's tooling compatibility guide or your Diamond Tool Store representative for the appropriate cutter specification for your job.

Q: How wide is the cutting path and how does that affect job productivity?
A: The DC1520 E DCS cuts a path up to 16 inches wide per pass. On a 10,000 square foot floor, the wider cutting path directly reduces the number of required passes — lowering labor hours and speeding up project completion compared to narrower units.

Q: What surface profile (CSP) can this machine achieve?
A: Scarifiers typically produce CSP 4–6 depending on tooling type, drum speed, and number of passes. The high-speed configuration with appropriate flail tooling can achieve profiles toward the higher end of that range. Verify target CSP requirements with your coatings manufacturer before beginning surface preparation.
