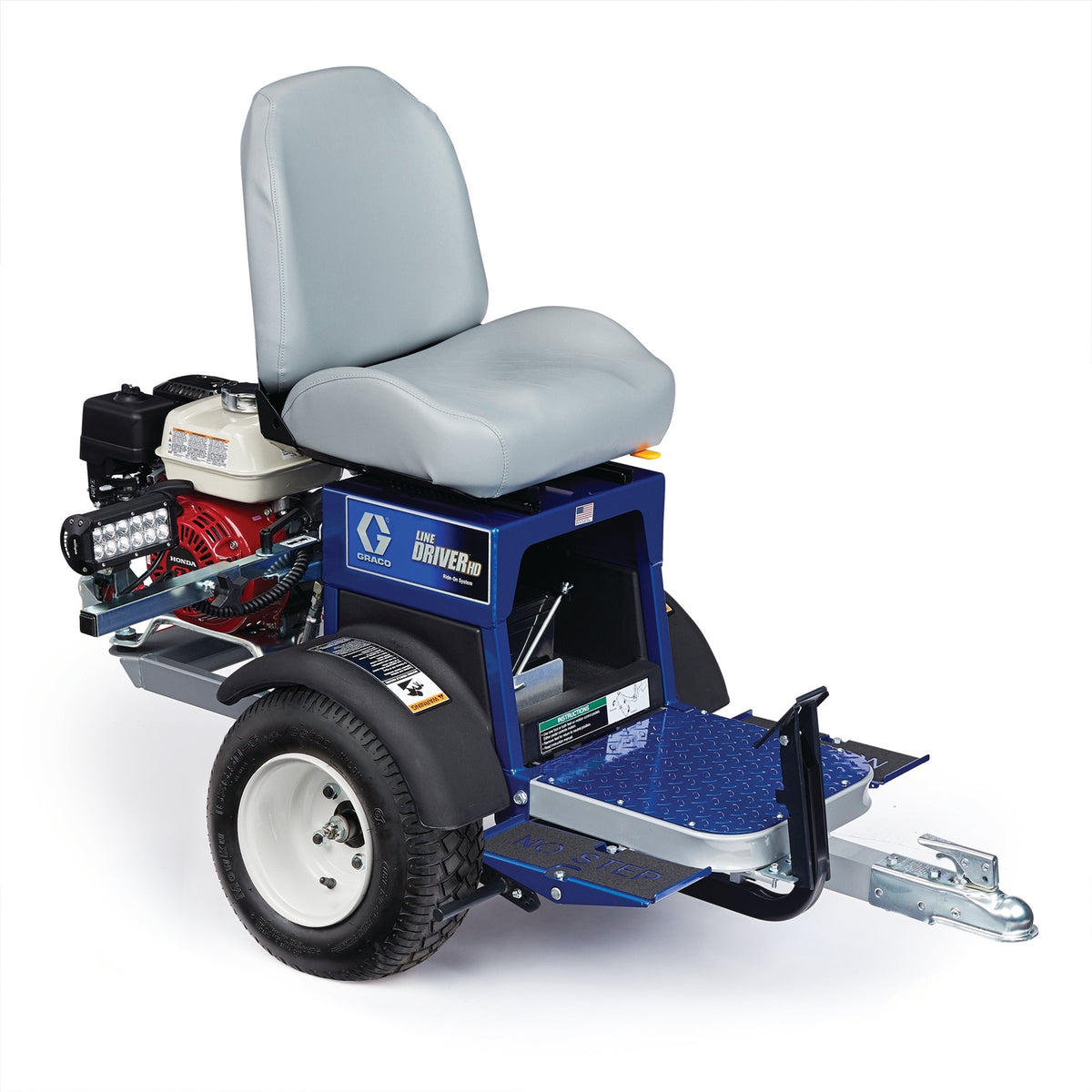

Graco LineDriver HD Ride-On Attachment with Honda GX Engine

Increase productivity on striping, thermoplastic, and scarifying jobs with the Graco LineDriver HD Ride-On Attachment. Powered by a reliable 6.5 HP Honda GX engine with ProStart technology, the LineDriver HD reduces operator fatigue while delivering faster job completion and greater control. Compatible with Graco LineLazer, GrindLazer, and ThermoLazer equipment, it provides smooth ride-on operation for demanding pavement maintenance applications.

Product Overview

The Graco LineDriver HD Ride-On Attachment is designed to maximize productivity for professional pavement marking and surface preparation contractors. Its hydraulic drive system, patented dual foot pedal controls, and contractor-preferred Honda GX engine allow operators to complete larger jobs faster with less fatigue.

Whether paired with a LineLazer striper, GrindLazer scarifier, or ThermoLazer system, the LineDriver HD delivers increased efficiency, improved maneuverability, and all-day operating comfort.

Features & Benefits

6.5 HP Honda GX Engine

• Reliable commercial-grade Honda GX engine
• Oil Alert® engine protection
• Contractor-proven durability

ProStart Engine Starting System

• Up to 50% less pull effort
• Easier cold-weather starts
• Eliminates common recoil failures

Patented Dual Foot Pedal Drive

• Forward and reverse foot pedals
• Hands remain on machine controls
• Increased maneuverability

FlexBeam LED Lighting

• Bright LED illumination
• Retractable breakaway design
• Improved visibility in low-light conditions

Cool-Comfort Seat

• High-back padded seat
• Stays cooler in direct sunlight
• Reduces operator fatigue

Hydraulic Drive System

• Smooth acceleration
• Excellent hill climbing capability
• Precise machine control

Applications

• Parking lot striping
• Road striping
• Airport markings
• Thermoplastic striping
• Concrete scarifying
• Pavement surface preparation
• Crosswalk installation
• Warehouse floor markings
• Industrial facilities
• Municipal road maintenance

Technical Specifications

Compatible Equipment

Compatible with numerous Graco machines including:

• LineLazer Series
• GrindLazer Series
• ThermoLazer Series
• High Production GrindLazer Models
• Various professional pavement marking systems

Standard Features

• Honda GX commercial engine
• ProStart starting system
• Hydraulic drive
• Dual foot pedals
• FlexBeam LED lighting
• High-back comfort seat
• Pneumatic tires
• Heavy-duty steel frame
• Hitch system
• Ride-on platform

Product Manuals

• 312540-R – LineDriver / LineDriver HD Operation, Repair & Parts Manual
• 309405L – Trailer Hitch Conversion Kit 245321 Instructions
• 3A6720B – Trailer Hitch Conversion Kit 25N787 Instructions

Sales Literature

• 344385EN – LineLazer Product Brochure

Replacement Parts

• 246385 – Inlet Strainer, Nylon Cap
• 247930 – Hydraulic Pump Repair Kit

Common Uses

• Ride-on line striping
• Large parking lots
• Airport runways
• Highway striping
• Surface preparation
• Concrete scarifying
• Thermoplastic installation
• Long-distance pavement marking
