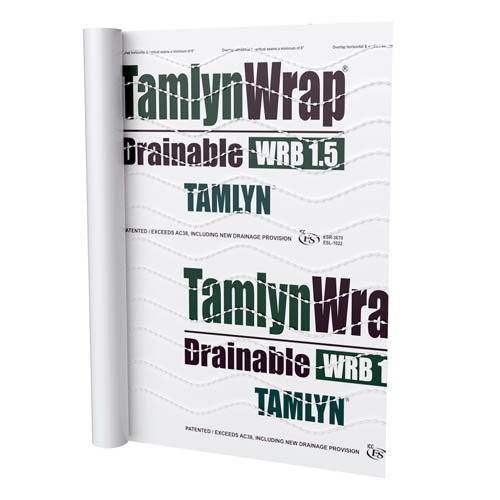

TamlynWrap® Drainable Wrap 5' x 100'

TamlynWrap Drainable WRB — High-Performance Moisture Management for Exterior Wall Systems

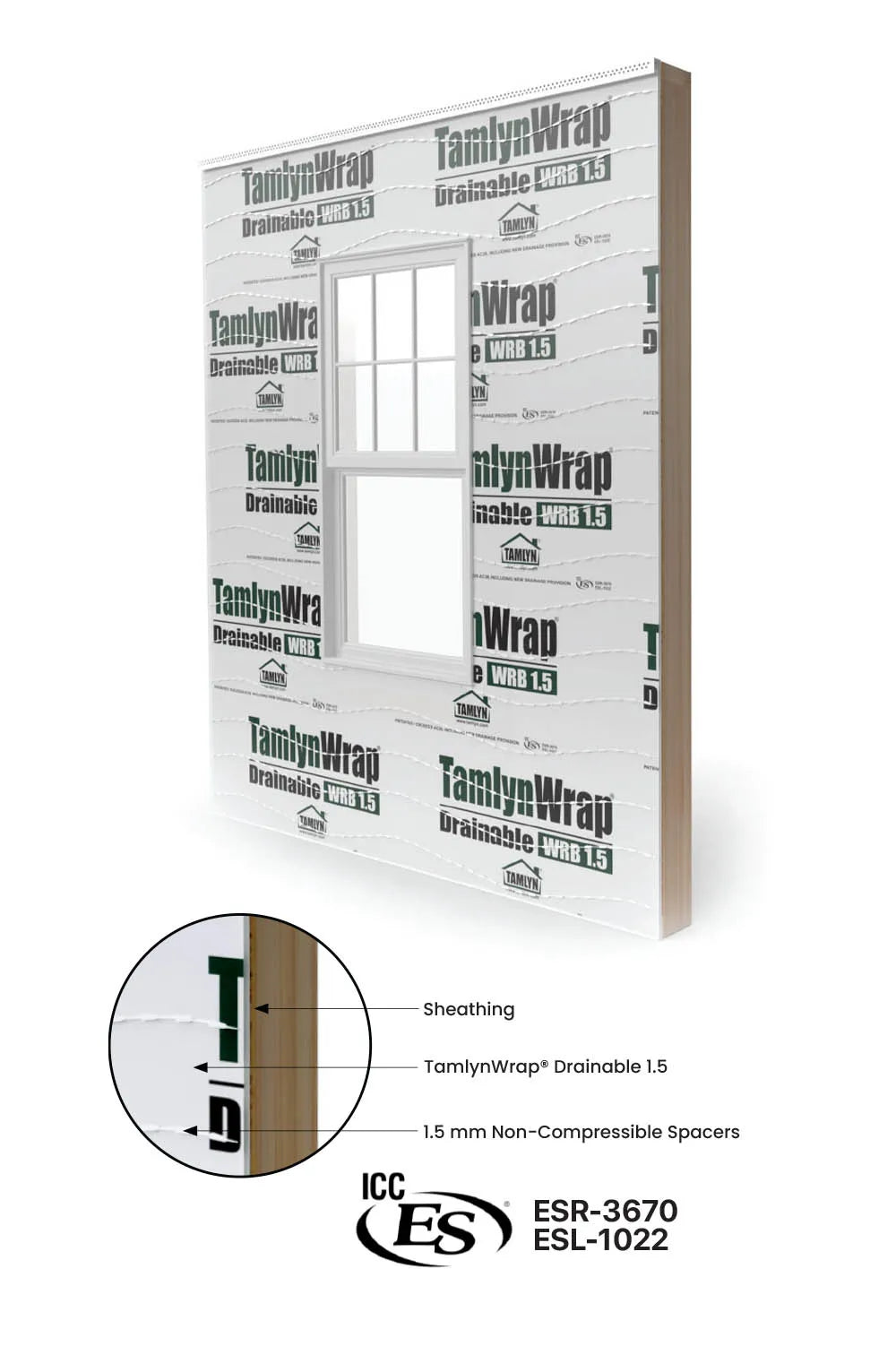

The TamlynWrap® Drainable WRB (model TWD5X100) is a patented moisture management product that integrates a high-performance Water Resistive Barrier with a structured drainage layer into a single wrap. Designed for residential and commercial construction professionals, it is engineered for installation over exterior sheathing beneath any cladding material. The 1.5 mm non-compressible spacers bonded to the WRB face create a continuous physical drainage gap between the sheathing and cladding, enabling rapid bulk water evacuation that standard housewraps cannot achieve. This product meets or exceeds ICC acceptance criteria for water resistive barriers (AC38) and drainage efficiency.

Unlike conventional drainable wraps that rely on directional drainage channels, TamlynWrap Drainable WRB uses an omni-directional spacer pattern, allowing installation in any orientation without loss of drainage performance. This flexibility reduces installation errors and labor time on complex facades. Its vapor permeability rating of 19 perms supports wall drying from both interior and exterior moisture sources, directly reducing the risk of mold, rot, and long-term structural damage.

Key Features & Benefits

100x Bulk Water Drainage vs. Standard Wraps

The 1.5 mm non-compressible spacers create a defined air and drainage gap between the WRB surface and the cladding material. This physical space allows bulk water — whether from wind-driven rain or condensation — to drain downward and out of the wall assembly rather than being trapped against the sheathing. In climates with high rainfall or for cladding types prone to moisture infiltration, this drainage capacity is a critical line of defense.

Omni-Directional Installation

The spacer pattern is engineered to provide equivalent drainage performance regardless of installation direction — horizontal, vertical, or diagonal. This eliminates the orientation constraints found in competing drainable wraps and allows crews to adapt to job-site conditions without compromising system performance. Less rework, fewer callbacks.

Vapor Permeable — 19 Perm Rating

A perm rating of 19 allows water vapor to migrate through the WRB from interior to exterior, supporting wall assembly drying and preventing moisture accumulation within the wall cavity. This is particularly important in mixed-humidity climates where vapor drive can reverse seasonally, and in high-performance building enclosures where airtight assemblies demand vapor-open WRBs.

Code-Compliant Drainability

TamlynWrap Drainable WRB meets or exceeds all ICC AC38 acceptance criteria for both water resistive barrier performance and drainage efficiency. This simplifies the approval process for permitted projects and gives builders documented compliance support for code inspections and warranty claims.

25-Year Product and Labor Warranty (System)

When installed as a complete Tamlyn Water Management System — including XtremeFlashing Tape, XtremeSealant/BrunnoSeal, and XtremeSeam Tape — the product is backed by a 25-year product and labor limited warranty. Standalone product carries a 15-year limited warranty. Project registration is required for the 25-year coverage.

Single-Layer Moisture Management

By combining WRB functionality with an integrated drainage gap in one product, TamlynWrap Drainable WRB eliminates the need for a separate drainage mat or furring strip installation in many assemblies. This reduces material cost, installation steps, and the risk of compatibility issues between separate products.

Common Applications

Residential New Construction

Installed over wood or OSB sheathing beneath siding, stucco, stone, or other cladding to provide code-compliant moisture management on new homes. Particularly effective in coastal and high-rainfall regions where bulk water management is critical.

Commercial Building Envelopes

Suitable for low-rise commercial construction requiring a vapor-permeable WRB with active drainage behind rainscreen or directly-applied cladding systems. Meets ICC AC38 for project submittals and specification compliance.

Stucco and EIFS Backup

Provides the required drainage gap behind stucco systems that are prone to bulk water infiltration at joints and penetrations. The physical drainage plane prevents water from being held against the sheathing — a primary cause of stucco assembly failures.

Fiber Cement and Engineered Wood Siding

The drainage gap protects moisture-sensitive cladding substrates and sheathing from back-side wetting, extending the service life of siding installations and reducing maintenance callbacks.

Block and Concrete Wall Construction

Compatible with block and concrete wall substrates using the Tamlyn-approved installation method. Provides a drainage and drying plane even on mass masonry walls that are otherwise difficult to detail for moisture management.

Rainscreen Wall Assemblies

Functions as the WRB layer in a rainscreen wall assembly, combining barrier and drainage functions to simplify the wall cross-section while meeting rainscreen performance requirements.

Renovation and Re-cladding Projects

Can be applied over existing substrate during re-siding projects to upgrade moisture management performance without extensive structural modifications, provided the substrate is sound and properly prepared.

Compatible Materials

• Wood structural panel sheathing (plywood, OSB)
• Concrete masonry units (CMU) / block walls
• Poured concrete walls
• Fiber cement siding
• Engineered wood siding
• Stucco cladding systems
• EIFS (Exterior Insulation and Finish Systems)
• Natural and manufactured stone veneer
• Brick veneer
• Metal panel cladding
• Cedar and hardboard siding
• Tamlyn XtremeFlashing Tape (required for system warranty)
• Tamlyn XtremeSealant / BrunnoSeal (required for system warranty)
• Tamlyn XtremeSeam Tape (required for system warranty)
• Tamlyn XtremeCorners (required for system warranty)
• Tamlyn cap fasteners (required for attachment per installation guidelines)

Product Documents

• Drainable Wrap Warranty
• Warranty Registration Form

Application Instructions

Surface Preparation

1. Verify that sheathing is dry, structurally sound, and free of protrusions, fastener heads, or debris that could compromise the WRB or drainage layer.
2. Install any required flashing at windows, doors, and penetrations prior to or in coordination with WRB installation per applicable Tamlyn flashing details.

Installation

1. Install TamlynWrap Drainable Wrap shingle fashion, starting at the base of the wall and working upward so that each successive course overlaps the one below.
2. Maintain a minimum 6-inch overlap at all horizontal and vertical seams.
3. At corners, provide a minimum 12-inch vertical overlap.
4. Secure the wrap using Tamlyn cap fasteners throughout — cap fasteners are required per installation guidelines and warranty terms.
5. Tape all vertical seams using Tamlyn XtremeSeam Tape (required for 25-year system warranty).
6. Apply XtremeFlashing Tape at all windows, doors, and penetrations. Use XtremeSealant or BrunnoSeal at all sealant joints.
7. For block or concrete wall applications, follow the dedicated Tamlyn Block/Concrete Wall Installation guide.
8. For modified I-method or cut-back method details at openings, refer to the respective Tamlyn installation guides.

Warranty Registration

1. To qualify for the 25-year Product and Labor Limited Warranty, project registration is required.
2. Complete the Tamlyn Water Management System Warranty Registration form and submit via fax to 281-499-8948 or email to [email protected].
3. All Tamlyn system components must be used: TamlynWrap Drainable Wrap, XtremeFlashing Tape, XtremeSeam Tape, XtremeSealant/BrunnoSeal, XtremeCorners or approved bowtie method, and cap fasteners.

Technical Specifications

Frequently Asked Questions

Q: Does this wrap need to be installed in a specific direction to drain properly?
A: No. The omni-directional spacer pattern provides equivalent drainage performance regardless of orientation — horizontal, vertical, or diagonal installation all maintain drainage effectiveness. This sets it apart from competing products that require specific directional alignment.

Q: What fasteners are required for installation?
A: Tamlyn cap fasteners are required throughout the installation. Using standard staples or roofing nails without caps is not compliant with Tamlyn installation guidelines and will void warranty coverage.

Q: What is required to qualify for the 25-year warranty?
A: The full Tamlyn Water Management System must be installed — including TamlynWrap Drainable Wrap, XtremeFlashing Tape, XtremeSealant or BrunnoSeal, XtremeSeam Tape, and XtremeCorners or approved bowtie method. Project registration must be submitted to Tamlyn at [email protected] or fax 281-499-8948 prior to or during installation.

Q: Can this product be used on concrete or block walls?
A: Yes. Tamlyn provides a dedicated Block/Concrete Wall Installation guide for this application. Follow that guide for proper detailing and attachment on masonry substrates.

Q: How long can TamlynWrap Drainable Wrap be left exposed before cladding installation?
A: UV exposure limits apply per product specifications. Refer to the MSDS and installation guidelines or contact Tamlyn technical support at 1-800-334-1676 for the maximum allowable UV exposure period for this product.

Q: Is this product compliant with current building codes for drainable WRBs?
A: Yes. TamlynWrap Drainable WRB meets or exceeds ICC AC38 acceptance criteria for both water resistive barrier performance and drainage efficiency, satisfying code requirements for drainability in jurisdictions that have adopted these standards.
