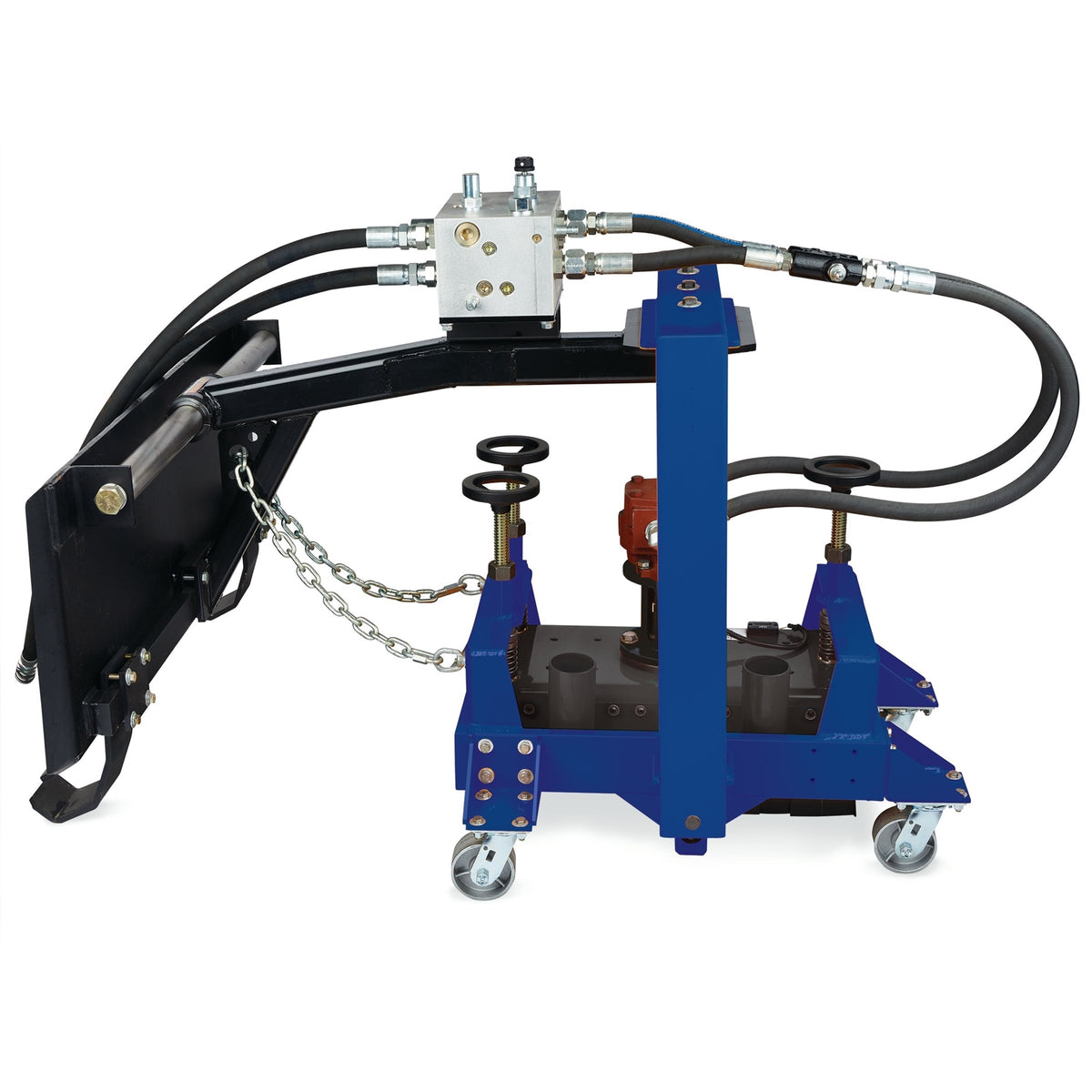

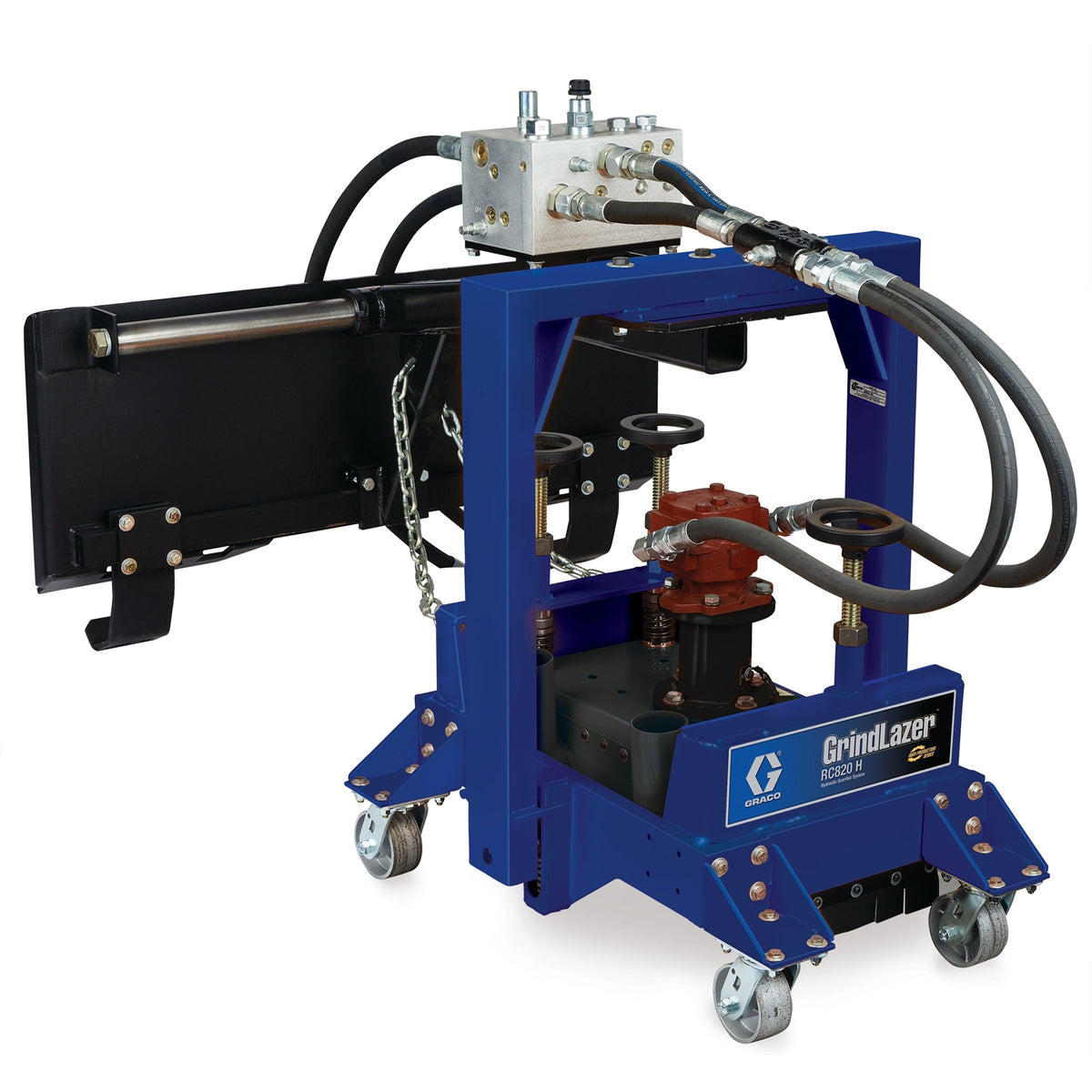

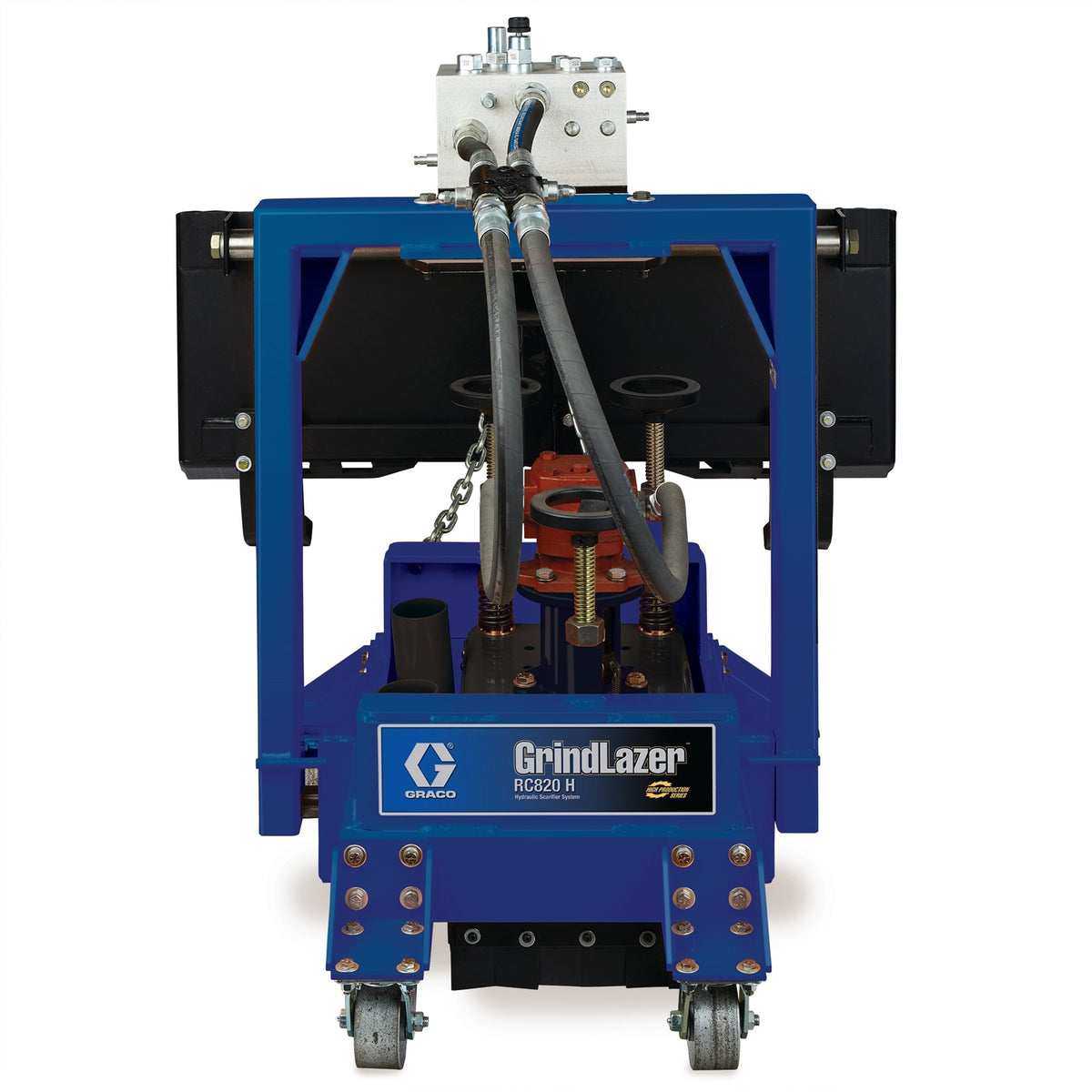

Graco GrindLazer HP RC820 H Hydraulic-Powered Rotary Scarifier for Skid Steers

Graco GrindLazer HP RC820 H Hydraulic-Powered Rotary Scarifier

The Graco GrindLazer HP RC820 H (Part #25P471) is a heavy-duty hydraulic rotary scarifier engineered for high-volume pavement marking removal and concrete surface preparation. Designed to mount directly to low-flow hydraulic skid steers, the RC820 H provides contractors and municipalities with a fast, efficient solution for removing painted traffic lines, thermoplastic markings, epoxy coatings, and other surface materials without creating deep grooves in the pavement.

Unlike traditional milling attachments, the RC820 H utilizes interchangeable rotary cutter assemblies and a floating spring suspension that follows uneven concrete and asphalt surfaces. The result is cleaner marking removal, improved surface quality, and reduced damage to the underlying pavement.

Built with a heavy-duty all-steel frame, universal quick-attach backplate, adjustable depth control, and integrated dust collection capability, the RC820 H is designed for demanding highway, airport, municipal, and commercial pavement maintenance applications. Its compatibility with most low-flow hydraulic skid steer systems makes it a versatile attachment for contractors looking to maximize existing equipment while increasing productivity.

Features

High-Volume Marking Removal

• Designed for high-production pavement marking removal
• Removes painted traffic lines
• Removes thermoplastic pavement markings
• Removes epoxy markings
• Removes temporary construction markings
• Excellent for road maintenance contractors
• Designed for continuous commercial use
• Single rotary cutter head removes an 8-inch (203 mm) wide path
• Performs well on uneven pavement surfaces

Low-Flow Hydraulic Operation

• Designed specifically for low-flow hydraulic skid steer loaders
• Operates on most low-flow hydraulic systems
• No separate engine to maintain
• Utilizes skid steer hydraulic power
• Simple hydraulic connection
• Reduced machine maintenance
• Ideal for fleets already using skid steer equipment

No-Groove Line Eraser

• Rotary cutting action removes pavement markings
• Helps eliminate ghost lines
• Removes markings without leaving deep grooves
• Maintains pavement integrity
• Produces a cleaner finished surface
• Suitable for asphalt and concrete pavement marking removal

Manual Depth Control System

• Multi-point manual depth adjustment
• Precise cutting depth control
• Easy adjustment for different marking thicknesses
• Helps reduce unnecessary pavement removal
• Consistent cutting performance

Spring Suspension System

• Cutter head "floats" across the surface
• Maintains consistent contact
• Compensates for uneven pavement
• Improves marking removal quality
• Reduces chatter
• Improves operator control

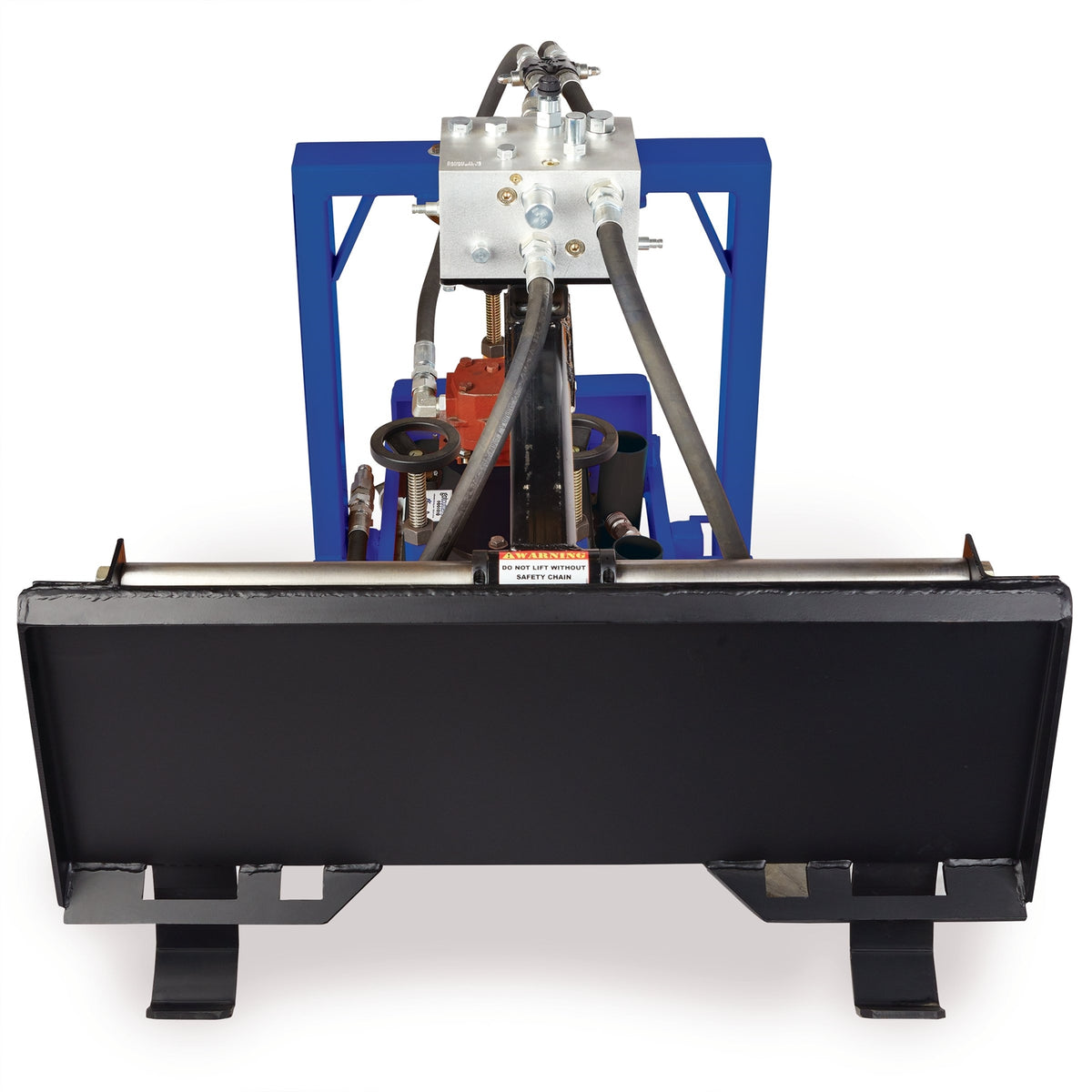

Universal Quick-Attachment Backplate

• Bob-Tach® compatible quick-attach plate
• Tool-free attachment
• Fast installation
• Quick removal
• Compatible with most skid steer loaders
• Maximizes equipment utilization

Heavy-Duty Construction

• Industrial all-steel frame
• Reinforced structural components
• Built for commercial use
• Designed for highway contractors
• Long service life
• Durable finish for demanding jobsite conditions

Dust Collection Ready

• Integrated vacuum port
• Compatible with Graco LazerVac® dust collection systems
• Helps reduce airborne dust
• Cleaner work environment
• Supports dust-control practices when used with an appropriate vacuum system

Technical Specifications

Hydraulic Requirements

Machine Dimensions

Shipping Information

Ideal Applications

• Highway striping removal
• Airport runway marking removal
• Parking lot line removal
• Thermoplastic marking removal
• Epoxy traffic marking removal
• Temporary construction marking removal
• Surface preparation before restriping
• Concrete surface preparation
• Asphalt maintenance
• Municipal road maintenance
• Airport maintenance
• DOT pavement rehabilitation
• Bridge deck marking removal
• Commercial parking facilities
• Industrial pavement maintenance

Compatible Equipment

• Low-flow hydraulic skid steer loaders
• Bob-Tach® compatible skid steers
• Graco LazerVac® dust collection systems
• Rotary cutter assemblies for different pavement marking materials

What's Included

• GrindLazer HP RC820 H rotary scarifier attachment
• Universal quick-attach backplate
• Rotary cutter head
• Manual depth adjustment system
• Spring suspension assembly
• Operation, repair, and parts manual
