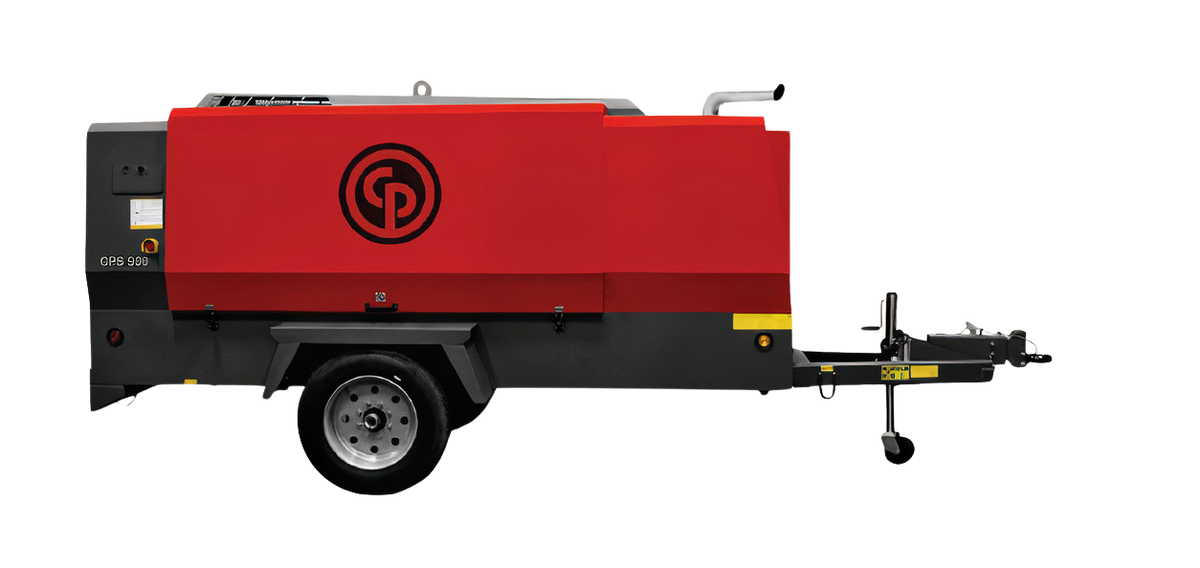

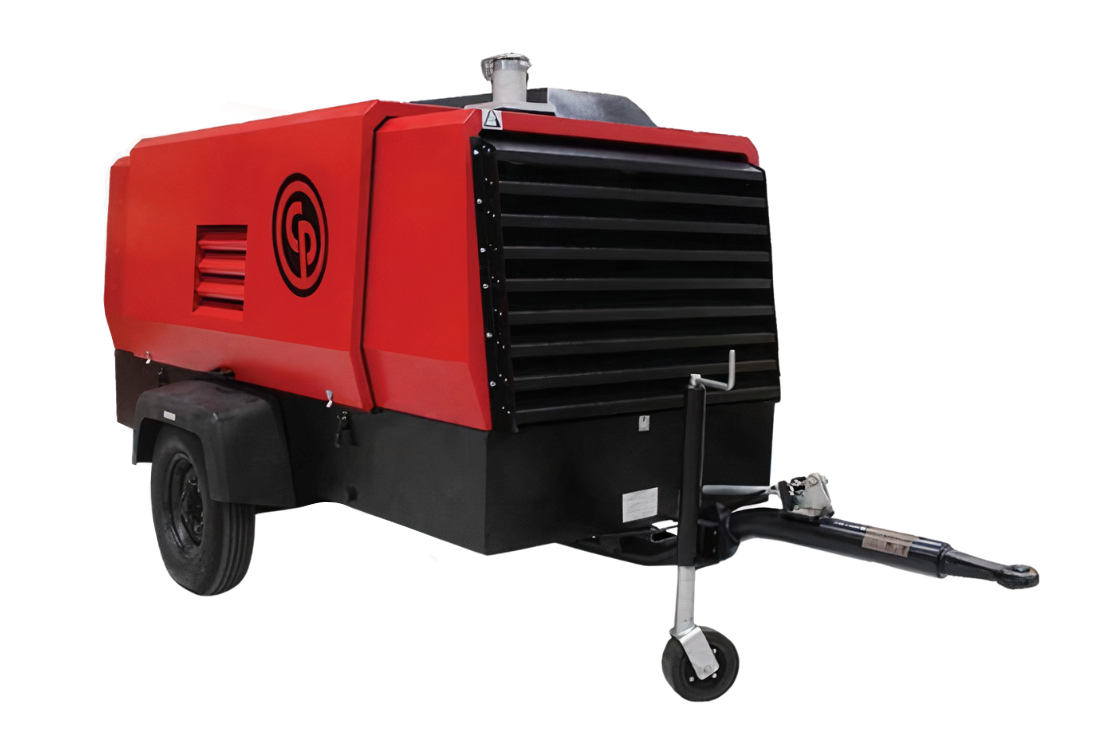

PORTABLE COMPRESSORS - CPS 650 & 900 JD

The CPS 650 & 900 JD series is a heavy-duty portable diesel air compressor designed for demanding construction, industrial, utility, infrastructure, and jobsite applications.

Powered by a John Deere 6068 250 HP Tier 4 Final diesel engine, the series provides variable pressure and flow capabilities to accommodate a wide range of pneumatic equipment and compressed-air requirements.

The CPS 900 JD EB delivers up to 867 CFM with operating pressure settings of 100, 125, or 150 PSI, while the CPS 650 JD EB provides up to 650 CFM with operating pressure settings of 200, 225, or 250 PSI. Both models feature a 110% spill-free containment system with remote drains, a thermostatic bypass valve, engine preheater with glow plugs, and a 120V 1000W engine block heater.

The CP Xc2003 controller provides operational monitoring, diagnostics, and safety warning/shutdown functions, including protection for high engine temperature and low fuel conditions. Standard towing equipment includes a DOT towing package, road lights with a 7-pin RV plug, adjustable 3-inch pintle towing hitch, 17.5-inch wheels, torsion axle, VIN, adjustable jockey wheel, and electric brakes.

The CPS 650 & 900 JD series is also available with a Standard Configuration + PFF Package, providing additional configuration options for applications requiring the PFF package.

Key Features

• John Deere 6068 250 HP Tier 4 Final diesel engine

• Tier 4 Final emissions rating

• Variable pressure and flow capabilities

• 110% spill-free containment with remote drains

• Thermostatic bypass valve

• Engine preheater with glow plugs

• 120V 1000W engine block heater

• CP Xc2003 controller

• Operational monitoring and diagnostics

• Safety warning and shutdown functions

• High engine temperature protection

• Low fuel monitoring

• DOT towing package

• Road lights with 7-pin RV plug

• Adjustable 3-inch pintle towing hitch

• 17.5-inch wheels

• Torsion axle

• VIN included

• Adjustable jockey wheel

• Electric brakes

• Standard PFF package configurations available

• CPS 900 JD EB available in 867, 808, and 750 CFM configurations

• CPS 650 JD EB available in 650, 612, and 575 CFM configurations

Applications / Recommended Use

• Construction jobsites

• Industrial applications

• Utility work

• Road and infrastructure projects

• Pneumatic tools

• Heavy-duty compressed-air applications

• Mobile jobsite operations

• Applications requiring variable air pressure and flow

• Large pneumatic equipment

• Cold-start and demanding operating environments

Product Specifications

Frequently Asked Questions (FAQ)

Q: What engine powers the CPS 650 & 900 JD series?
A: The CPS 650 & 900 JD series is powered by a John Deere 6068 250 HP Tier 4 Final diesel engine.

Q: What air flow options are available?
A: The CPS 900 JD models provide 867, 808, or 750 CFM, while the CPS 650 JD models provide 650, 612, or 575 CFM.

Q: What operating pressure settings are available?
A: The CPS 900 JD provides operating pressure settings of 100, 125, or 150 PSI, with a pressure range of 58–175 PSI. The CPS 650 JD provides operating pressure settings of 200, 225, or 250 PSI, with a pressure range of 58–225 PSI.

Q: What controller is used on the CPS 650 & 900 JD series?
A: The series uses the CP Xc2003 controller, which provides operational monitoring, diagnostics, and safety warning/shutdown functions.

Q: What safety features are included?
A: The controller provides safety warning and shutdown functions for conditions such as high engine temperature and low fuel. The compressor also includes 110% spill-free containment with remote drains.

Q: Does the CPS 650 & 900 JD include cold-start equipment?
A: Yes. Standard configuration includes an engine preheater with glow plugs and a 120V 1000W engine block heater.

Q: What towing equipment is included?
A: Standard equipment includes a DOT towing package, road lights with a 7-pin RV plug, adjustable 3-inch pintle towing hitch, 17.5-inch wheels, torsion axle, VIN, adjustable jockey wheel, and electric brakes.

Q: Are PFF configurations available?
A: Yes. The CPS 900 JD8 FT4 EB PFF EFT and CPS 650 JD8 FT4 EB PFF EFT are available as Standard Configuration + PFF Package models.
