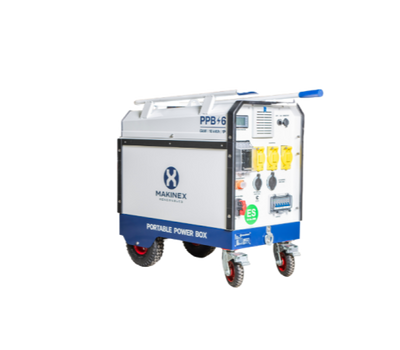

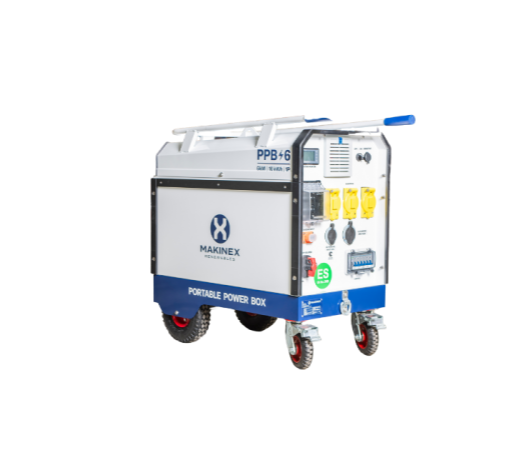

Makinex Portable Power Box Max 6-15 (PPB-6-15-US)

Makinex Portable Power Box Max 6-15 — 6kW Emission-Free Job Site Power Station

The Makinex Portable Power Box Max 6-15 (PPB-6-15-US) is a high-capacity, battery-based portable power station engineered for professional contractors, builders, and trades operators who need reliable, clean power in environments where generators are impractical or prohibited. Delivering continuous 6kW output with up to 15kWh of LFP battery capacity, the PPB-6-15-US supports a full range of 120V and 240V tools and equipment through its multiple outlet configurations. It charges via 120V or 240V mains supply or up to 4kW of solar photovoltaic (PV) input, making it deployable in remote or off-grid locations. This unit is built specifically for the US market with NEMA-compliant outlets and meets UL, CE, and UN safety certifications.

Unlike diesel or petrol generators, the PPB-6-15-US produces zero noise, zero emissions, and requires no fuel — eliminating the compliance barriers that prevent generator use indoors, in tunnels, underground, on film sets, or in residential environments. With a durable welded frame, integrated wheels, and a plug-and-play design, it can be deployed and operational in minutes without setup complexity or fuel logistics.

Key Features & Benefits

Zero Emissions, Zero Noise Operation

The PPB-6-15-US operates entirely on stored battery power with no combustion, making it fully compliant for use in confined spaces, underground environments, indoor construction sites, and sensitive locations where generator exhaust or noise is a safety or regulatory issue. Contractors can power tools and equipment in spaces where generators are outright prohibited, removing scheduling delays and compliance risk.

6kW Continuous Output with 12kW Surge Capacity

The 6kW continuous power output is sufficient to run multiple professional-grade power tools simultaneously, while the 12kW peak surge capacity (for up to 5 seconds) handles the high inrush current demands of motors and compressors on startup. This ensures the unit can support real-world job site loads without tripping or shutting down unexpectedly.

15kWh LFP Battery Capacity

With 15kWh (nominal 14.4kWh usable) of lithium iron phosphate battery storage, the PPB-6-15-US provides extended runtime for full-shift operation. LFP chemistry offers superior cycle life, thermal stability, and safety compared to other lithium battery types — critical in demanding job site environments where heat and physical stress are constant factors.

Flexible Charging: Mains and Solar PV

The unit accepts 120V (trickle charge, ~9 hours to full) and 240V (fast charge, ~3 hours to full) mains input, as well as up to 4kW of solar PV input via a touch-safe PV connector. This multi-source charging capability means the PPB can be recharged overnight on standard site power or kept topped up via solar panels during extended off-grid deployments.

Comprehensive Outlet Configuration

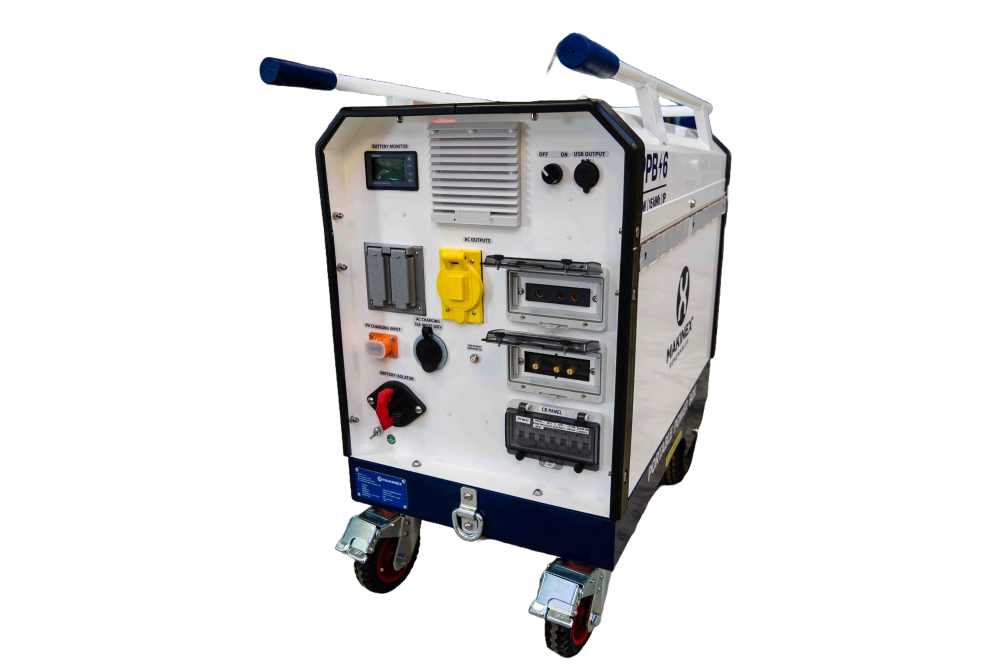

The distribution panel provides 1x L6-30R (30A 240V), 1x L15-30R (30A 120V/240V), and 1x L5-30R (30A 120V) outlets — all MCB protected — plus 2x double-gang 5-15 20A 120V GFCI-protected outlets and 1x USB-A and 1x USB-C (5V, 3.0A) for device charging. This range of outlet types covers virtually every tool and equipment configuration used on professional job sites, eliminating the need for adapters or additional distribution hardware.

RCD Protection, Thermal Overload, and Battery Management Display

The PPB-6-15-US includes RCD (residual current device) protection for both user and connected equipment, thermal overload protection, and circuit breaker protection across all outlets. The integrated battery management display gives operators real-time visibility into state of charge and system status, enabling proactive management of runtime and charging cycles rather than unexpected shutdowns on the job.

Durable Frame with Integrated Mobility

The heavy-duty welded steel frame is built to withstand job site transport and daily use, and the unit rolls on integrated casters for easy maneuvering across flat surfaces. At 488 lbs, it is designed to be moved with standard site equipment and positioned where power is needed rather than running long extension cord runs from a fixed generator location.

Common Applications

Indoor Construction and Fitout

Powers drills, saws, compressors, and lighting on interior construction sites where generator exhaust is a health and safety hazard or where ventilation is insufficient for combustion equipment.

Underground and Confined Space Work

Fully emission-free operation makes the PPB-6-15-US the only viable powered solution for tunneling, basement work, and confined space environments where combustion engines cannot be used under any circumstances.

Film and Media Production

Provides silent, clean power for lighting rigs, camera systems, sound equipment, and crew power needs on film sets where generator noise would interfere with recording or where indoor locations prohibit combustion sources.

Events and Temporary Power

Delivers reliable power for temporary event infrastructure — staging, lighting, audio, and vendor equipment — in locations where generator noise or emissions are unwelcome or restricted by venue or local authority requirements.

Mining and Industrial Sites

Rated for use in mining environments where strict emissions controls apply, providing a compliant power source for portable tools, instrumentation, and lighting in restricted zones.

Outdoor and Remote Job Sites

With solar PV charging input, the PPB-6-15-US can be sustained in off-grid locations without mains power access, reducing fuel logistics and generator maintenance overhead for remote crews.

Residential Construction

Eliminates noise and exhaust complaints from neighboring properties when working in urban or suburban residential environments, allowing work to continue without neighbor disputes or council restrictions.

Emergency Backup Power

Can serve as an emergency power source for critical equipment during power outages, providing substantial capacity to maintain operations or safety systems until mains power is restored.

Compatible Materials

• 120V power tools and equipment (via 30A and 20A GFCI outlets)
• 240V power tools and equipment (via 30A 240V outlet)
• 120V/240V dual-voltage tools and equipment (via L15-30R outlet)
• LED and HID lighting systems
• Air compressors (within 6kW continuous / 12kW surge rating)
• Pumps and motors (within surge capacity)
• Charging systems and battery-powered tool chargers
• AV, sound, and lighting control equipment
• USB-powered devices and instrumentation (via USB-A and USB-C ports)
• Solar PV panels (up to 4kW input for recharging)

Product Documents

• Product Brochure (PDF)
• Exploded Parts Diagram (PDF)
• Operator's Manual (PDF)

Application Instructions

Startup Operation

1. Position the PPB-6-15-US on a stable, flat surface near the work area.
2. Ensure the battery isolator is in the ON position.
3. Check the battery management display to confirm adequate state of charge for the planned work duration.
4. Connect tools or equipment to the appropriate outlet (match voltage and amperage requirements to the correct outlet type).
5. Power on the unit using the control interface and verify the display shows normal operating status.

Charging via 120V Mains

1. Connect the L5-15P 15A 120V inlet to a standard 15A 120VAC outlet using the supplied inlet cable.
2. Charging will begin automatically — allow approximately 9 hours for a full charge from depleted state.
3. Monitor charge progress on the battery management display.

Charging via 240V Mains

1. Connect the L6-20P 20A 240V inlet to a compatible 20A 240VAC outlet.
2. Charging will begin automatically — allow approximately 3 hours for a full charge from depleted state.

Charging via Solar PV

1. Connect compatible solar PV panels (up to 4kW combined output) to the PV inlet charging port using the touch-safe PV connector cable (PPB-PVIN, supplied).
2. Ensure panels are oriented for maximum solar exposure.
3. The unit will accept solar input automatically when available.

Shutdown Operation

1. Disconnect all connected tools and equipment from the outlets.
2. Power off the unit via the control interface.
3. If storing or transporting, engage the battery isolator switch to the OFF position.

Transporting the Unit

1. Ensure all outlets are disconnected and the unit is powered off before moving.
2. Use the integrated handles and casters to maneuver the unit across flat surfaces.
3. For transport in a vehicle, secure the unit using the tie-down anchor rings to prevent movement during transit.
4. Do not transport with the battery isolator in the ON position unless operationally required.

Technical Specifications

Safety Data Summary

Hazard Information

• Contains high-voltage lithium iron phosphate battery cells — risk of electric shock if housing is damaged or tampered with
• Do not expose to water ingress or operate in rain without appropriate protection
• Do not exceed rated outlet amperage — risk of thermal overload (unit has built-in protection)
• Battery contains stored energy — isolate using battery isolator switch before servicing
• Do not attempt to open, modify, or repair battery cells — refer all battery service to qualified technicians
• Risk of fire if battery is physically damaged, short-circuited, or subjected to extreme heat

Personal Protective Equipment

• Insulated gloves when connecting or disconnecting high-amperage outlets
• Steel-capped footwear when maneuvering the unit (488 lbs)
• Follow standard site PPE requirements for the work environment in which the unit is deployed

Safe Handling

• Always engage the battery isolator switch to OFF before transporting or storing the unit
• Secure with tie-down anchor rings during vehicle transport — do not allow unit to move freely
• Store in a cool, dry location — do not expose to temperatures outside the rated operating range
• Charge the battery before extended storage to maintain cell health
• Do not block ventilation openings on the unit during operation
• Inspect the unit and cable sets for damage before each use — do not operate if housing or cables are visibly damaged
• Only use approved inlet and outlet cables — do not use adapters that exceed the rated amperage of any outlet

Frequently Asked Questions

Q: Can the PPB-6-15-US be used indoors without ventilation requirements?
A: Yes. Because the unit produces zero emissions and zero combustion byproducts, it is fully approved for indoor and confined space use without any ventilation requirements — unlike diesel or petrol generators, which cannot legally be operated indoors in most jurisdictions.

Q: What is the realistic runtime at typical job site loads?
A: Runtime depends on connected load. At a continuous 3kW draw (approximately 50% of rated output), the 14.4kWh usable capacity provides roughly 4–5 hours of operation. Lighter loads extend runtime proportionally. For full-shift operation, overnight charging via 240V (3 hours to full) is the recommended practice.

Q: Can I run a 240V tool and 120V tools simultaneously?
A: Yes. The distribution panel provides independent 240V and 120V outlets, each on separate MCB-protected circuits. Multiple outlets can be used simultaneously provided the combined load does not exceed the 6kW continuous output rating.

Q: What solar panels are compatible for recharging?
A: The PPB-6-15-US accepts up to 4kW of solar PV input via the touch-safe PV inlet connector (cable set PPB-PVIN supplied). Compatible panels should match the voltage and current requirements specified in the operator's manual — consult Makinex or your dealer for panel compatibility before purchasing solar accessories.

Q: How do I know how much charge is remaining during operation?
A: The integrated MPP Remote LCD battery management display provides real-time state-of-charge information and system status. Operators should monitor the display during use to plan for recharging before depletion, particularly on longer shifts.

Q: Is the unit suitable for transport in a work vehicle or trailer?
A: Yes. The unit is equipped with two integrated tie-down anchor rings for securing during transport. The battery isolator should be switched to OFF before transport. At 488 lbs, the unit requires appropriate lifting equipment or a vehicle with a loading ramp — the casters are for on-site maneuvering on flat surfaces, not for loading/unloading from height.
