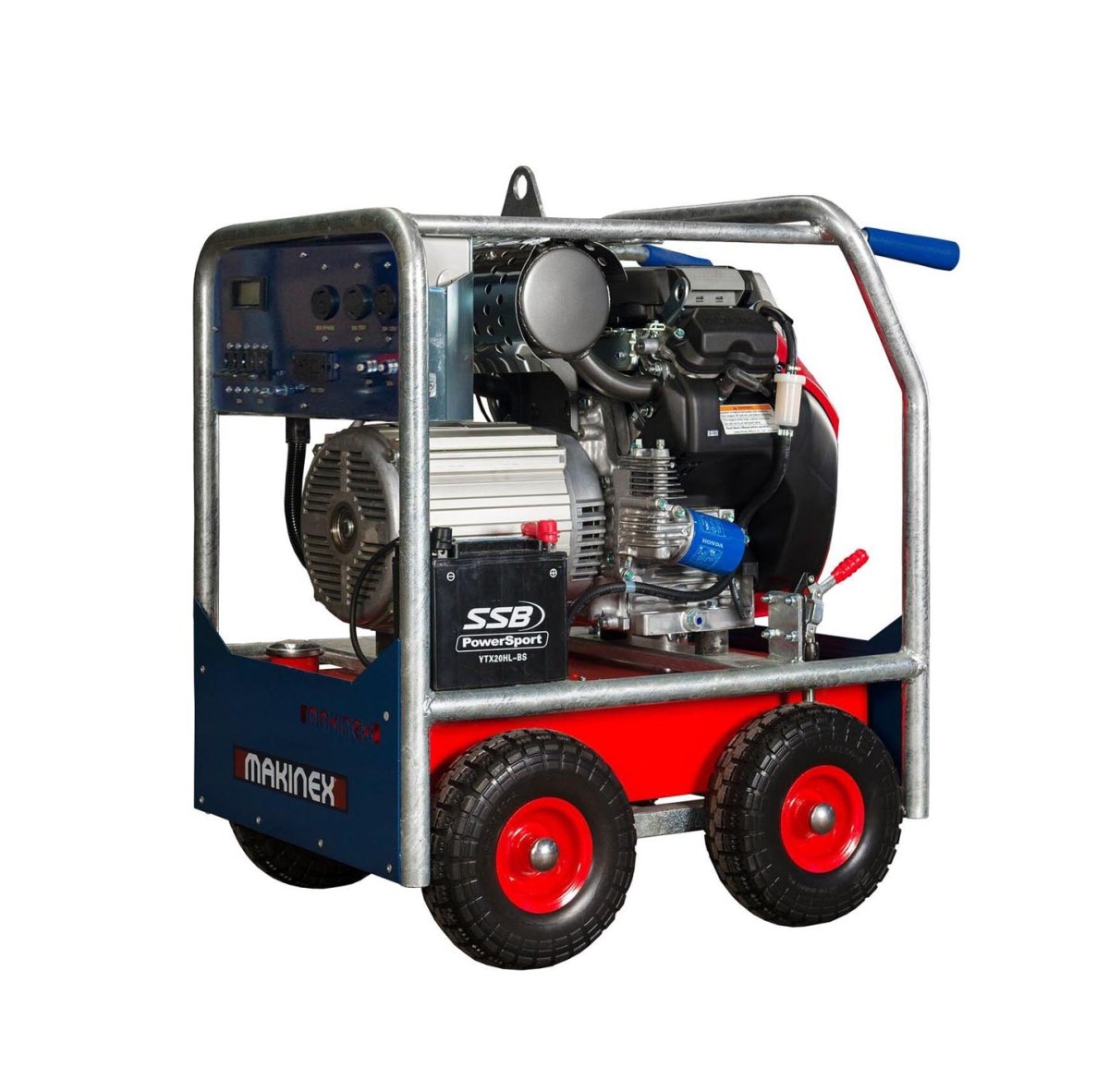

Generator 16kW 480V
SKU: GEN-16P-MS-480
Makinex Power Is Compact, Lightweight, And Dual-Phase!

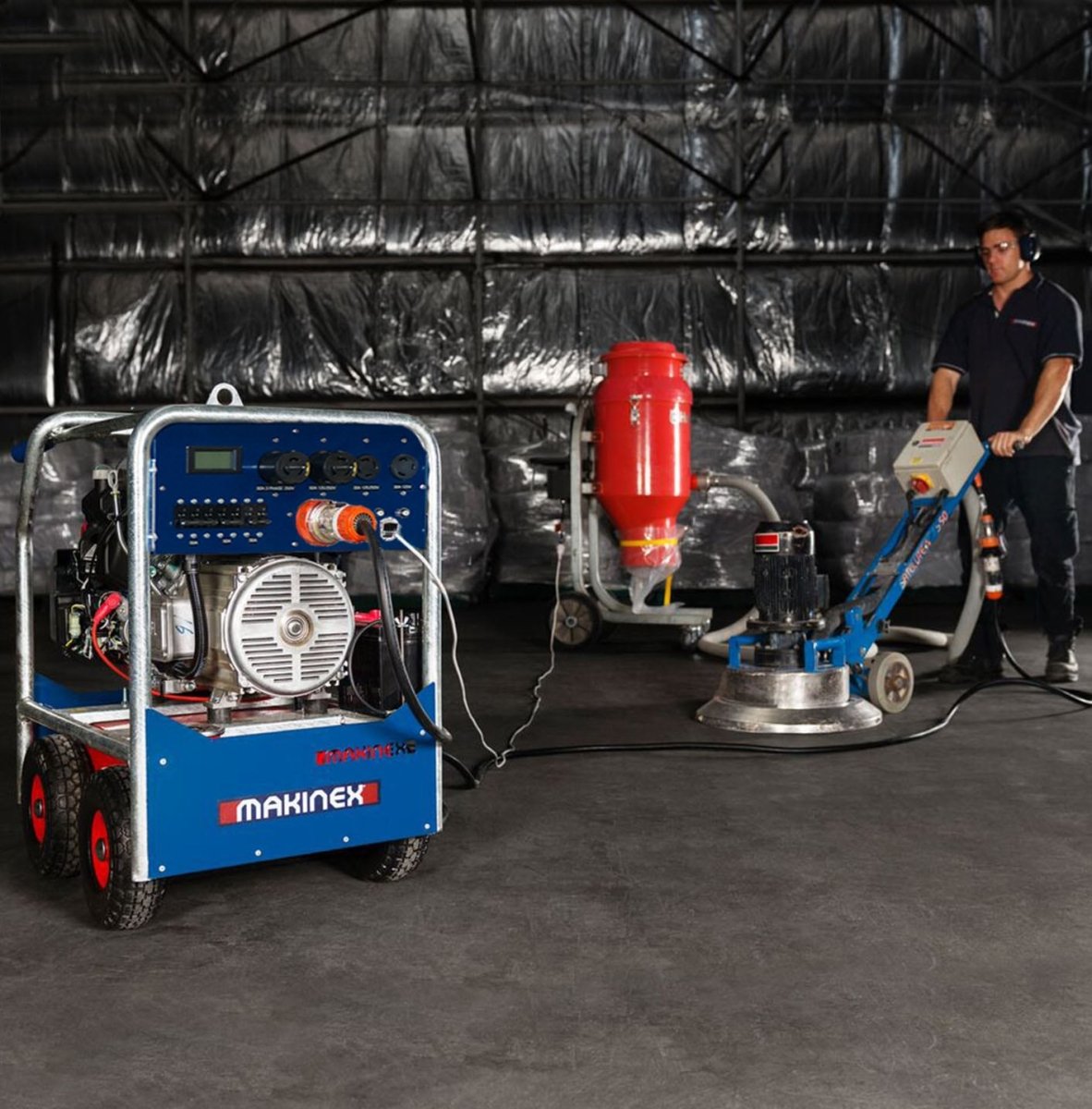

The Makinex 16kW 480V is a robust, powerful, and reliable solution for providing power to equipment and tools, floor grinding, welders and brick saws, air compressors, and a wide range of applications.
It is suitable for use in rental yards, construction sites, and rural areas, and offer a compact lightweight option when moving the Generator around on building sites as well as on and off vehicles.
The Makinex Generator Range is a robust, powerful, and reliable solution for providing power to equipment and tools, floor grinding, welders and brick saws., air compressors, and a wide range of applications.
They are suitable for use in rental yards, construction sites, and rural areas, and offer a compact lightweight option when moving the Generators around on building sites as well as on and off vehicles
Reasons To Invest:
- Our alternator allows you up to 15% more power from the engine
- We can boast that it is fully Australian designed
- We offer a 1-year warranty
- We provide you with the support you need, servicing, spare parts, on hand advice
- Full range of accessories to increase its capabilities even further, inc Long Range Fuel Tank and Parallel Box
- Our permanent magnet alternator technology reduces the cost of ownership.
Top Reasons For Choosing Makinex Generators
- All Makinex products are designed and built to endure the rigors of the rental market.
- Advanced alternator tech saves 15% fuel versus similar generators using the same engine.
- Makinex stands behind its products with technical support, servicing, and spares.
- Designed for maximum convenience and ease for concrete, masonry, and flooring pros.
Challenges On The Job
- Access to 3 phase and single phase power source
- Delays, waiting for 3-phase 480V power hook-up
- Getting the required outlets close to your work
- 3-phase 480V in a simple plug and play format
Our Solutions
- Highly portable, 3-phase 16kVA 480V generator
- 3-phase and single phase outlets on same machine
- Runs light and heavy duty equipment all together
- Reliable Honda GX690 4-stroke gas engine
- Comes with 3 year warranty
| Max Output | 16kw |
| Frequency | 60Hz |
| Voltage | 120V/480V + 480 3 phase |
| Rated Output | 2500W (120V) / 12500W (480V) |
| Max Output | 2500W (120V) / 13500W (480V) |
| Sockets | 120V GFCI receptacle / 480V 3 phase receptacle (30 amp] |
| Weight | 342Ib (155kg) |
| Noise Level (7) | No Load – 72dB 50% Load – 76dB 100% Load – 78dB |
| Engine | GX-690 |
| Starting System | Electric/Key Start |
| Engine Fuel Economy | o.92gal @ 50% LOAD |
| Run Time | 10hrs @ 50% load |
| Dimensions | 30.4 in (L) x 20.8 in (W) x 35.5 in (H) |
