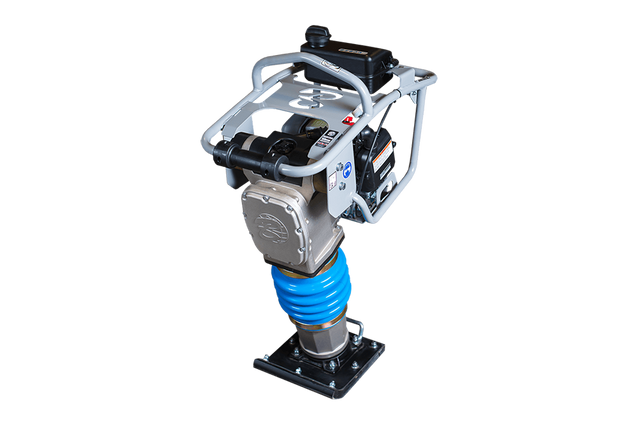

BT 1600 Compacting Rammer

Original price $3,595.00 - Original price $3,595.00
Original price
$3,595.00
$3,595.00 - $3,595.00
Current price $3,595.00
SKU BT1600H

Compacting Rammer designed for Heavy-Duty Compaction For Granular, Mixed and Cohesive Soils

The BT1600 is the heaviest hitting jumping jack offered by Bartell. It offers almost 500 lbs more compaction force than most standard rammers, helping you compact deeper material if needed. With the high-quality construction, this unit is built to stand up to the rigors of your job site day in and out.

For the smallest version of Bartell Rammers check out the BT 1000

Features of Jumping Jack Rammer

  • Adjustable height operators handle for operator comfort
  • Honda GX120 powered with diaphragm carburetor for extra power at higher elevations
  • Heavy-duty throttle control provides longer service life
  • Dual air filtration keeps the dirt where it belongs: out of your engine
  • Integrated fuel valve provided for easy starting
  • Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
  • Protective roll cage prevents possible damage on job site
  • Integrated roller and lift handle makes loading and unloading a one-person job
  • Rammer dolly includeD

Technical Specs

Part No.

BT1600H


Engine

Honda GX120


Power Output

3.5hp (2.6kW)


RPM

3600


Fuel Capacity

0.5 GAL (2L)


Starting System

Recoil


Jumping Stroke

2.8" (70mm)


Compaction Force

3530lbf / 15.7kN (1600kgf)


Weight

168lbs (76kg)


Plate Size

11" x 11.8" (280mm x 300mm)
