Lighter-Weight Jumping Jack For Light Compaction Applications

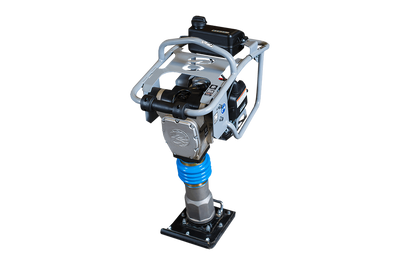

The BT1000 Tamping Rammer offers less compaction force than our standard rammers but still packs a punch. Great for light compaction applications.

Rammer Features

  • Adjustable height operators handle for operator comfort
  • Honda GX100 powered with diaphragm carburetor
  • Heavy-duty throttle control provides longer service life
  • Dual air filtration keeps the dirt where it belongs: out of your engine
  • Integrated fuel valve provided for easy starting
  • Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
  • Protective roll cage prevents possible damage on job site
  • Integrated roller and lift handle makes loading and unloading a one-person job
  • Rammer dolly included

Technical Specs

Part No.

BT1000H


Engine

Honda GX100


Power Output

2.8hp (2.1kW)


RPM

3600


Fuel Capacity

0.5 GAL (2L)


Starting System

Recoil


Jumping Stroke

2.8" (70mm)


Compaction Force

2205lbf / 9.5kN (1000kgf)


Weight

142lbs (64kg)


Plate Size

9.8" x 9.8" (250mm x 250mm)
