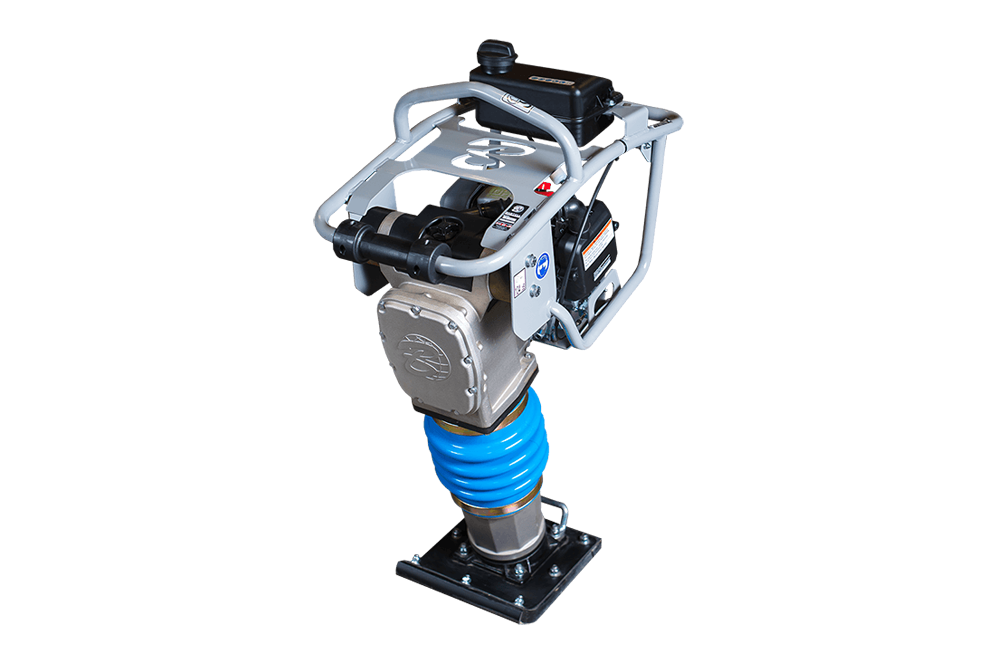

The BT1600 is the heaviest hitting jumping jack offered by Bartell. It offers almost 500 lbs more compaction force than most standard rammers, helping you compact deeper material if needed. With the high-quality construction, this unit is built to stand up to the rigors of your job site day in and out.
For the smallest version of Bartell Rammers check out the BT 1000
Features of Jumping Jack Rammer
- Adjustable height operators handle for operator comfort
- Honda GX120 powered with diaphragm carburetor for extra power at higher elevations
- Heavy-duty throttle control provides longer service life
- Dual air filtration keeps the dirt where it belongs: out of your engine
- Integrated fuel valve provided for easy starting
- Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
- Protective roll cage prevents possible damage on job site
- Integrated roller and lift handle makes loading and unloading a one-person job
- Rammer dolly includeD
Technical Specs
Part No.
BT1600H
Engine
Honda GX120
Power Output
3.5hp (2.6kW)
RPM
3600
Fuel Capacity
0.5 GAL (2L)
Starting System
Recoil
Jumping Stroke
2.8" (70mm)
Compaction Force
3530lbf / 15.7kN (1600kgf)
Weight
168lbs (76kg)
Plate Size
11" x 11.8" (280mm x 300mm)
