MTX70HDR Rammer

Original price $4,785.00 - Original price $4,785.00
Original price
$4,785.00
$4,785.00 - $4,785.00
Current price $4,785.00
SKU MTX70HDR

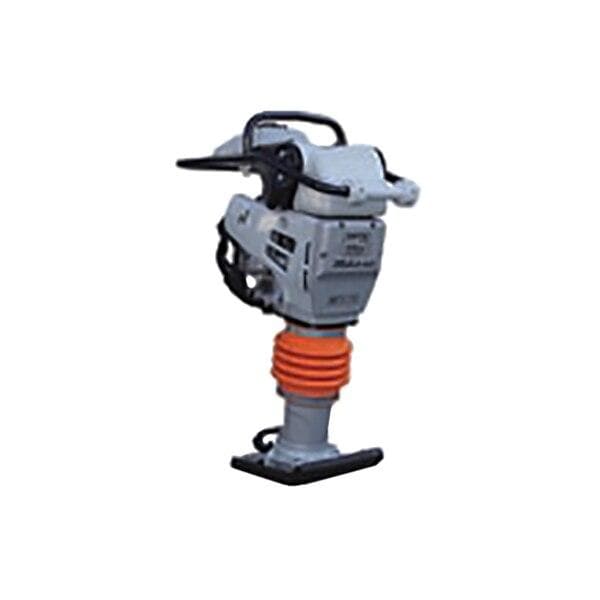

MTX70HDR Rammer for compacting dirt and gravel with up to 3,350 pounds of impact force

Honda GXR120 Engine, 3,350lb impact force, 11.2 in shoe

Multiquip's Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications. MTX70HDR is ideally suited for high altitude settings.

MTX-Series rammers are renowned for performance and ease of operation. The MTX-Series includes the features most
preferred by contractors such as:

  • Cyclonic air cleaners that capture 98% of airborne dust particles
  • Long-lasting laminated wood and steel shoe
  • Low vibration handles for operator comfort
  • Combination hour meter/tachometer
  • Durable guards to protect the engine from damage
  • Redesigned fuel tank to meet EPA standards for evaporative emissions
Unit Specifications
Blows Per Min. Up to 690
Impact Force 3,350 lbf 1520 kgf
Shoe Jump Height 3.1 in 79 mm
Shoe Dimensions (LxW) 13.4 x 11.2 in
340 x 285 mm
Travel Speed Per Min. 55.8 ft 17 m
Fuel Tank Capacity 2.7 qt 2.5 L
Dimensions & Weights
Overall Length 31.0 in 788 mm
Overall Width 13.8 in 350 mm
Overall Height 40.4 in 1027 mm
Operating Weight 165 lb 75 kg
Engine Specifications
Engine Make/Model Honda GXR120
Start Method Recoil
Engine Power 3.6 HP 2.7 kW
Engine RPM 4100
Fuel Type Gasoline

Notice: Features and equipment specifications are subject to change without notice.
