Water Trailer - Single Axle

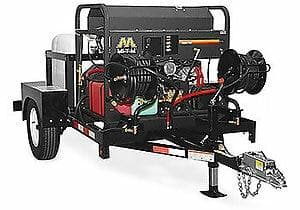

TRAILER ONLY - Single Axle Mobile Pressure Water Trailer

Might have a long lead time - best to call for details.

These customizable mobile pressure washer trailers are rugged, convenient and the perfect solution for on-site cleaning. Pair them with an industrial pressure washer to clean dirt and grime anywhere, anytime.

Features:
·Jack with pad
·2-inch ball hitch
·Rubber mounted sealed lights
·Tanks enclosed in a powder coated steel frame
·Will fit all Mi-T-M belt-driven pressure washers
·1/4-inch solid steel trailer deck plate
·Aluminum treadplate steps for access to water tank

Specifications

Accessories & Options:
·Pressure washers
·Hose reels
·Backflow preventers
·Trailer tank bypass
·Trailer hitches

Models Available:
AW-9000-0005With surge brakes and 200-gallon water tank
AW-9000-0006With electric brakes and 200-gallon water tank
AW-9000-0007With 200-gallon water tank only

High Pressure Hose Reels
These high pressure hose reels include a jumper hose and mounting bracket.
TX-0001(13-inch reel)
TX-0002(16-inch reel)

Low Pressure Hose Reel
These low pressure hose reels include a mounting bracket and plumbing.
TX-0003(16-inch reel for use with AW-9000-0003 and AW-9000-0004 trailers)
TX-0013(16-inch reel for use with AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers)

Replacement Hose Reel Parts
When adding hose reels to the single-axle trailer, use the following jumper and mounting bracket.
15-0159(Jumper hose)
13-0179A01(Mounting bracket)
50-0195(13-inch hose reel, 150-foot maximum hose, rated for units up to 4000-PSI)
50-0196(16-inch hose reel, 200-foot maximum hose, rated for units up to 4000-PSI)

Backflow Preventers
A backflow preventer is required on trailer units in California
TX-0011
·Adds a backflow preventer to trailers that have the TX-0003 and TX-0013 low pressure hose reel option
·Mounts to hose reel
TX-0012
·Adds a backflow preventer to AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers that do not have the TX-0013 low pressure hose reel option
·Mounts to inlet plumbing on trailer

Trailer Tank Bypass
TX-0005(For use on AW-9000-0003 and AW-9000-0004 trailers with a HS Series pressure washer)
TX-0007(For use on AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers with a HS Series pressure washer)
· Removes the float system, while adding the necessary plumbing
· Water bypasses back to water tank

Deluxe Trailer Options
TX-0014 (For use on AW-9000-0003 and AW-9000-0004 trailers with a HS Series pressure washer)
TX-0016 (For use on AW-9000-0005, AW-9000-0006, AW-9000-0007 and AW-9000-0008 trailers with a HS Series pressure washer)
·Adds a ball valve, trailer tank bypass and low pressure hose reel to the trailer

Trailer Hitches
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware.
TX-0009(Adjustable trailer coupler hitch for use with AW-9000-0006 and AW-9000-0007 trailers)
TX-0010(Adjustable trailer coupler hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers)
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball - all to ensure a quick, easy and secure hook-up
TX-0018(Lunette ring hitch for use with AW-9000-0006 and AW-9000-0007 trailers)
TX-0019(Lunette ring hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers)
·3-inch integrated lunette ring for use with pintle hitches
