Vertical Lifter 700 (DC)

Original price $3,502.19 - Original price $3,632.31
Original price
$3,502.19
$3,502.19 - $3,632.31
Current price $3,502.19
SKU:
Choose a Dual Vacuum Options

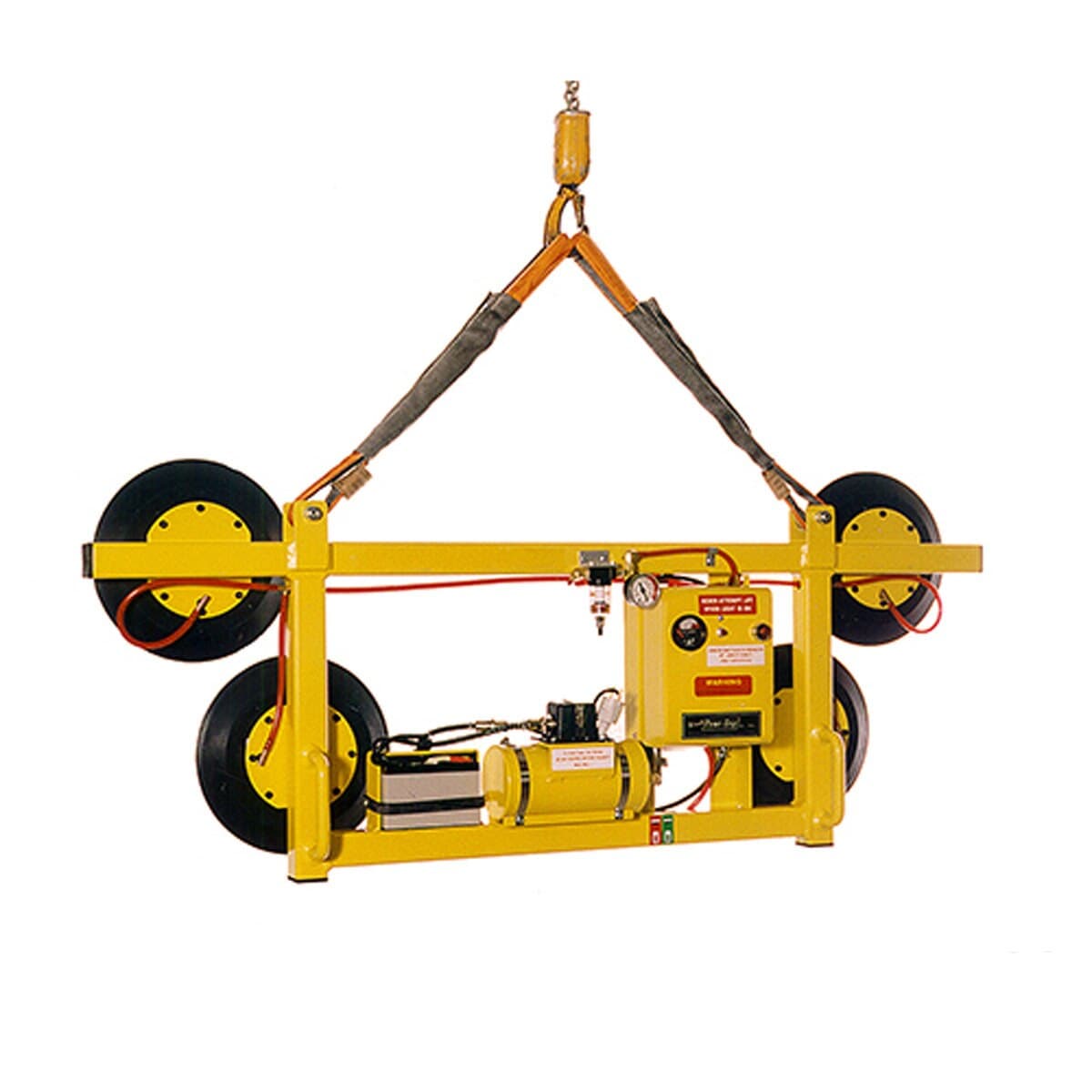

Vertical Vacuum Lifter with a 700 pound lifting capacity

Made When Ordered

This economical vacuum lifter from Wood's Powr-Grip features compact size, relatively high lifting capacity and an on-board power system for use in installations, deliveries or multiple shop locations.

Standard Pad Spread:
23-1/2" x 58" [597 x 1473 mm]

Number / Size of Vacuum Pads:
4 / 11" [28 cm] diameter, lipped pads

Maximum Load Capacity:
700 lbs [320 kg]

Weight of Lifter:
60 lbs [28 kg]

Standard Operating Power:
12 volts DC, 10 amps

Load Movement:
Upright to upright

Standard Features:
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Nylon slings

Load Capacity 700 lbs [320 kg]
Per-Pad Capacity 175 lbs [79 kg]
Pad Model G3370
DC Power Standard
DC Volts 12 VDC
DC Amps 10
Charger Voltage 100/120/240
Charger Hertz 50/60
Charger Phase 1
Weight (DC) 60 lbs
Manipulation Vertical
Max Pad Spread (L) 58"
Min Pad Spread (L) 58"
Max Pad Spread (W) 23.5"
Min Pad Spread (W) 23.5"
Max Height 39.5"
Min Ambient Temp 32° F
Min Load Temp 32° F
Max Ambient Temp 100° F
Max Load Temp 100° F
