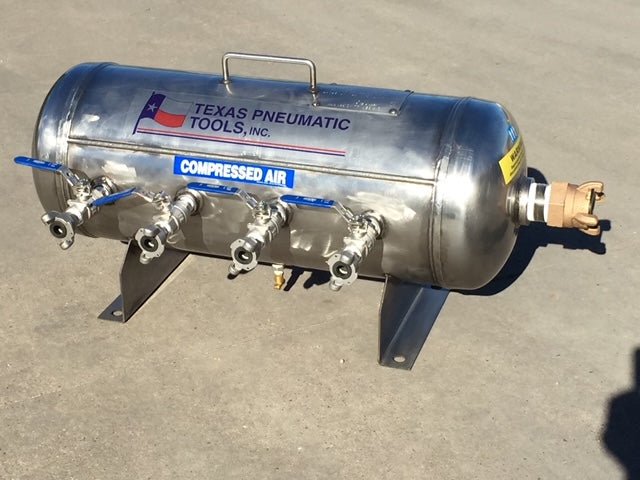

TX-2AMF-SS - Stainless Steel Air Manifold (15 Gallon, ASME Tank)
SKU: TX-2AMF-SS
Stainless Steel Air Manifold (15 Gallon, ASME Tank)
- 15 Gallon Air Manifold (ASME Tank)
- 2″ – 4 Prong (Bull Hose) Inlet Coupling
- 8 outlets w/ 3/4″ Ball Valves & Crow Foot Couplings
- 200 psi Pressure Relief Valve
- Drain Valve on Bottom of Tank
- Pressure Gage w/ Plastic Cover
- Units can be linked together by replacing the square plug with a hose coupling
The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of air to supply various pneumatic tools simultaneously.
Specifications:
- Weight = 73 lbs.
- Height = 18″
- Length = 34.5″
- Tank Diameter = 12″
- Width w/ Fittings = 22″
- Inlet Size = 2″
- Size of Outlets = 3/4″
- Working Pressure = 200 PSI
- Test Pressure = 300 PSI
- Boxed Weight = 84 lbs.
