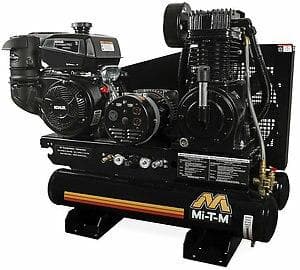

Two Stage Gasoline Compressor and Generator Combination - AG2-SK14-08M1
SKU: AG2-SK14-08M1
8-Gallon Two Stage Gasoline Combination - AG2-SK14-08M1
Increase your productivity by merging two vital pieces of equipment into one versatile machine. Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine. Available in stationary, base-mount or portable. Choose the model that best fits your needs.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles
Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader
*Equipped with 150-PSI maximum rated regulator
Specifications
-
CFM @ 90 PSI
16.4
-
CFM @ 175 PSI*
15.7
-
Alternator Wattage: Max. Output
4000 watts
-
Alternator Wattage: Cont. with Comp. On-Load
2300 watts
-
Alternator Wattage: Cont. with Comp. Off-Load
3500 watts
-
Receptacles
(2) NEMA 5-20R; (1) NEMA L6-20R
-
Displacement/ Engine
429cc Kohler CH440 OHV
-
Compressor
Two Stage
Weights & Dimensions
-
Net Weight
365.00 lbs.
-
Shipping Weight
465.00 lbs.
-
Length
44.00 in.
-
Width
22.00 in.
-
Height
34.00 in.
Options
-
AX-0028 Lifting Hook
For easier portability
-
AX-0071 Electric Start - Battery, Box and Cables Not Included
For easy starting
-
AX-0072 Electric Start - Battery Box and Cables Included, Battery Not Included
For easy starting. **Note: Battery box cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information**
