| Model | TITAN 530 |
|---|---|
| Volume | 0.72 m3 |
| Size | 120x80x75 cm |
| Weight | 260 kg |
Titan 530 Grinding and Polishing Machine
SKU: Titan530
TITAN 530 is a very compact and performing three-phase grinding and polishing machine equipped with a mono-directional fully geared planetary and variable working speed.
Titan 500 Grinder is a slightly small unit and is also available here at the Diamond Tool Store.
COMPACT AND PERFORMING GRINDING AND POLISHING MACHINE WITH ONE WAY ROTATING PLANETARY
TITAN 530 VS is a very compact and performing three-phase grinding and polishing machine equipped with a mono-directional fully geared planetary and variable working speed. It is the ideal machine for large marble, terrazzo, granite and concrete surfaces and for the preparation of industrial floors, bush-hammering, grinding, fast removal of old glues and resins and mirror-polished concrete through the HyperConcrete system.
MAIN FEATURES:
- Single-shell framework, robust and compact for less space.

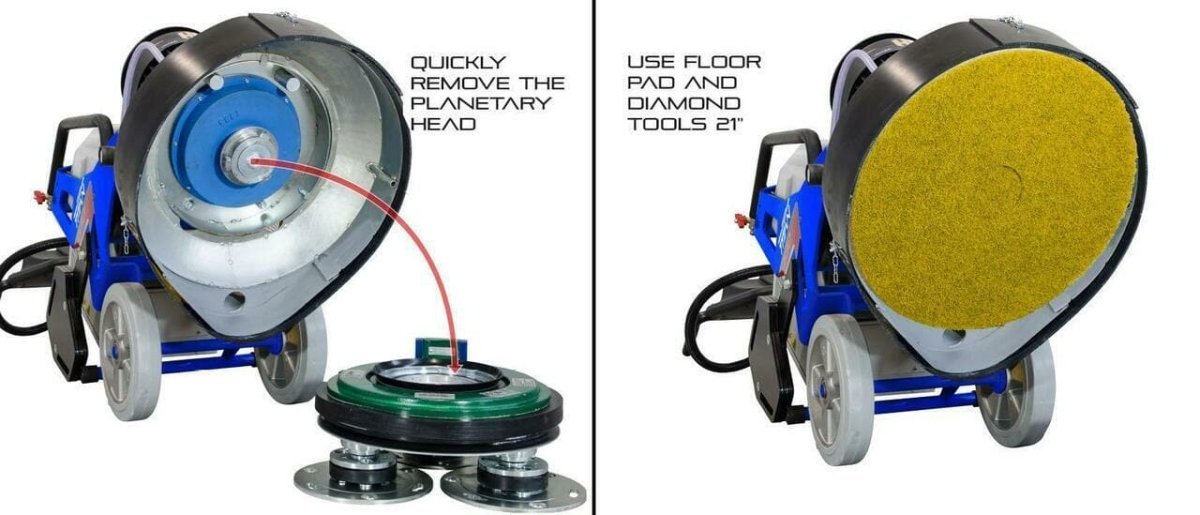

- Easy and quick removal of the planetary that allows the use discs, brushes and 21" tools.
- 180° overturning system for extra weights . Move the weights to the front to gain grinding pressure or to the back to facilitate the tool changes tilting operation (Optional).
- 46 litres water tank.

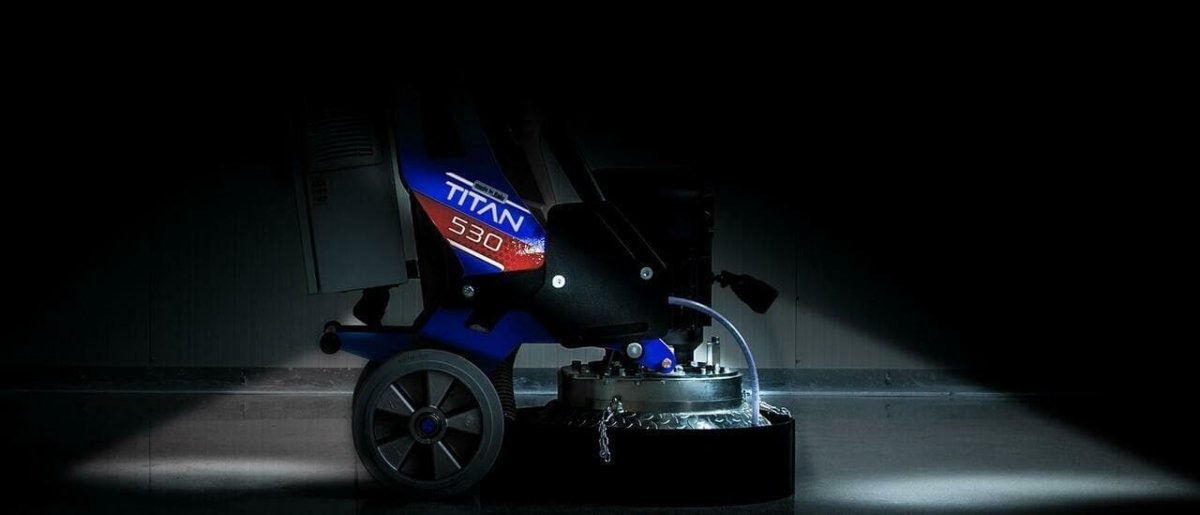

- Powerful front and rear LED spotlights (optional).
- Total mechanical transmission with thermoset gears for maximum reliability and durability.
- 2 Year Warranty: The GUARANTEE for machines equipped with hour meter is up to 2 years or 600 working hours.
| Model | TITAN 530 VS | TITAN 530 VS USA |
|---|---|---|
| Motor | 7 HP | 7.5 HP |
| Drive Inverter | 7.5 kW | 11 kW |
| Volt | 380-480 | 220-1/3 phase |
| Hertz | 50/60 | 50/60 |
| Amp | 16 | 30/20 |
| Tool Speed | 300-1300rpm | 300-1300rpm |
| Work Diameter | 530mm | 530mm |
| Tool Size | 3x240mm/1x530mm | 3x240mm/1x530mm |
| Water tank | 46 lt | 46 lt |
| Size LxAxP cm | 120x100x55 | 120x100x55 |
| Weight | 242 Kg | 242 Kg |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 10-15 m2/h |
| Concrete Grinding 1 step | 40-80 m2/h |
| Terrazzo Polishing 5 step | 9-15 m2/h |
| Resin Removal 1 step | 40-60 m2/h |
| Paint Removal 1 step | 40-60 m2/h |
| Marble Polishing 5 step | 10-15 m2/h |
| Granite Polishing 7 step | 6-10 m2/h |
