Tilt Wall Form Bracket
SKU: TWFB-05

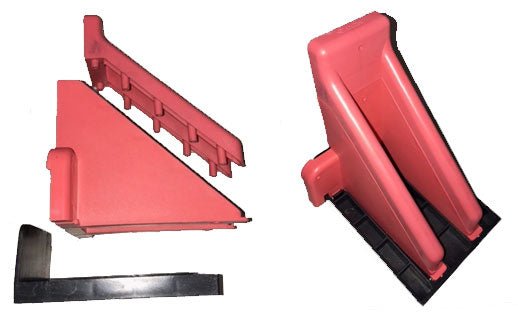

The Tilt Wall Form Bracket is a polymer composite bracket designed to support tilt-up form boards and act as a kicker bracket on bridge decks for screed rail forming.
Features
- Patented design includes a 2" insert those snaps into the 5" bracket to create a 7" bracket.
- No need for dual inventories of 5" and 7" brackets, just buy the 2" insert as needed to convert the 5" to the 7".
- Dual spine design provides added strength and durability.
- Shoe comes with adhesive strip for superior hold on the job.
| OCM Part No. | Description | Box Qty |
|---|---|---|
| TWFB-05 | Polymer Composite 5" Bracket only, shoe sold separately | 50 |
| TWFB-07EXT | Polymer Composite Extension 2", used with TWFB-05 to make 7" bracket | 100 |
| TWFB-SHOE | One time use Polymer Composite Shoe for TWFB-05, adhesive pad, w/ nail holes | 100 |
