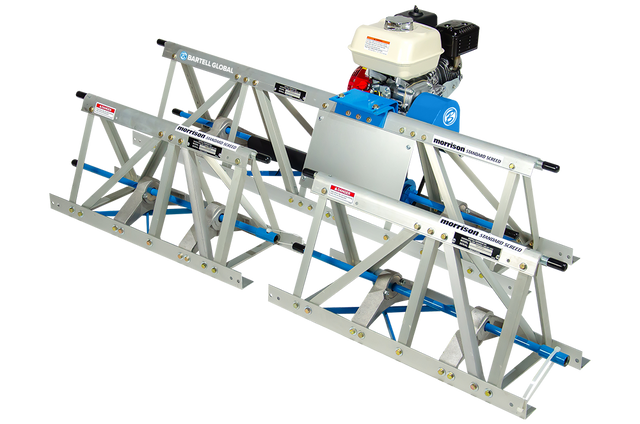

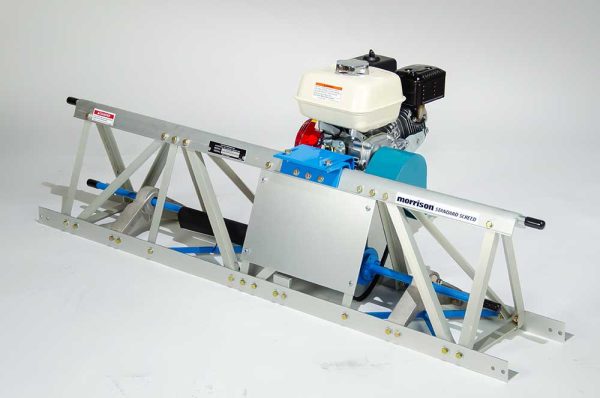

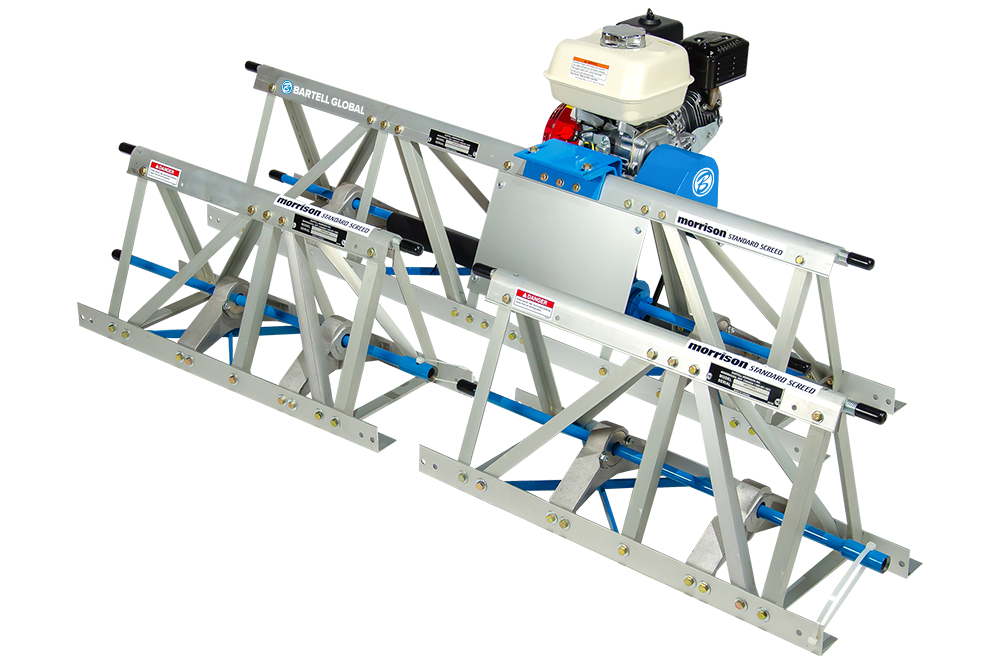

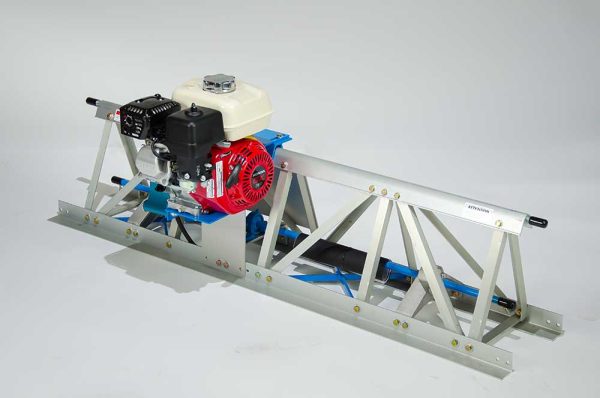

Standard Vibratory Screeds

Original price $205.00 - Original price $4,635.00
Original price
$205.00
$205.00 - $4,635.00
Current price $205.00
SKU:
Choose a Super Vibratory Screed Options

You don't need the weight to get industry leading consolidation

Precision Wet Concrete Screed Tools

High frequency vibrations distributed evenly across entire aluminum screed length to produce smooth, uniform surfaces quickly and easily

Capable of consolidating and condensing concrete with slumps of less than 2". Up to 14, 000 vibrations per minute to perform 25% faster than competitive screeds on either high or low slump concrete

Powered by highly efficient Honda engines that burn less than 1 gallon (3.8L) in an 8 hour day

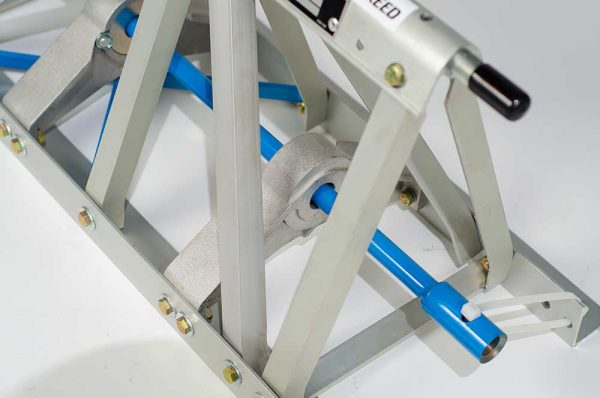

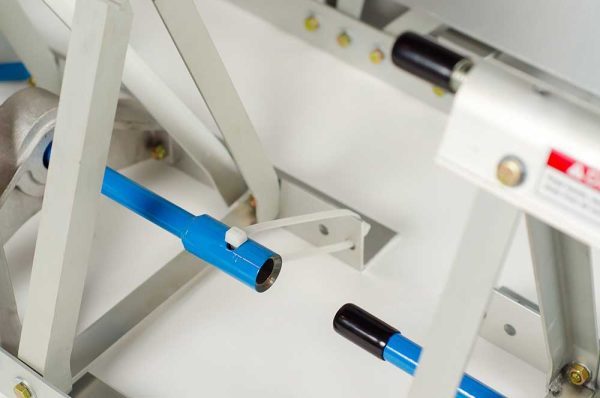

Vibrations are distributed through a rotating shaft that oscillates inside durable bearing housings

Use with any forms - metal, wood, screed pipe or concrete block. Capable of checker-boarding from adjacent concrete surfaces

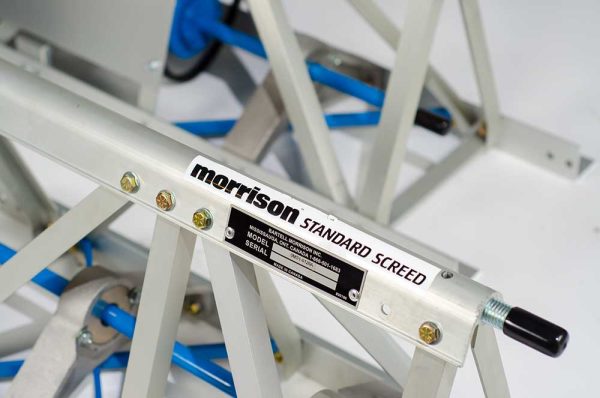

Turnbuckles located along entire length to make it easy to adjust for crowns, valleys or flat surfaces. Adjustments can be made up to 1/4" per foot and jam nuts lock it firmly in place to meet demanding "F" floor specifications

Light weight aluminum/magnesium frame provides exceptional strength and durability

Bolted construction throughout - no welds to break, no need for special tools. Parts can be easily replaced on the jobsite if necessary

Extended turnbuckles allow screed to be inverted 1/2" per ft. (12.7mm/m versus standard 1/4" (6.4mm)

Quick change bearings

Options

Transportation cart

Curb forming end adapters

Bridge parapet adapter

Hand winch

Carry handles Self-propelled ends Steel blades available

Specification Standard Screed

Height

13.5" (342.9mm)

Width

12.125" (307.98mm)

Weight
10' Base Section 5' Section 2.5' Section 10' Section

10 lb per foot

79 lb (35.87kg)

45 lb (20.43kg)

23 lb (10.44kg)

78 lb (35.41kg)

Motor w/Mount

53 lb (24.06kg)

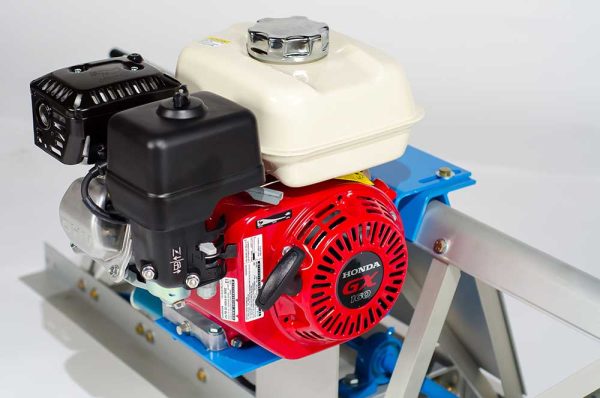

Engine

Honda GX160

Maximum Recommended Span

45' (13.7m)

Average Peak Vibration

12 830 vpm

Maximum Compaction Depth

12" (304.8mm)

Specification Super Screed

Height

19.5" (495.3mm)

Width

14.625" (371.48mm)

Weight
10' Base Section 5' Section 2.5' Section 10' Section

15 lb per foot

94 lb (42.68kg)

46 lb (20.88kg)

23 lb (10.44kg)

91 lb 41.31kg)

Motor w/Mount

70 lb (31.73kg)

Engine

Honda GX270

Maximum Recommended Span

80' (24.4m)

Average Peak Vibration

14 000 vpm

Maximum Compaction Depth

12" (304.8mm)
