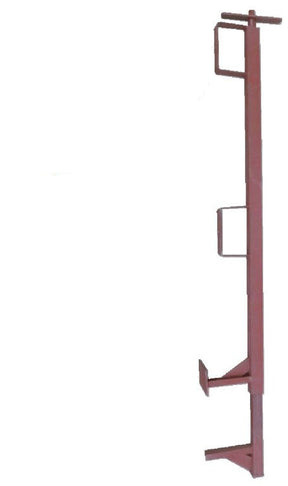

Standard Slab Grabber
SKU: OCM-GRP-STD
OCM, Inc's Standard Slab Grabbers are used as guardrails that are fast, easy, and affordable. Capable of withstanding at least 200 lbs.
The Standard Slab Grabber meets FEDERAL OSHA 1926 502(B)(3) requirements.
Features
- Quick adjust handle and rugged steel construction for fast attachment and a positive grip on the slab
- Adjustable for use on up to 36" slabs
- Installation requires 20 ft/lbs. of torque to secure Slab Grabber to slab edge
- Plate to mount toe board when required or when surface slope is more than 4/12 (vertical/horizontal) and if there is a risk of any type of work material to fall to a lower level
- Maximum spacing of 8 ft per OSHA spec
- Height from top of slab to top of rail is 46"
- Meets FEDERAL OSHA 1926 502(B)(3) requirements.
- Capable of withstanding at least 200 lbs. applied within 2" of the top edge, in any downward direction, at any point along the top edge.
| OCM Part No. | Description | Weight lbs. | Skid |
|---|---|---|---|
| OCM-GRP-STD | Guard Rail Post Bracket - Standard Duty Primer Painted | 22.00 | 200 |
*WARNING: Rail Post must be secured to deck with proper fasteners to ensure safety.
*WARNING: Use of equipment for unintended applications could result in serious injury or death.
NEVER make any connections to guardrail system.
*WARNING: NEVER lean or climb on guardrail systems.
