Stackable Bar Cradles
SKU: CRAD-25

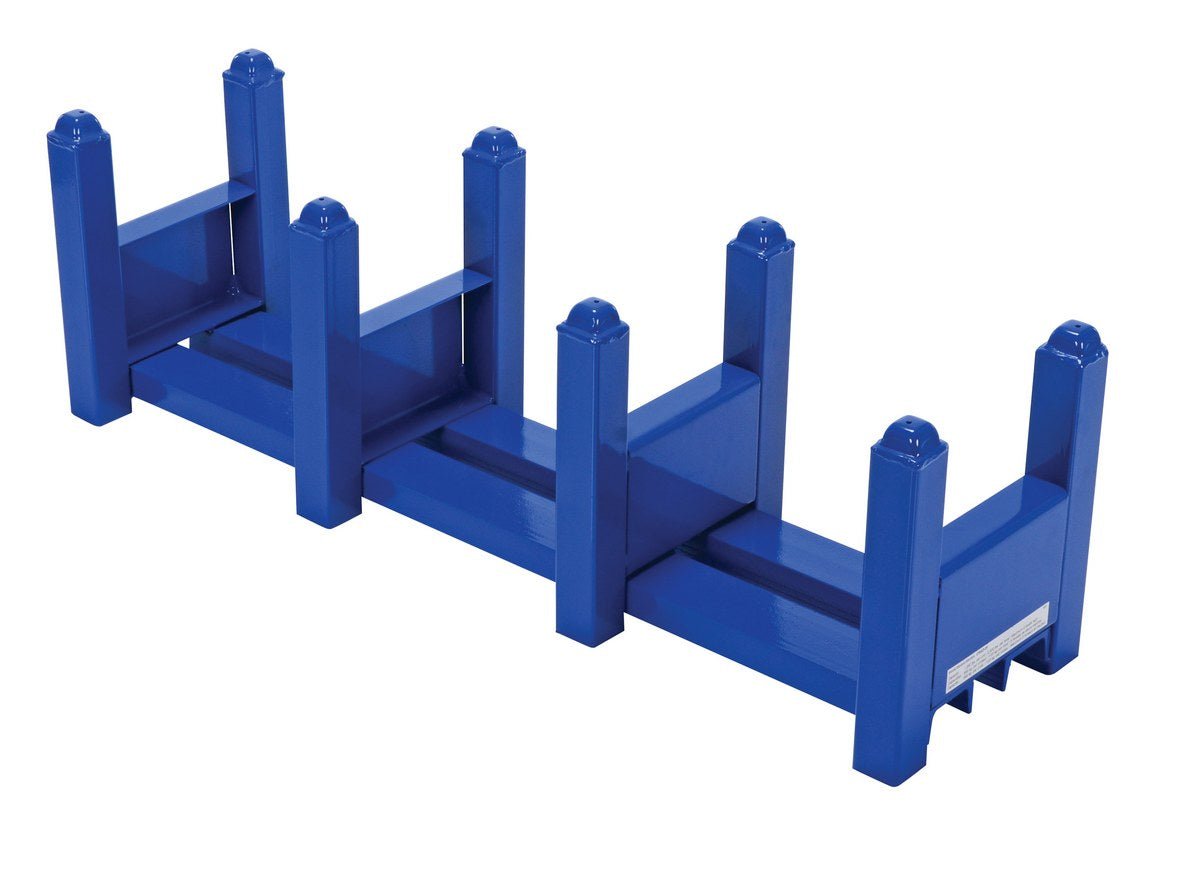

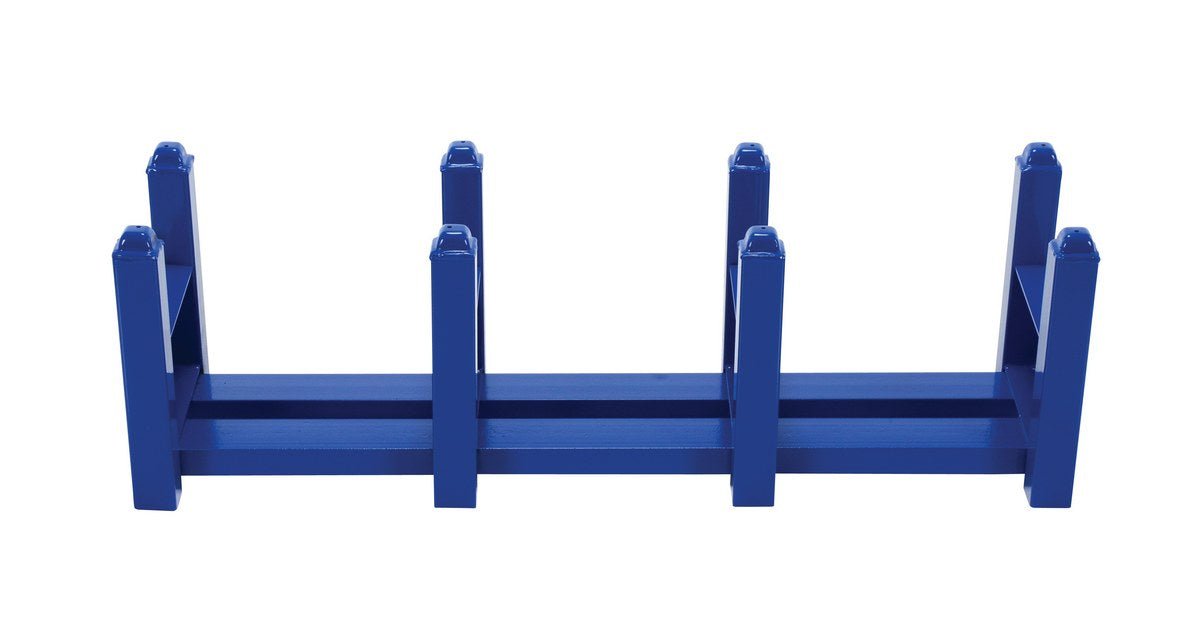

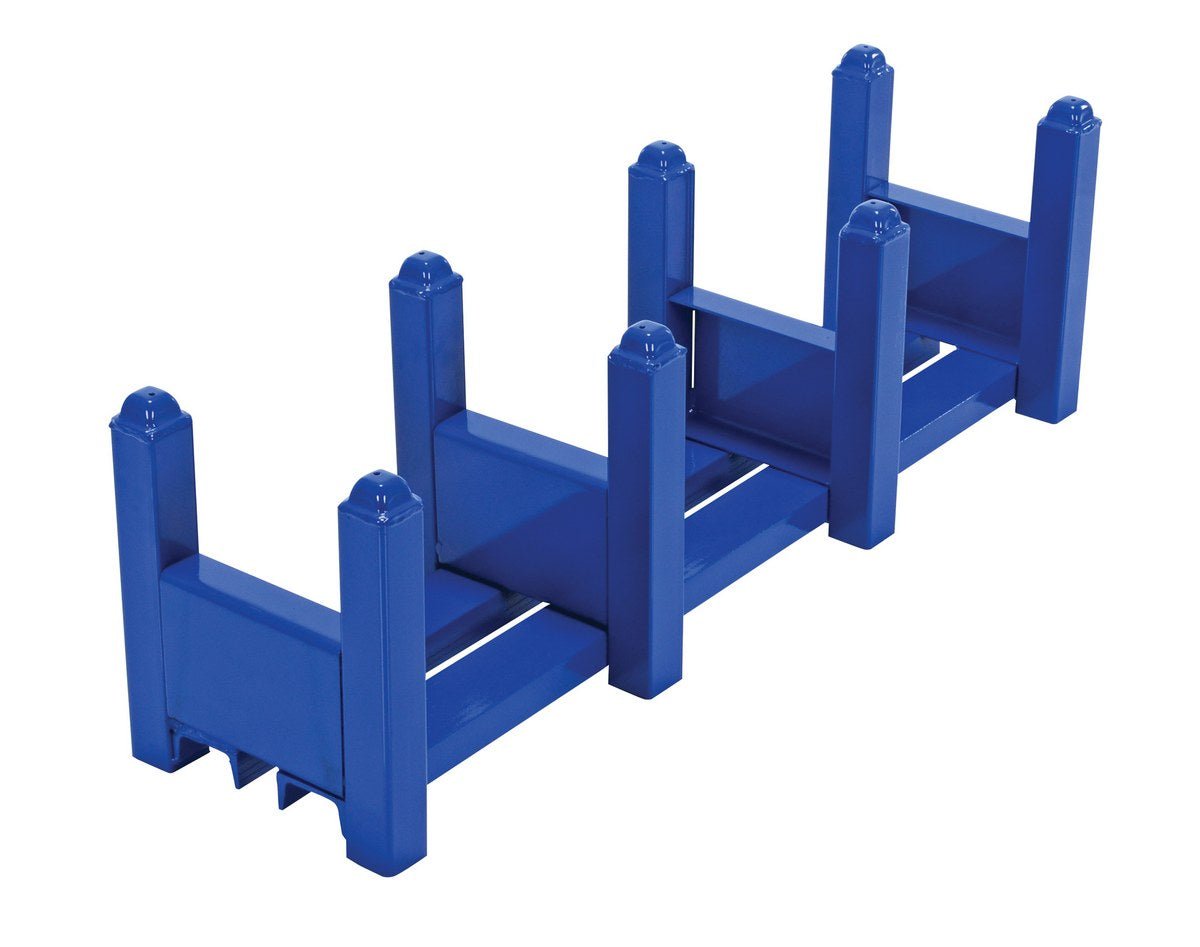

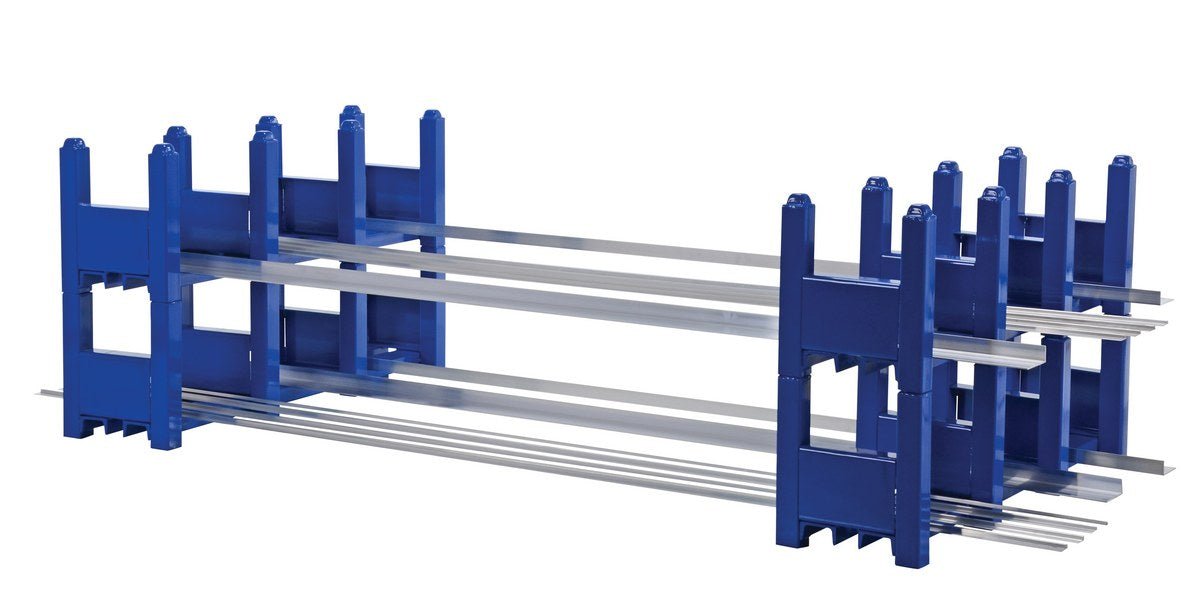

These sturdy, welded steel racks are strong enough to handle heavy loads yet light enough to be set up by one person.

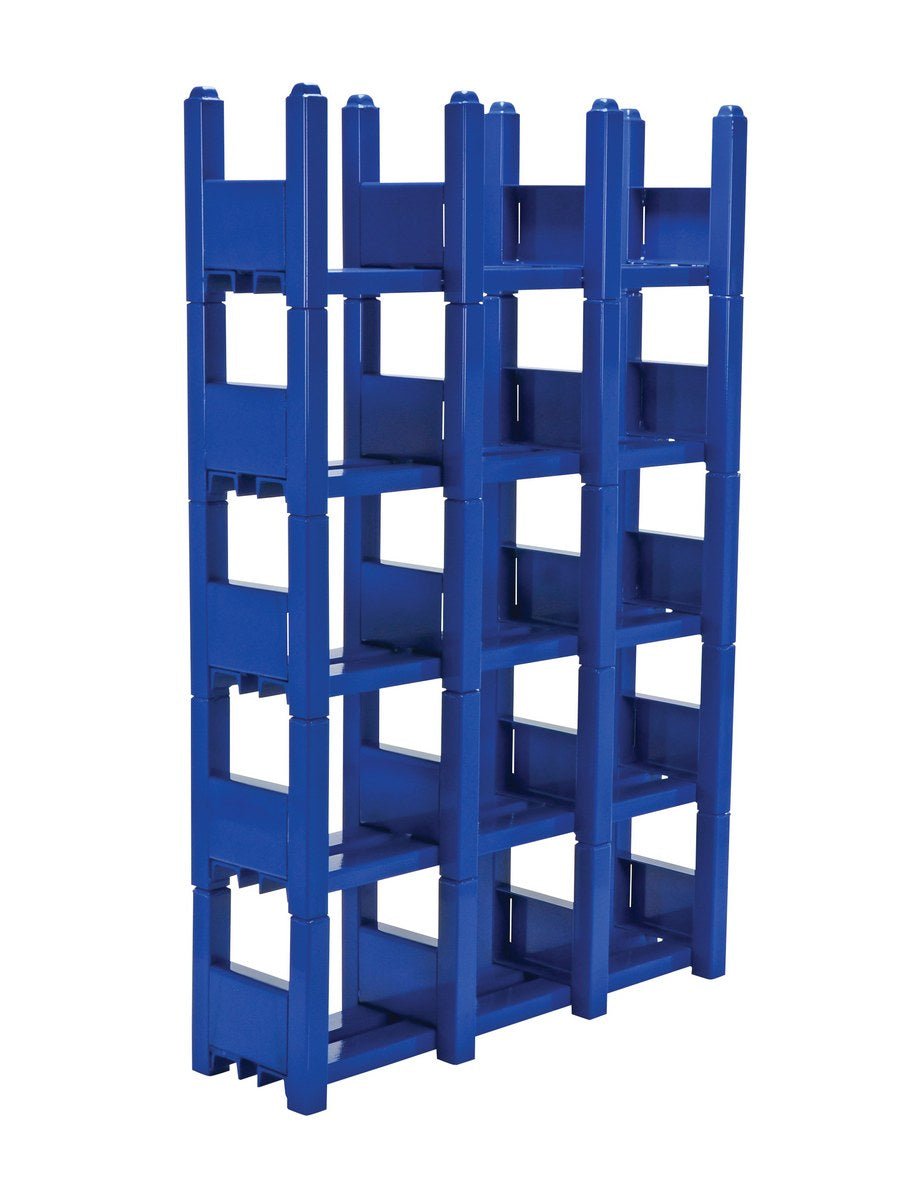

Stackable up to five units high. Allows for custom design by choosing length, depth and height of individual storage systems. Welded steel construction with blue painted surface. Units are sold each.
| Stackable Bar Cradles | |||||||
| Model | Image | PDF's | Overall Size (WxDxH) |
Inside Size (WxDxH) |
Uniform Capacity/ Each (lbs) |
Uniform Capacity/ Pair (lbs) |
Wt. (lbs) |
| CRAD-25 |  |

|
12"x16"x14" | 8"x12"x10-5/8" | 1,250 | 2,500 | 31 |
| CRAD-25-30 |  |
|
12"x30"x14" | 8"x12"x10-5/8" | 1,250 | 2,500 | 78 |
| CRAD-25-44 |  |
|
12"x44"x14" | 8"x12"x10-5/8" | 1,250 | 2,500 | 107 |
| CRAD-25-58 |  |
|
12"x58"x14" | 8"x12"x10-5/8" | 1,250 | 2,500 | 127 |
| CRAD-25-72 |  |
|
12"x72"x14" | 8"x12"x10-5/8" | 1,250 | 2,500 | 146 |
| CRAD-37 |  |
|
14"x19"x18" | 10"x15"x14-5/8" | 1,850 | 3,700 | 37 |
| CRAD-56 |  |
|
15"x22"x21" | 11"x18"x17-5/8" | 2,800 | 5,600 | 43 |
| CRAD-75 |  |
|
16"x26"x24" | 12"x22"x20-1/2" | 3,750 | 7,500 | 46 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
