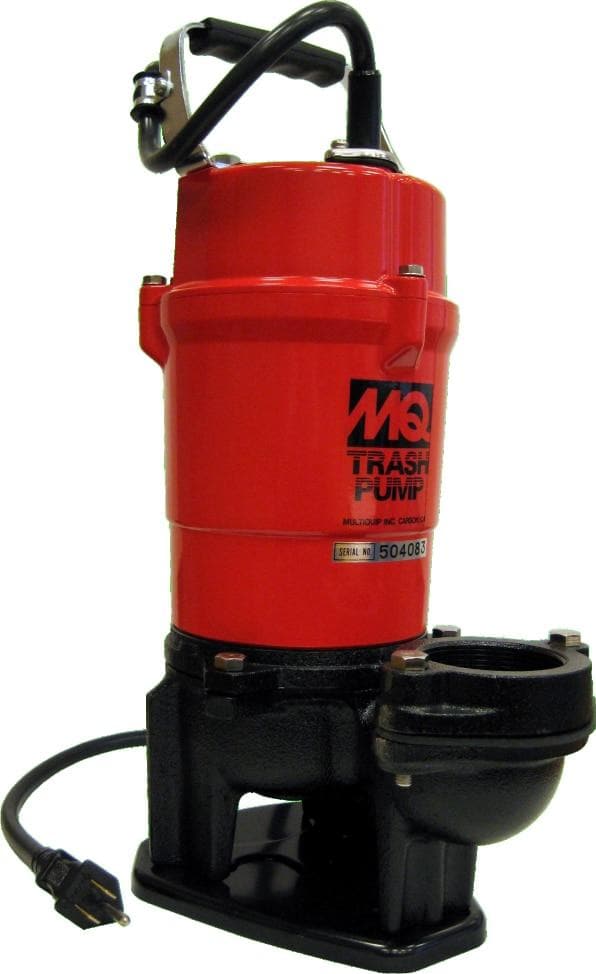

ST2040T Submersible Trash Pump
SKU: ST2040T
ST2040T Submersible Trash Pump 2 Inch Discharge, 115V 1Ø, 1.0 HP, 79 GPM, 40 ft Total Head
This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1" solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller with Neoprene Rubber overlay tackles tough dewatering applications and heavy usage operations. Further, the ST2040T incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 25' Power Cable with strain relief. Model ST2040TF is avaiable that provides a tethered industrial mechanical float switch assembly.
- 1.0HP, 115V/6.5A, 1Ø, UL & CUL Listed Electric Motor.
- Built-in Overload Protection.
- 2" (NPT) Female Discharge.
- Total Head: 40 ft.
- MAX Capacity: 79 gpm.
- Pumps Liquid Up To 120° F.
- Heavy-duty Cast Iron Housing construction.
- Dewaters Flat Surfaces Up To 2" Levels.
| Impeller Type |
Neoprene Rubber over Cast-Iron |
|
| Impeller Disc Size | 2 in | 51 mm |
| Total Head | 40 ft | 12.2 m |
| Water Capacity | 79 gpm | 299 lpm |
| Max. Solid Intake | 1 in | 25.4 mm |
| Power | 1 HP | 0.75 kW |
| Phase | Single | |
| Voltage | 115 V | |
| Starting Amperage | 34 A | |
| Running Amperage | 6.8 A | |
| Cable Length | 25 ft | 7.6 m |
| Pump Diameter | 10.3 in | 26.7 mm |
| Overall Height | 16.8 in | 427 mm |
| Operating Weight | 34 lb | 15.4 kg |
Notice: Features and equipment specifications are subject to change without notice.
