Skid Steer Bucket for General Purpose

SKU# 108090

$1,146⁰⁰

Shipping calculated at checkout.

Size

60" 66" 72" 78" 84"

Options

Low Profile - Smooth Low Profile - Tooth Low Profile - Long Bottom Smooth Low Profile - Long Bottom Tooth

Product variants

Safe & Secure Payments.

Finance this product with NewLane Logo

Apply Now

Finance this product with PEAC Solutions Logo

Apply Now

Unsure which financing plan suits you? Discover your options here.

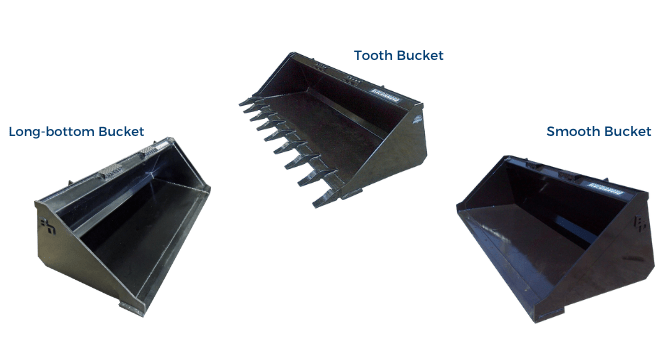

The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations.

We offer weld-on cutting edge, bolt-on cutting edge, teeth, toothbar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.

*Not recommended for track machines.

Features

Low profile: 20″ high, 29″ deep
Low profile, long bottom: 20″ high, 39″ deep
3/16″ wrap
3/4″ cutting edge

PART NUMBER	MODEL	STRUCK CAPACITY	WEIGHT
108090	60" Low Profile-Smooth	10.8 cu ft	334 lbs
108095	60" Low Profile-Tooth	10.8 cu ft	384 lbs
108100	66" Low Profile-Smooth	12.2 cu ft	354 lbs
108105	66" Low Profile-Tooth	12.2 cu ft	409 lbs
108110	72" Low Profile-Smooth	13.2 cu ft	378 lbs
108115	72" Low Profile-Tooth	13.2 cu ft	437 lbs
108120	78" Low Profile-Smooth	14.3 cu ft	408 lbs
108125	78" Low Profile-Tooth	14.3 cu ft	460 lbs
108130	84" Low Profile-Smooth	15.7 cu ft	436 lbs
108135	84" Low Profile-Tooth	15.7 cu ft	515 lbs
108140	60" Low Profile-Long Bottom-Smooth	15.7 cu ft	385 lbs
108145	60" Low Profile-Long Bottom-Tooth	15.7 cu ft	434 lbs
108150	66" Low Profile-Long Bottom-Smooth	17.3 cu ft	426 lbs
108155	66" Low Profile-Long Bottom-Tooth	17.3 cu ft	472 lbs
108160	72" Low Profile-Long Bottom-Smooth	18.6 cu ft	446 lbs
108165	72" Low Profile-Long Bottom-Tooth	18.6 cu ft	505 lbs
108170	78" Low Profile-Long Bottom-Smooth	20 cu ft	441 lbs
108180	84" Low Profile-Long Bottom-Smooth	22 cu ft	505 lbs
