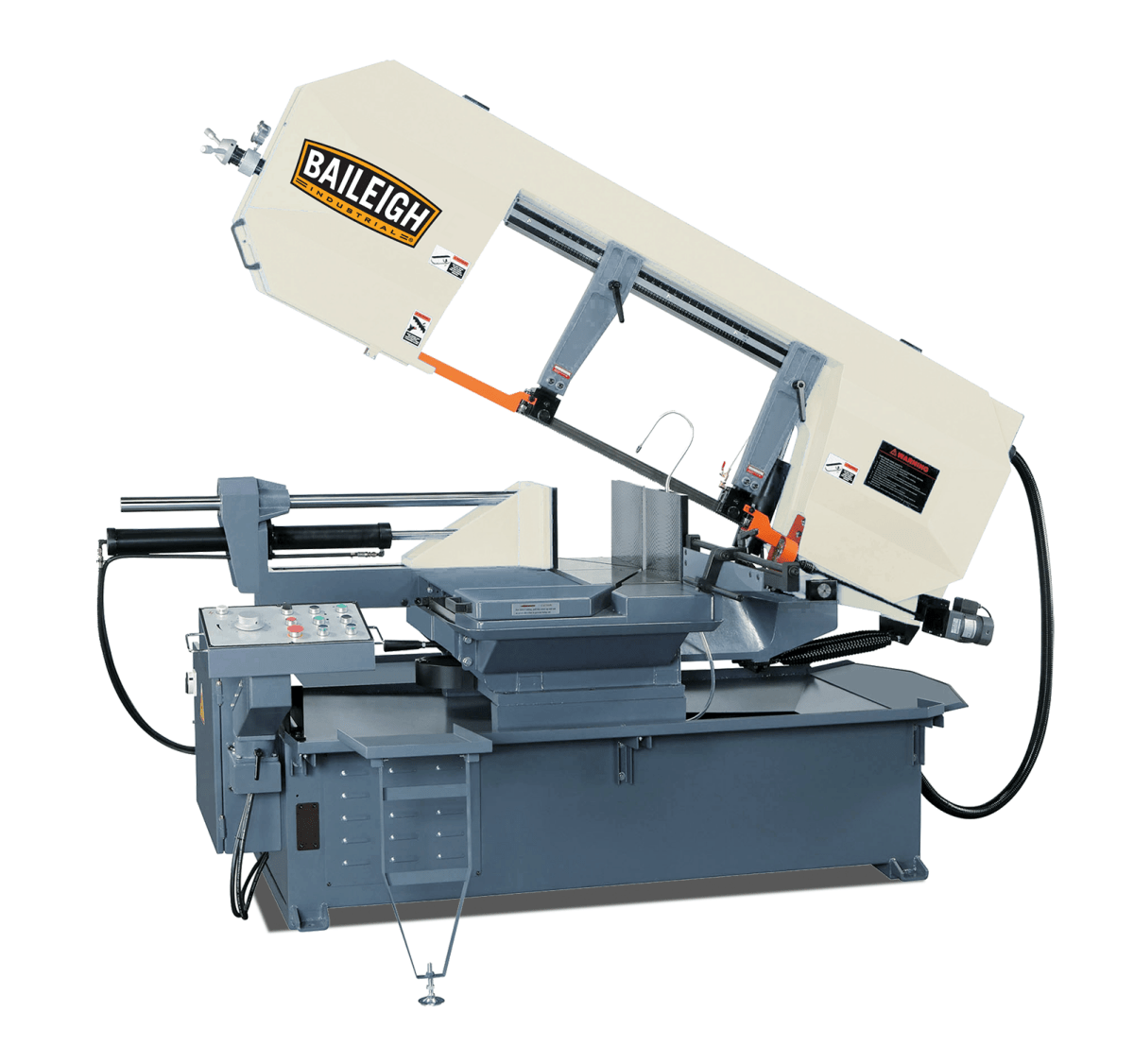

Semi-Automatic Dual Mitering Horizontal Band Saw BS-24SA-DM
SKU: BA9-1001389
This dual-mitering band saw doesn’t sacrifice on capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production.
- Cuts 18” round or 15” x 24” rectangle at 90°.
- Swivel head miters 60° left and right.
- Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
- 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
- Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
- Runs on 220-volt 3-phase power for reliability.
- Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.
- Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
- Industrial-grade hydraulics open and close the quick-lock vise.
- Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
- You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.

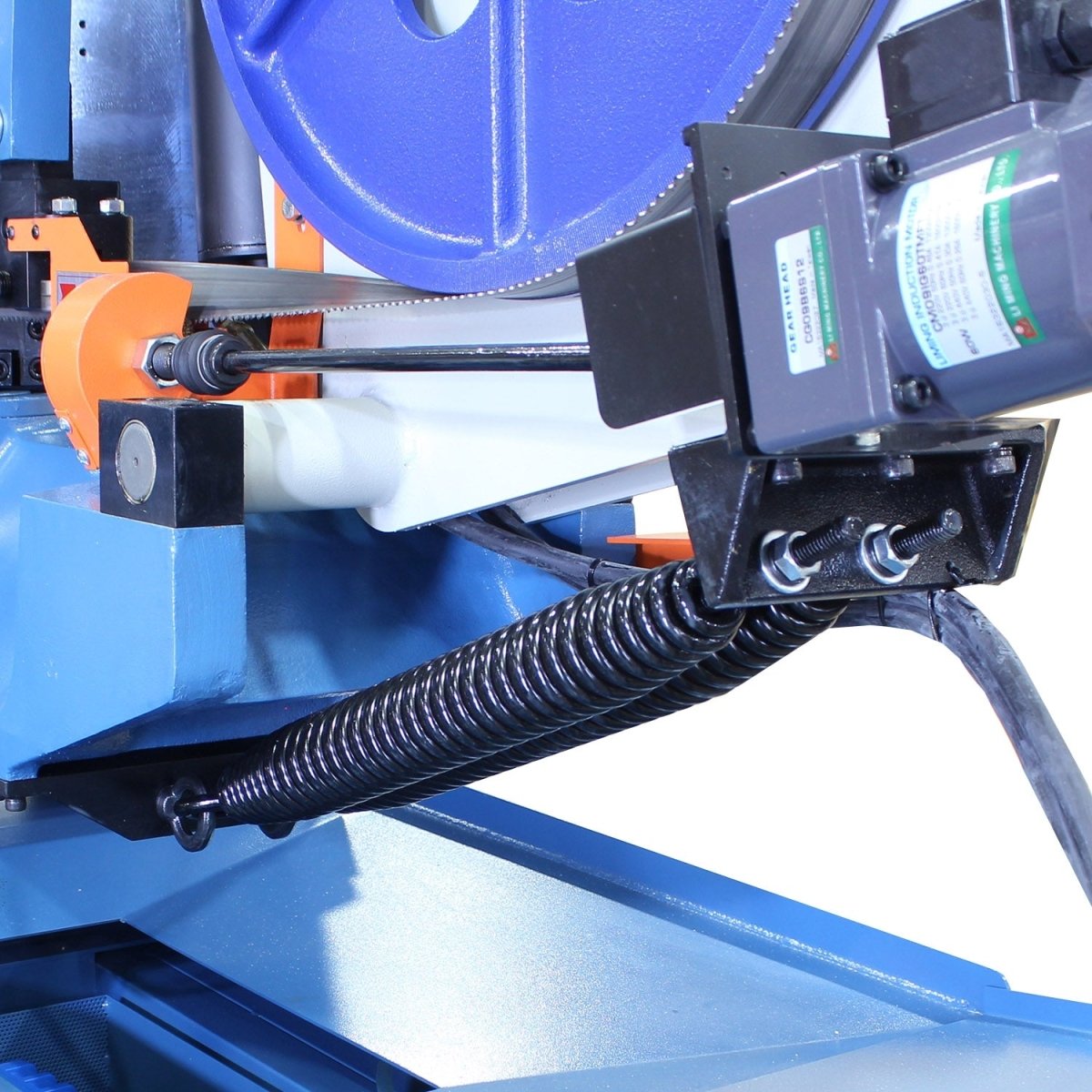

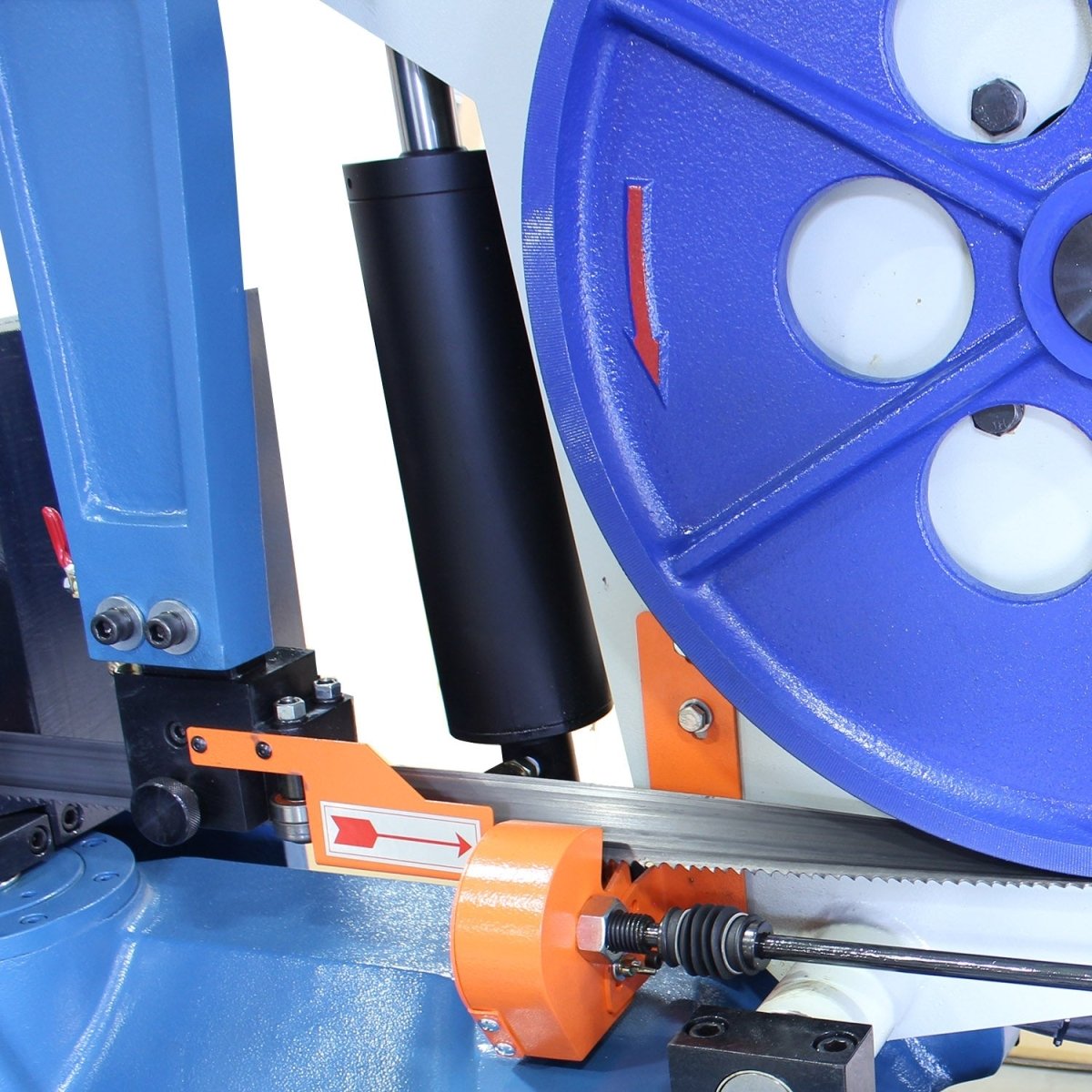

- Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
- Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
- Flood coolant system washes away metal chips and helps prolong blade life.
- We typically keep all replacement parts in stock for fast deliveries.
- Covered by a 1-year parts warranty.
| Item Number | BS-24SA-DM |
|---|---|
| Country of Manufacture | Taiwan |
| Return | Hydraulic |
| Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle | 0 - 60° Left and Right |
| Motor | 5 hp |
| Capacity Round 90° | 18.1" |
| Capacity Square 90° | 18.1" |
| Capacity Rectangle 90° | 17" x 24" |
| Capacity Round 45° | 17.5" |
| Capacity Round 90°/ 45° / 60° | 18" x 17.5" x 11" |
| Table Height | 31.5" |
| Blade Guide | Carbide x Roller |
| Blade Size | 1.5" x .051" x 209.84" |
| Blade Speed (fpm) | 106 - 317 |
| Descent Control | Pressure Assist Hydraulic |
| Drive | Belt x Pulley |
| Power | 220 Volt Three Phase |
| Shipping Weight | 3550lbs |
| Shipping Dimensions (Inches) | 111x45x74 |
* specifications subject to change without notice.
