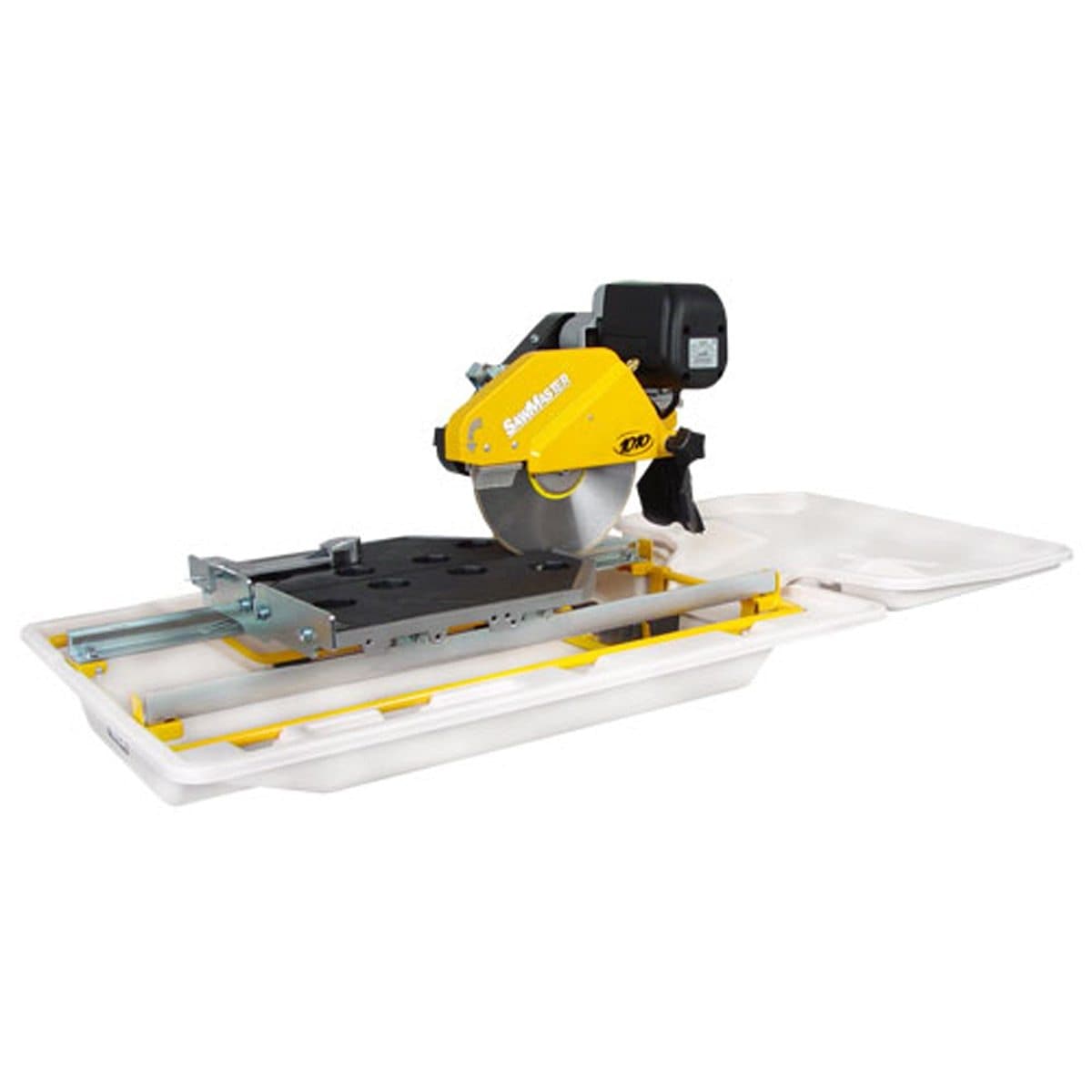

SawMaster SDT-1010 Wet Tile Saw designed to be lightweight but still have capacity to cut 24 inch tiles

The SDT-1010 is designed to fulfill the need for a powerful, yet lightweight tile saw capable of cutting large 24" tiles. Its potent 2 HP motor generates an immense amount of torque to enhance cutting performance. To minimize its weight, the saw relies on a highly durable yet lightweight ABS water tray for structure and support while retaining a rigid steel frame to provide the necessary strength and stability.

---

Features

ABS Water Tray

The provided ABS water tray is durable, yet lightweight, which helps minimize the saw's overall weight.

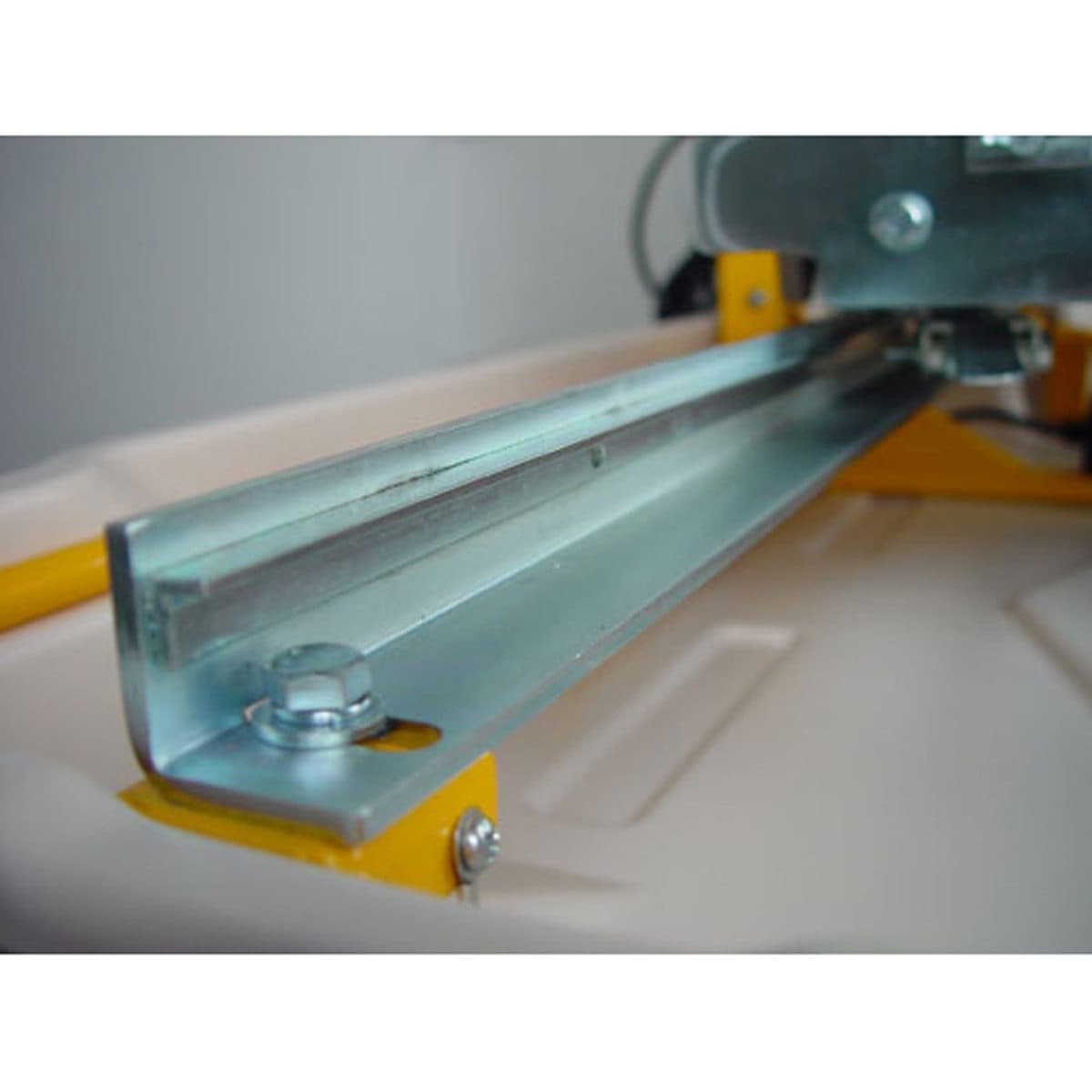

Extended Cutting Height

Revolutionary track system permits the cutting table to reach beyond the end of the track to achieve a longer cutting length without the added bulk or weight of a larger frame.

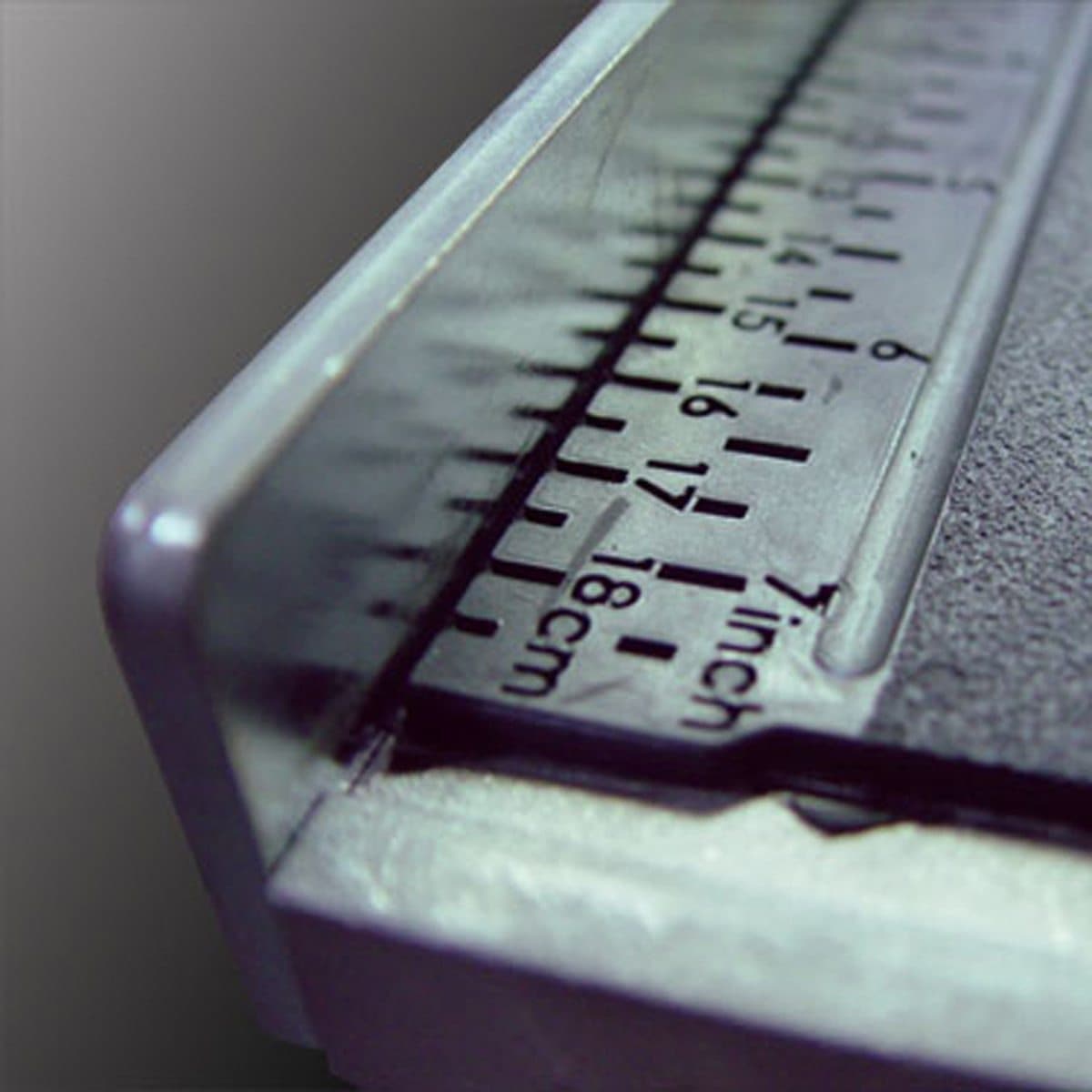

Ruler Guide

The cutting table features a convenient imprinted ruler on the rubber mat to assist the operator in making precise cuts.

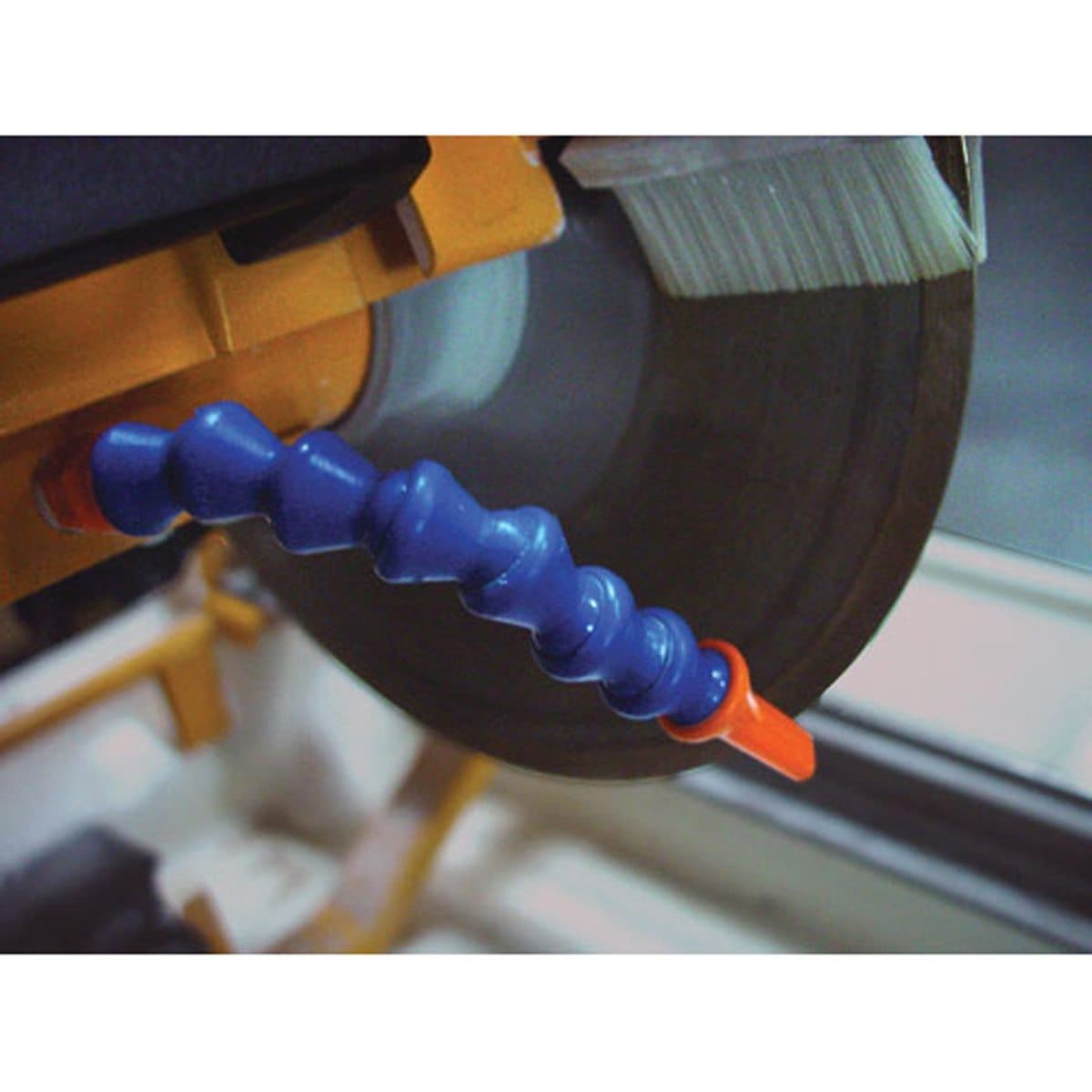

Adjustable Water Feed

Water feed can be adjusted to direct water flow to the blade rim for improved cooling efficiency.

LCBH

The patented LCBH (Liquid Cooled Bearing Housing) works with the water pump to cool down the bearing housing during saw operation, which increases the service life of the bearings even under heavy loads.

Extended Drip Tray

Drip tray returns water spray and runoff produced during operation to the water tray to minimize the loss of water and to keep the work site clean

Side Extension Table

The optional aluminum extension table provides additional lateral support when working with larger tiles.

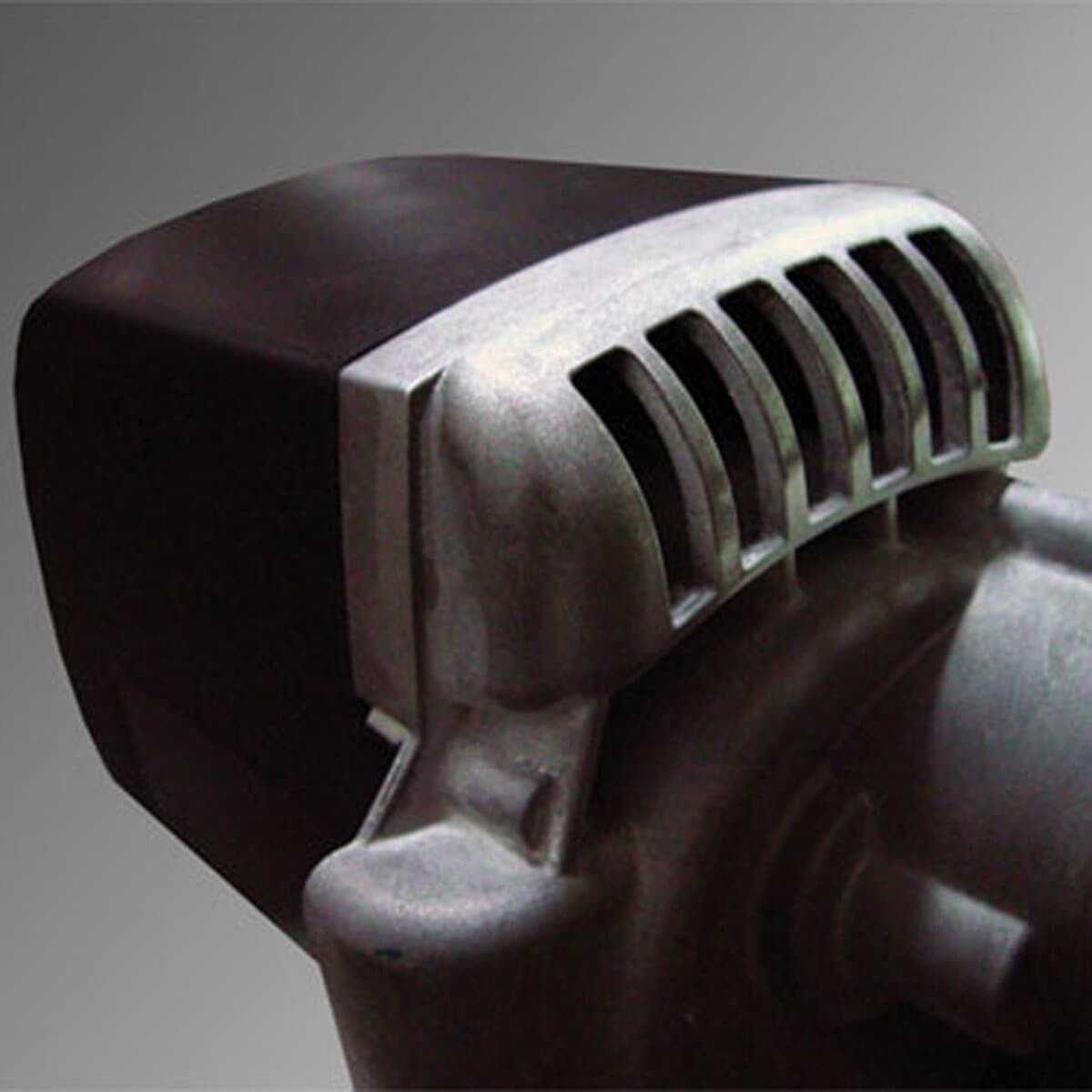

Carbon Brush Motor

The equipped carbon brush motor generates a tremendous amount of torque, surpassing that of a comparably rated induction motor. At the same time, it is also lighter and smaller, which makes it ideal for portability.

---

Specifications

Saw Type	Tile
Motor	115 V/60 Hz
Horsepower	2 HP
Blade Capacity	7" - 10"
Blade Arbor	5/8"
RPM	3000
Weight	65 lbs
Cutting Depth	3 1/2"
Rip Cutting	24"
Diagonal Cutting	16" x 16"
ABS Water Tray	Equipped
Thermal Protection	Equipped
LCBH	Equipped

Recommend Using...

• Blade CR1080C(10" Cheetah Series Specialty Wet Tile Blades)
• Stand SDT-1010ST
