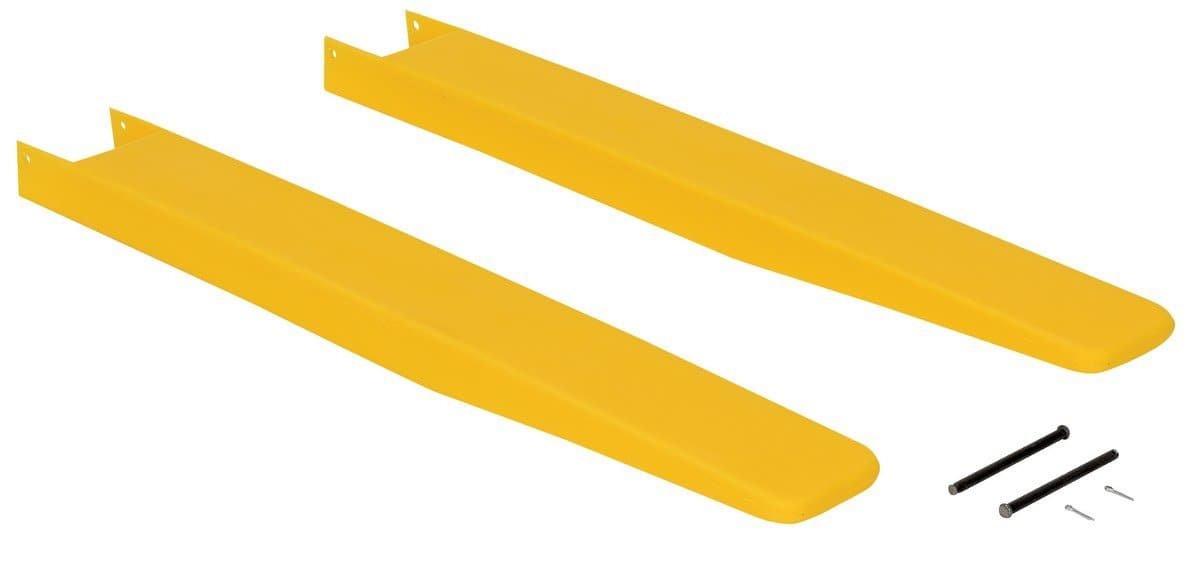

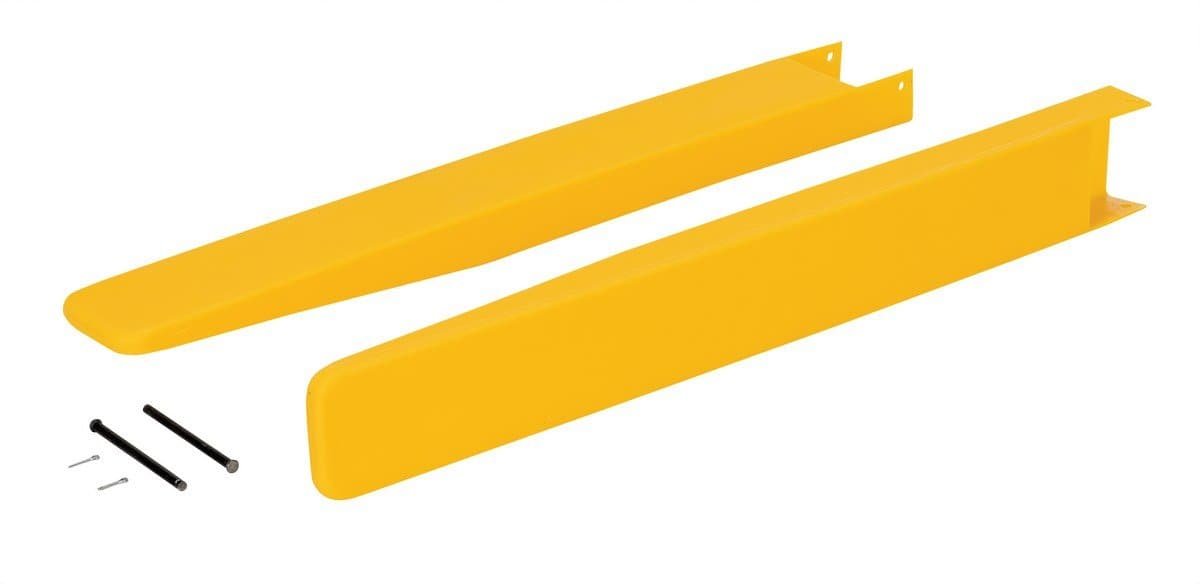

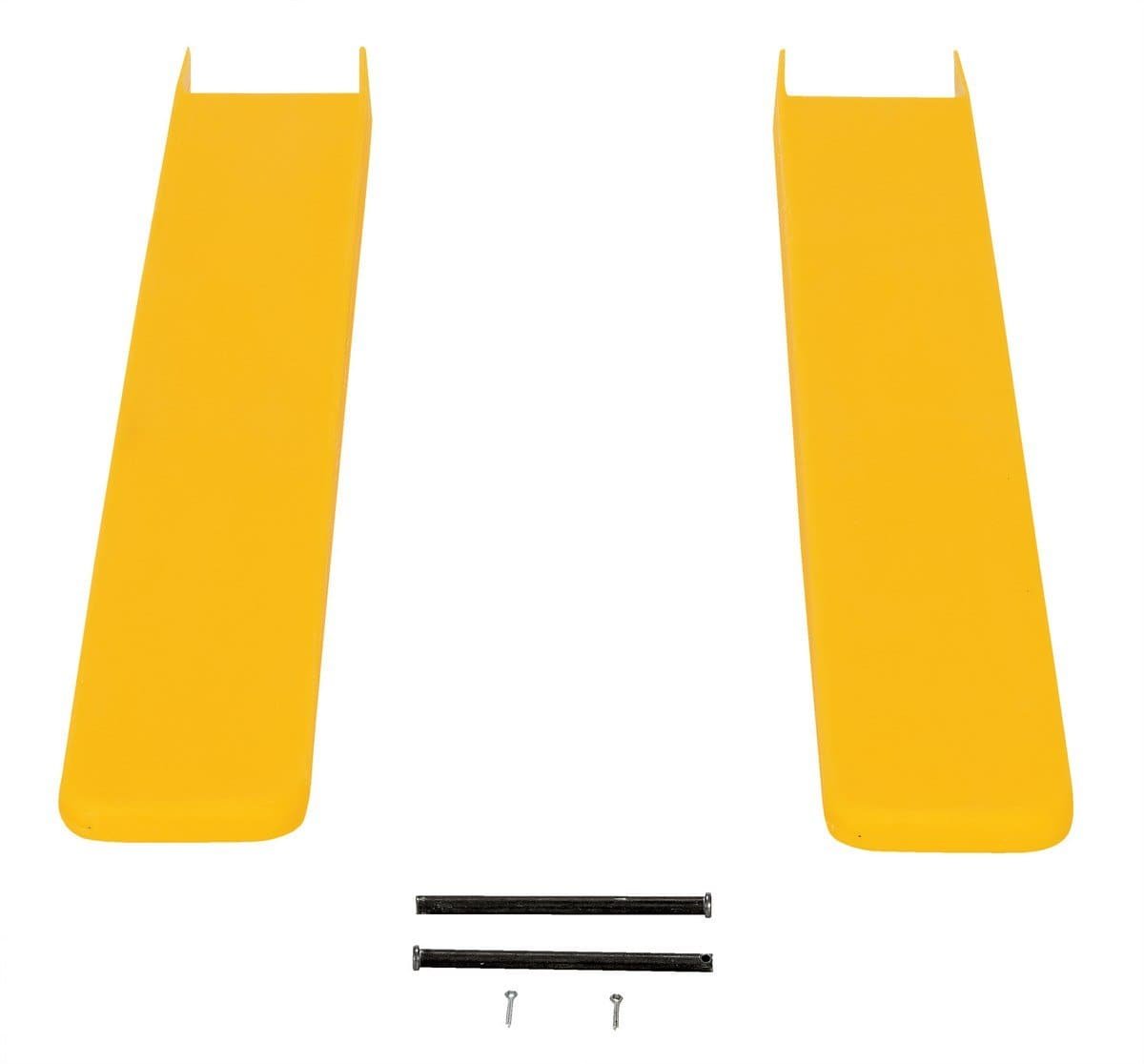

Polyethylene Fork Blade Protectors
SKU: F4-36
Prevent damage to packages and skids from sharp edges of fork truck forks with blunt end Fork Blade Protectors.

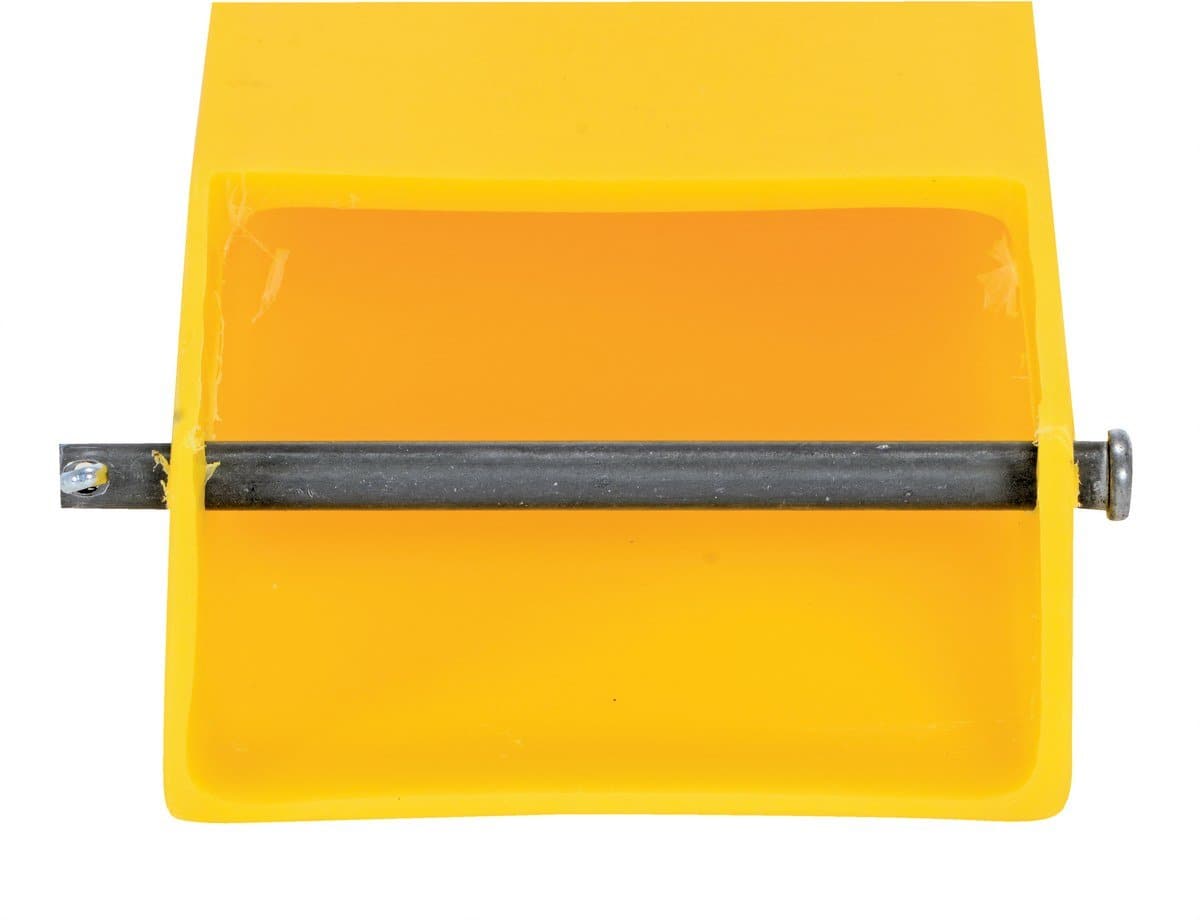

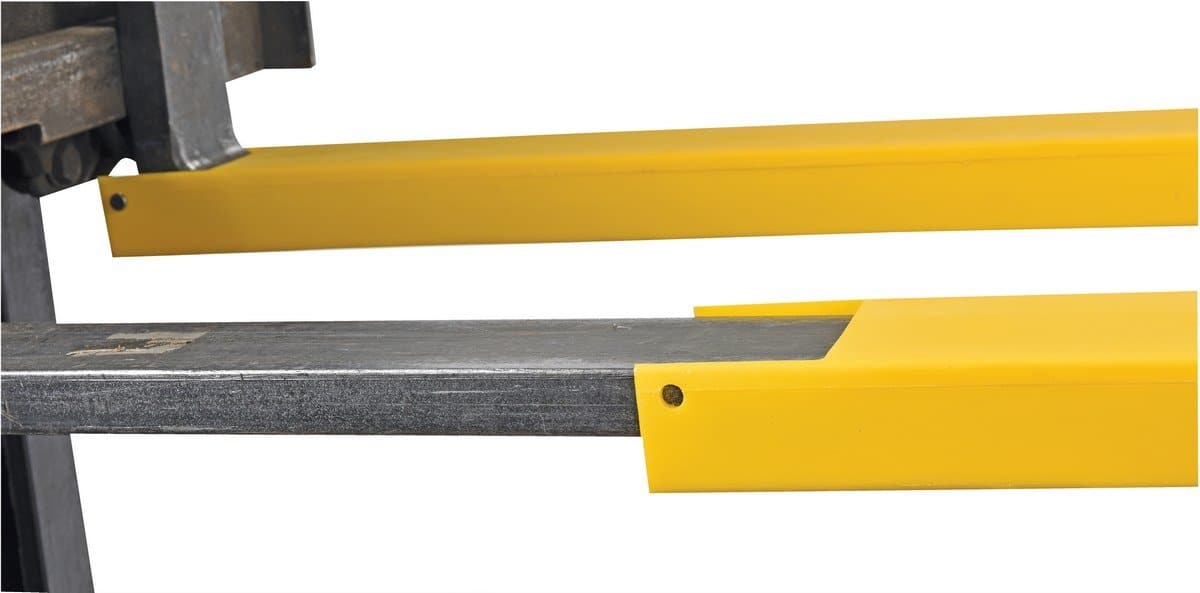

Hide unsightly scratches and gouges on your forks as well. Constructed from lightweight 100% polyethylene material. Simply slide over forks. Held in place with a clevis pin and cotter pin.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Fork Blade Protectors | ||||||||
| Model | Image | Accommodates Fork Width | Overall Width |
Accommodates Fork Length | Max Fork Thickness | Wt. (lbs.) Pair |
||
| Polyethylene Fork Blade Protectors | ||||||||
| F4-36 |
|

|
4" | 5-11/16" | 36" | 2" | 6 | |
| F4-42 |  |
|
4" | 5-11/16" | 42" | 2" | 7 | |
| F4-48 |  |
|
4" | 5-11/16" | 48" | 2" | 8 | |
| F4-60 |  |
|
4" | 5-11/16" | 60" | 2" | 10 | |
| F5-36 |
|
|
5" | 6-15/16" | 36" | 2" | 7 | |
| F5-42 |
|
|
5" | 6-15/16" | 42" | 2" | 8 | |
| F5-48 |
|
|
5" | 6-15/16" | 48" | 2" | 9 | |
| F5-60 |
|
|
5" | 6-15/16" | 60" | 2" | 12 | |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
