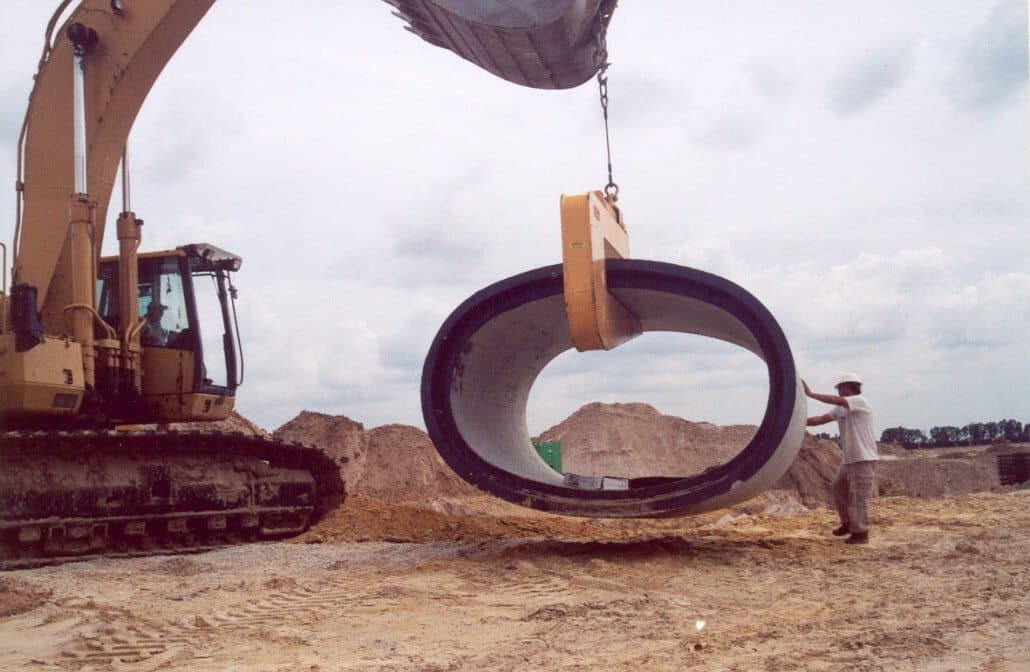

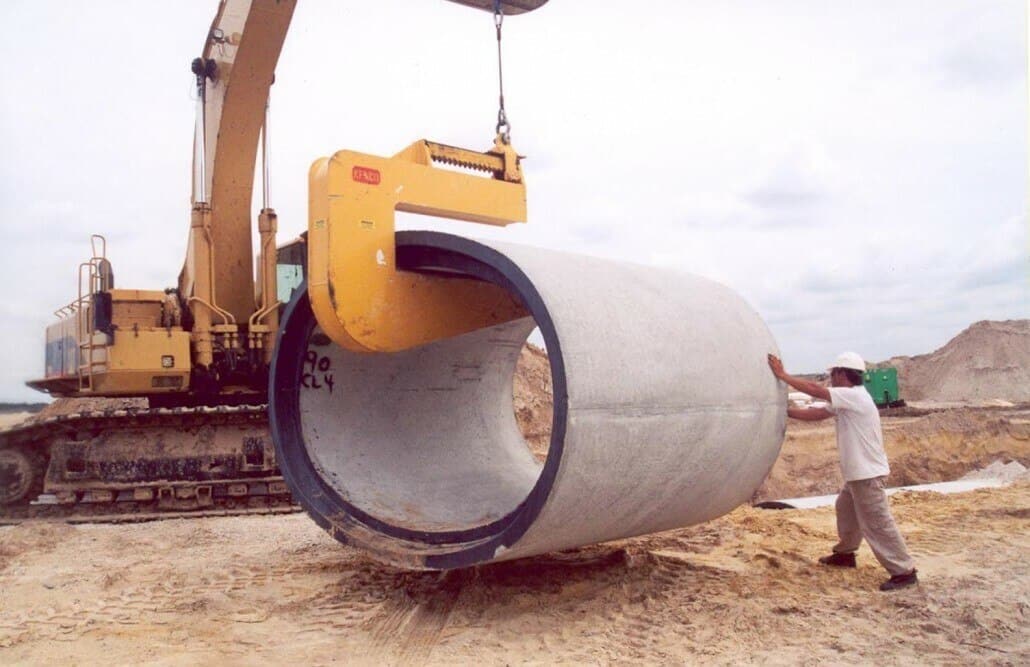

PH9000 Mechanical Pipe Hook provides a safe and efficient way to place, move and set 8 foot sections of pipe
- 9,000 pound capacity
- Fits I.D 12.00 to 48.00 inch pipe of any shape
- Weighs 700 pounds
DESCRIPTION
PH9000 MECHANICAL PIPE HOOK

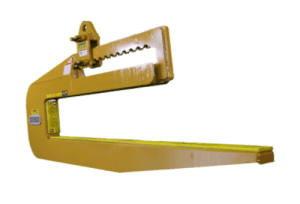

The PH9000 Mechanical Pipe Hook provides a safe and efficient way to place, move and set 8 foot sections of pipe. This mechanical model of the Pipe Hook has a manual slide that is positioned to adjust the the pipe to its proper balance point. It has a capacity rating of 9,000 pounds. This version of our pipe lifting hook will handle any shape or type of pipe from 12 inches ID up to 48 inches ID. Concrete pipe lifting devices hook up to any machine capable of lifting the required capacity with a shackle/sling assembly, like the Kenco RigMax.

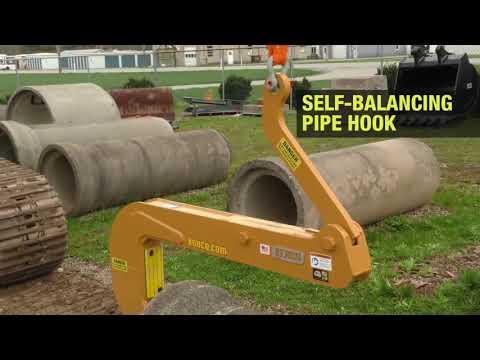

Kenco pipe hooks will handle any shape or type of 8 foot pipe sections and are also available in a self balancing version to handle up to 9,000 pound capacities.
MODEL | CAPACITY | MINIMUM PIPE OPENING | MAXIMUM PIPE OPENING | PAD SIZE/QTY | UNIT WEIGHT |
---|---|---|---|---|---|
PH9000 | 9,000 lbs | 12 inches | 48 inches |
(2) 4" x 36"
(1) 4" x 10" back pad |
700 lbs |
PH12000 | 12,000 lbs | 18 inches | 60 inches |
(2) 4" x 36"
(1) 4" x 13" back pad |
920 lbs |
PH18000 | 18,000 lbs | 24 inches | 72 inches |
(2) 4" x 36"
(1) 4" x 13" back pad |
1120 lbs |
PH30000 | 30,000 lbs | 30 inches |
Note: as long as weight of pipe is at or under specified capacity, there is no maximum size requirement |
(2) 4" x 36"
(1) 4" x 15" back pad |
1500 lbs |
PH60000 | 60,000 lbs | 36 inches |
Note: as long as weight of pipe is at or under specified capacity, there is no maximum size requirement |
(4) 4" x 36" | 3300 lbs |
