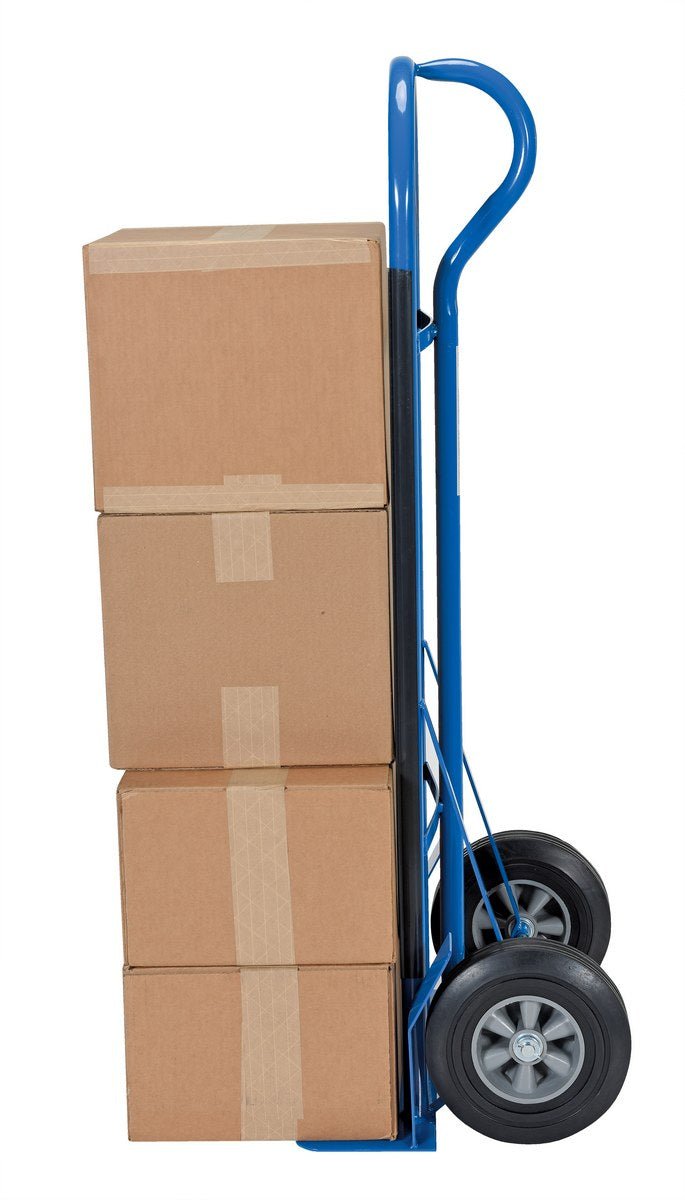

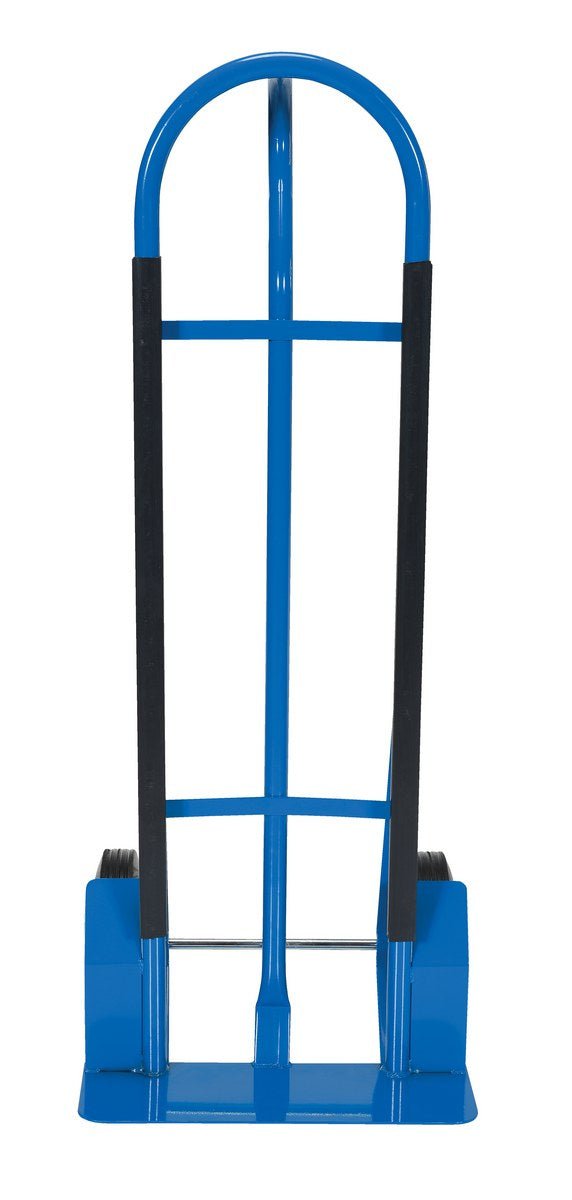

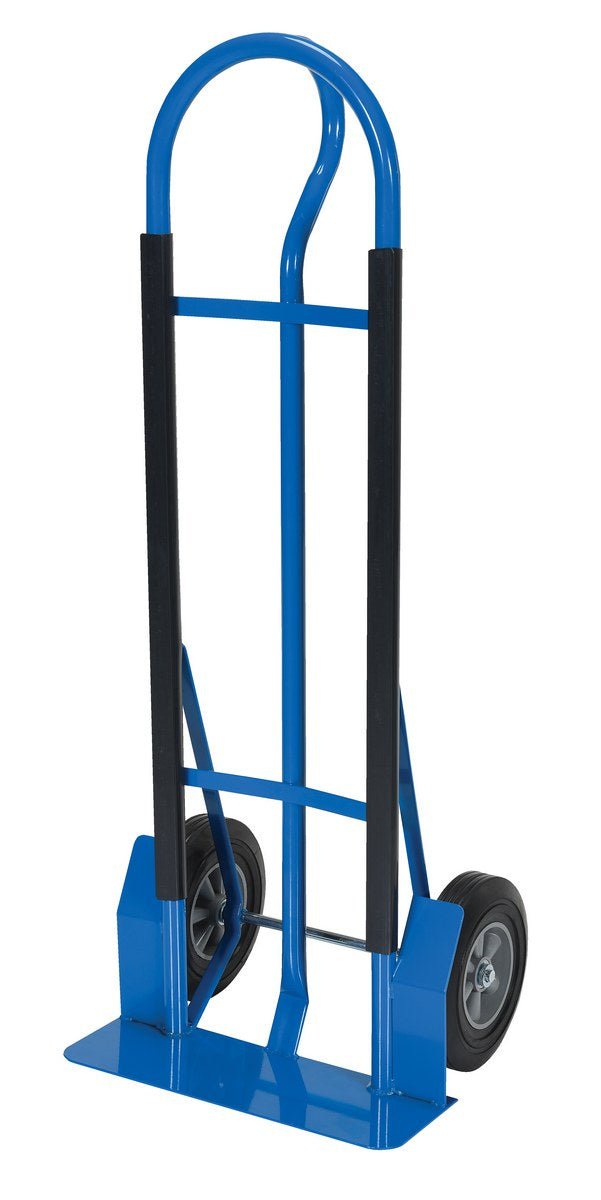

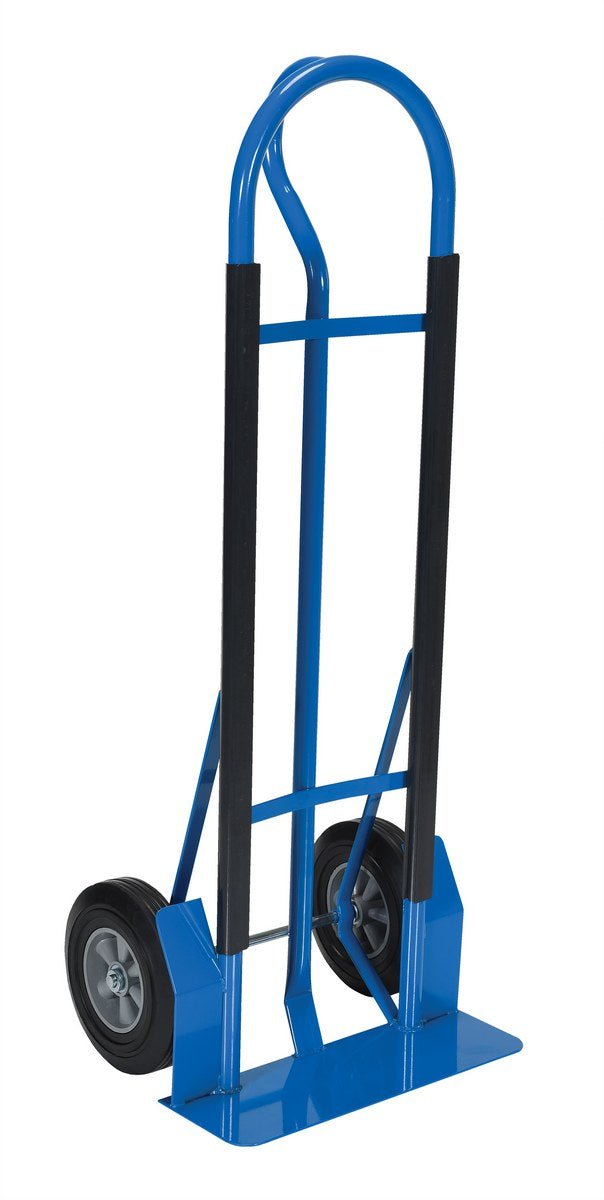

P Handle Hand Trucks
SKU: SPHT-500S-HR
The "P" style hand trucks are ideal for transporting heavy and awkward loads.
These trucks work well for the user that needs to free up one hand. The "P" shaped handle makes the truck easy to steer and maneuver.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Steel "P" Handle Hand Trucks | ||||||
| Model | Image | Nose Plate (WxD) |
Capacity (lbs) |
Overall Size (WxDxH) |
Wt. (lbs) | |
|

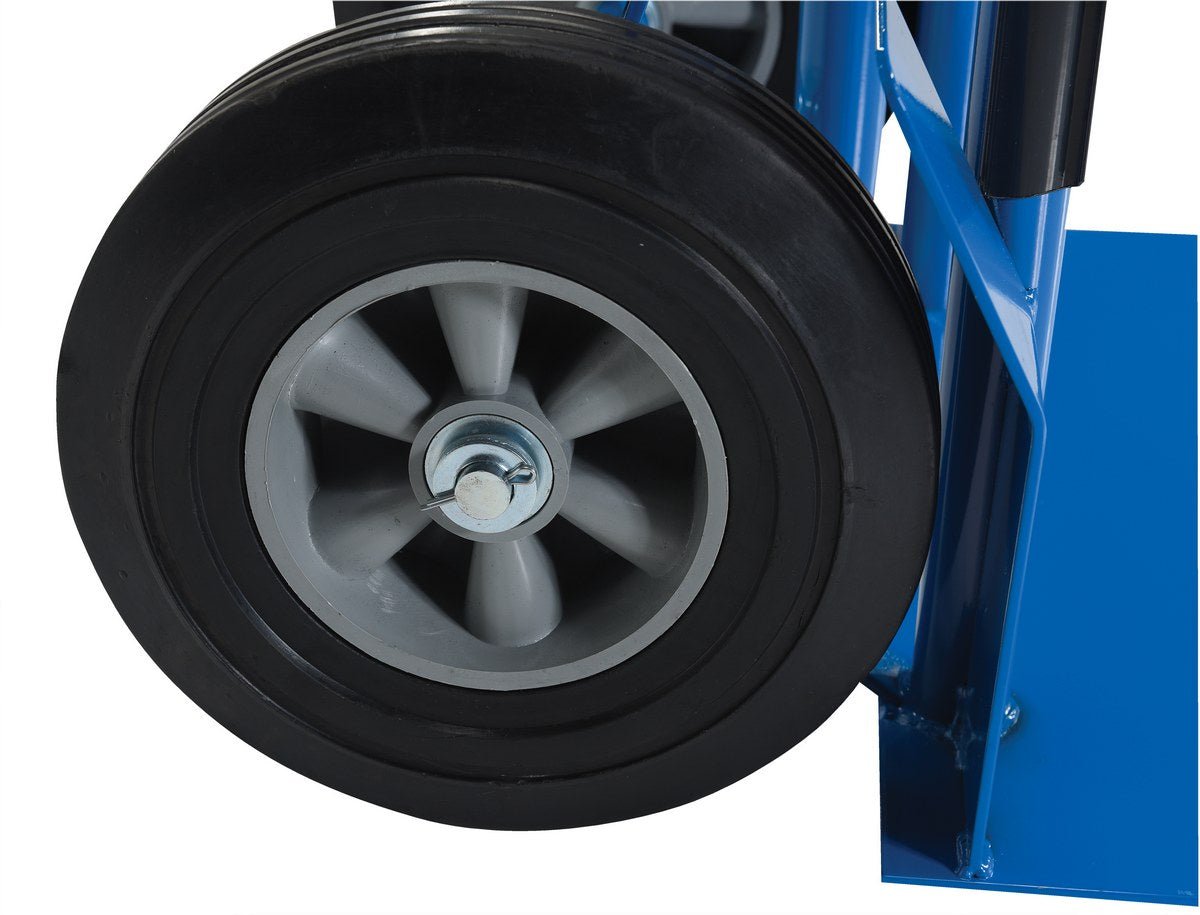

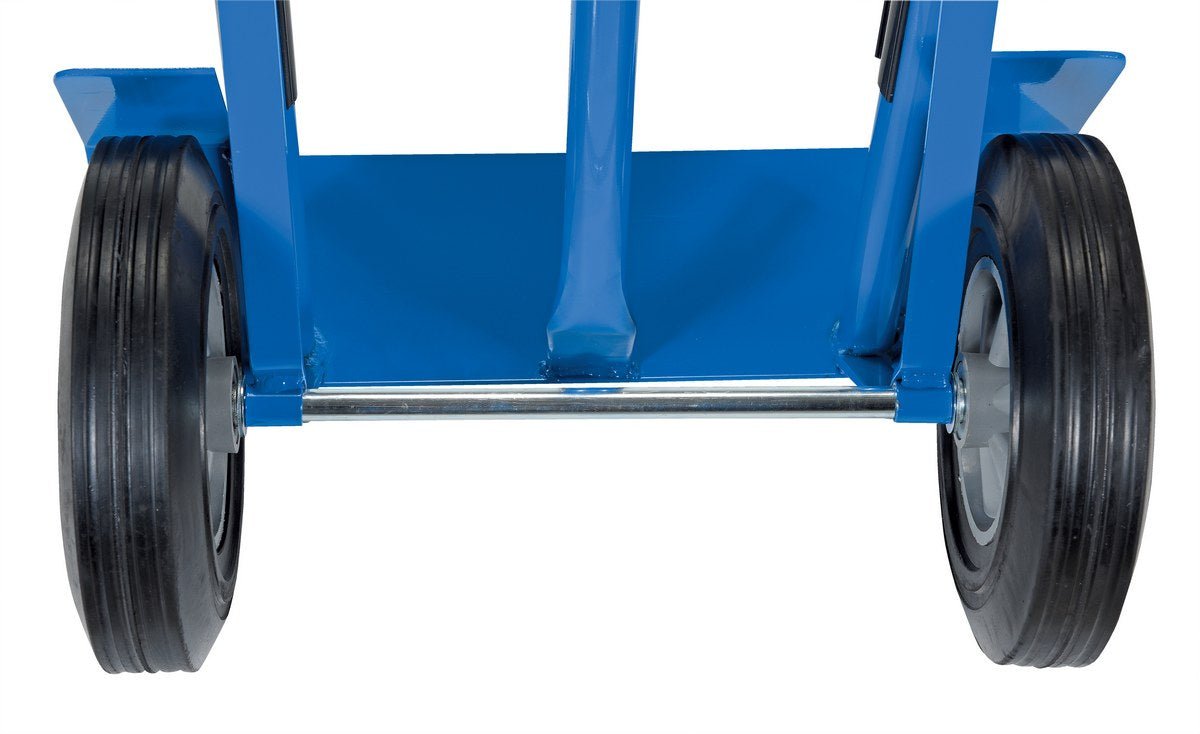

10" x 2" Hard Rubber Wheels |
||||||
| SPHT-500S-HR |  |

|
14"x7-1/2" | 500 | 21"x18"x52" | 33 |
| SPHT-500S-HD-HR |  |
|
20"x 5-1/8" | 600 | 20"x16-1/4"x52" | 42 |
|
10" x 3-1/2" Pneumatic Wheels |
||||||
| SPHT-500S |  |
|
14"x7-1/2" | 500 | 21"x18"x52" | 21 |
| SPHT-500S-HD |  |
|
20"x 5-1/8" | 600 | 20"x16-1/4"x52" | 32 |
|
13" x 4" Pneumatic Wheels |
||||||
| SPHT-600S-IND |  |
|
14"x7" | 600 | 22"x22"x52" | 31 |
| Aluminum "P" Handle Hand Trucks | ||||||
| Model | Image | Nose Plate/ Platform (W x D) |
Capacity (lbs) Nose Plate/Platform |
Overall Size (WxDxH) |
Wt. |
|
|
10" x 2" Hard Rubber Wheels |
||||||
| APHT-500A-HR |  |
|
18"x 7-1/2" / 12" x 27" | 500/200 | 18-1/2" x 18-1/2" x 52-1/2" | 38 |
|
10" x 3-1/2" Pneumatic Wheels |
||||||
| APHT-500A |  |
|
18"x 7-1/2" / 12" x 27" | 500/200 | 20-1/2" x 18-1/2" x 52-1/2" | 28 |
| Stainless Steel "P" Handle Hand Trucks | ||||||
| Model | Image | Nose Plate (WxD) |
Capacity (lbs) |
Overall Size (WxDxH) |
Wt. |
|
|
10" x 2" Hard Rubber Wheels |
||||||
| SPHT-500-SS-HR |  |
|
14"x7-1/2" | 500 | 21"x18"x52" | 45 |
| SPHT-500-HD-SS-HR |  |
|
22"x7-1/2" | 600 | 22"x19"x52" | 45 |
|
10" x 3-1/2" Pneumatic Wheels |
||||||
| SPHT-500-SS |  |
|
14"x7-1/2" | 500 | 21"x18"x52" | 24 |
| SPHT-500-HD-SS |  |
|
22"x7-1/2" | 600 | 22"x19"x52" | 35 |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
