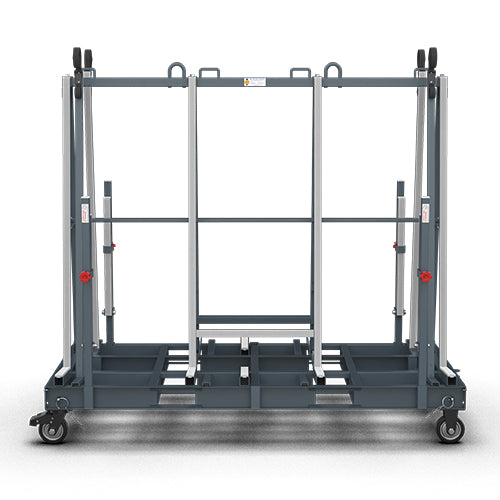

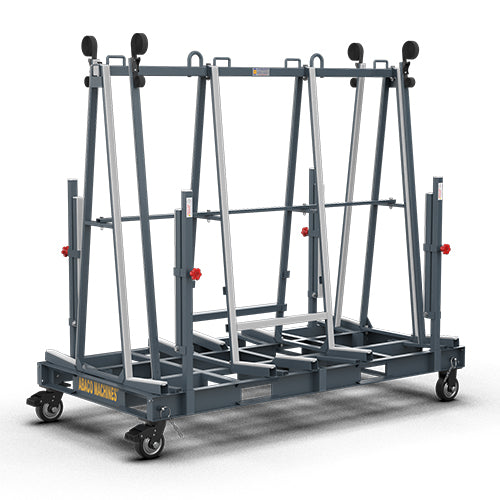

Abaco One Stop A-Frame Pro-M3

Abaco One Stop A-Frame Pro-M3

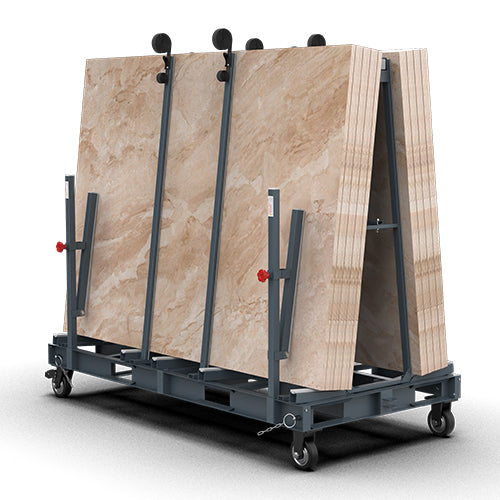

The Abaco One Stop A-Frame Pro-M3 is specifically designed for carrying and storing stone slabs in warehouses, factories, and construction sites. Engineered with flexibility and stability in mind, this A-frame system can be disassembled into components for convenient packing and transportation. It provides a versatile solution for managing heavy-duty stone slabs and ensuring they remain secure during transport and storage.

General Information:

• Versatile Design: The One Stop A-Frame Pro-M3 is available in three versions—OSA7247PRO-M3, OSA7263PRO-M3, and OSA8763PRO-M3—offering options to suit different storage and handling needs.
• Easy Disassembly: Can be disassembled into separate components, making it easy to transport and store.
• Adjustable Frame: The A-frame can be detached from the base frame for flexible adjustments and operational functionality.

Features & Benefits:

• Dual-Component Structure: Consists of a base frame and A-frame, along with ratchet-securing bars for added stability and material protection.
• Heavy-Duty Casters: Four heavy-duty caster wheels (two swivel casters) support the base frame, providing easy maneuverability and ensuring a stable load capacity of up to 4,400 lbs (2,000 kg) when using casters.
• Ratchet Securing Bars: Adjustable ratchet securing bars with top straps and bottom slots firmly hold stone slabs of various sizes in place.
• Rubber Protection Strips: Rubber strips (available in black and white) are evenly arranged on the A-frame to protect the slabs from scratches and damage during storage and transport.
• High Load Capacity: When stationary (without casters), each model supports a load capacity of up to 30,800 lbs (14,000 kg), making it suitable for handling large and heavy slabs.

Product Specifications:

• OSA7247PRO-M3:

  • Length (A): 73 15/16" (1878 mm)
  • Width (B): 43 5/16" (1100 mm)
  • Height (C): 62 15/16" (1600 mm)
  • Weight: 345.4 lbs (157 kg)
  • Rolling Capacity: 4,400 lbs (2,000 kg)
  • Stationary Capacity: 30,800 lbs (14,000 kg)
  • Lifting Capacity with Eyelets: 5,500 lbs (2,500 kg)

• OSA7263PRO-M3:

  • Length (A): 73 15/16" (1878 mm)
  • Width (B): 43 5/16" (1100 mm)
  • Height (C): 78 3/4" (2000 mm)
  • Weight: 363 lbs (165 kg)
  • Rolling Capacity: 4,400 lbs (2,000 kg)
  • Stationary Capacity: 30,800 lbs (14,000 kg)
  • Lifting Capacity with Eyelets: 5,500 lbs (2,500 kg)

• OSA8763PRO-M3:

  • Length (A): 88 1/2" (2248 mm)
  • Width (B): 43 5/16" (1100 mm)
  • Height (C): 78 1/2" (1994 mm)
  • Weight: 437.8 lbs (199 kg)
  • Rolling Capacity: 4,400 lbs (2,000 kg)
  • Stationary Capacity: 30,800 lbs (14,000 kg)
  • Lifting Capacity with Eyelets: 5,500 lbs (2,500 kg)

The Abaco One Stop A-Frame Pro-M3 provides an innovative solution for safely storing and transporting heavy-duty stone slabs. Its robust construction and versatile design make it an indispensable tool for professionals seeking a reliable and efficient material handling system.

Order your Abaco One-Stop A-Frame Pro today and experience the ultimate in storage efficiency and safety.
