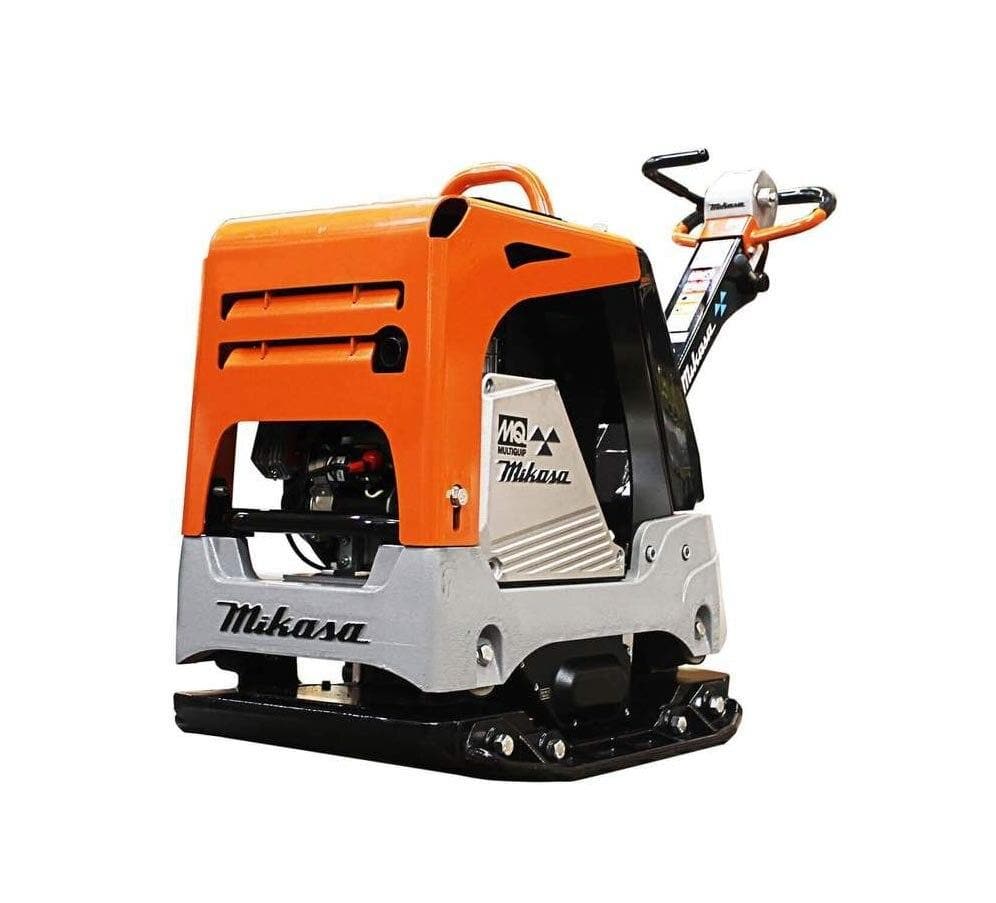

MVH208GH Reversible Plate Compactor
SKU: MVH208GH
MVH208GH Reversible Plate Compactor are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils
Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
- Reliable Honda GX240 engine.
- Fold-out front cover for easy access to all maintenance points.
- Hour/Tachometer to measure machine hour usage and engine RPM.
- Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
- Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
- Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
- Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
- Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
- Low profile base plate lowers the center of gravity dramatically improving travel speed.
| Centrifugal Force | 8318 lbf | 37 kN |
| Exciter Speed | 5200 VPM | |
| Plate Size |
28.3 x19.7 in 720 x 500 mm |
|
|
Max Forward Speed Per Min. |
85 ft | 26 m |
|
Fuel Consumption Per Hour |
.67 gal | 2.54 L |
| Overall Length | 51.6 in | 1311 mm |
| Overall Width | 19.7 in | 500 mm |
| Overall Height | 39.2 in | 996 mm |
| Operating Weight | 463 lb | 210 kg |
Notice: Features and equipment specifications are subject to change without notice.
