MVC90H Plate Compactor

Original price $3,600.00 - Original price $3,600.00
Original price
$3,600.00
$3,600.00 - $3,600.00
Current price $3,600.00
SKU: MVC90H

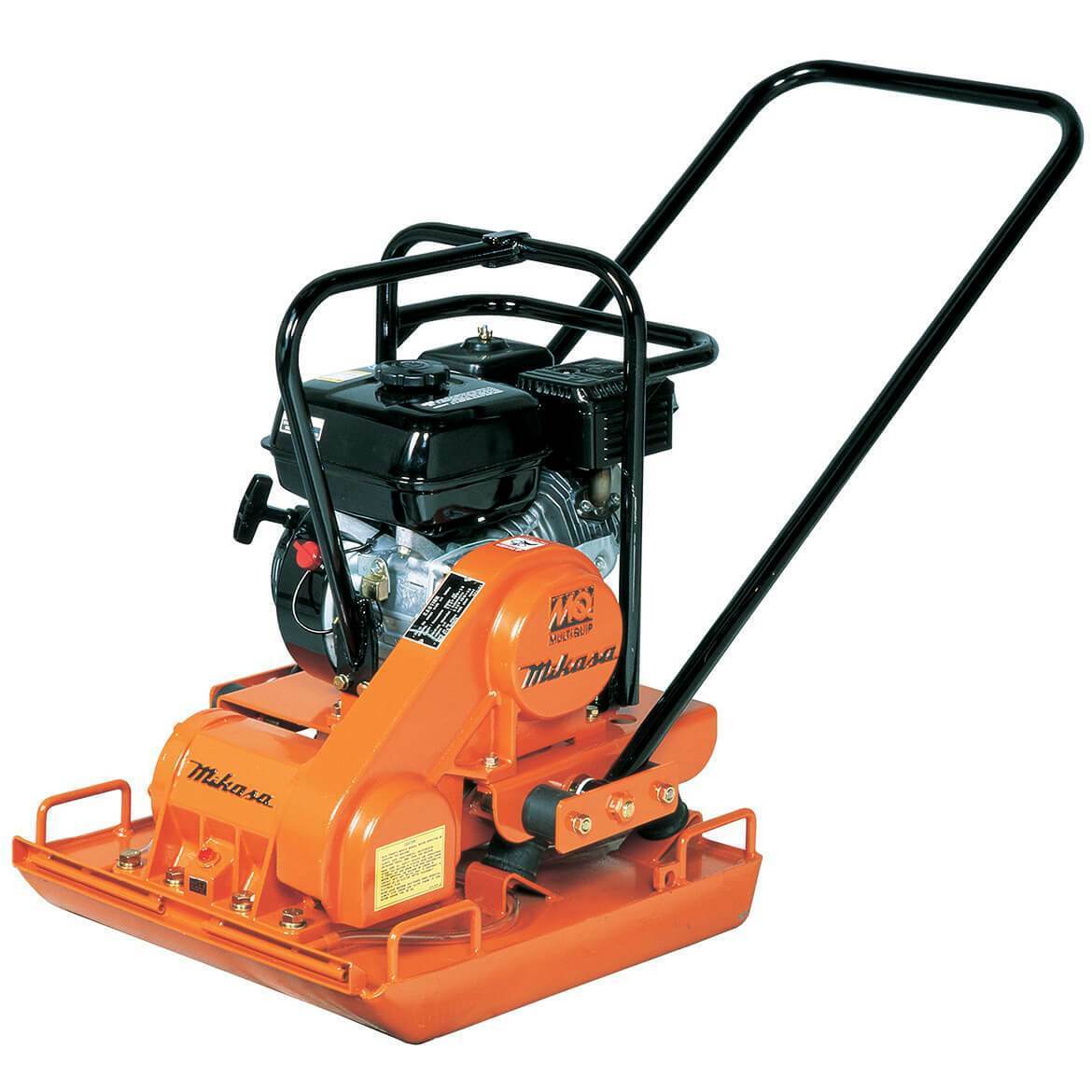

MVC90H Plate Compactor for compacting soil, dirt, gravel, and asphalt

3350 cf, Honda GX160, water tank, 19.75in. plate
The MVC90 boasts more standard features than any other one-way compactor. Its rugged design ensures years of productive service.
  • Engine oil alarm, strong vibrator assembly
  • Heavy-duty steel base plate-closed design, ribbed for extra strength
  • Fitted with a 19.75 x 22 inch (502 x 560 mm) plate
  • Durable steel water distribution system, reversible shock mounted handle
  • Tubular steel roll bar cage protects engine components and provides a lifting point
  • Double V-belt drive
Unit Specifications
Centrifugal Force 3420 lbf 15.21 kN
Exciter Speed 5800 VPM
Plate Size 19.7 x 22 in
50 x 56 mm
Max Forward Speed
Per Min.
82 ft 25 m
Fuel Consumption
Per Hour
0.343 gal 1.3 L
Water Tank Capacity 4 qt 3.79 L
Dimensions & Weights
Overall Length 23 in 584 mm
Overall Width 19.75 in 502 mm
Overall Height 45.25 in 1149 mm
Operating Weight 194 lb 88 kg
Notice: Features and equipment specifications are subject to change without notice.
