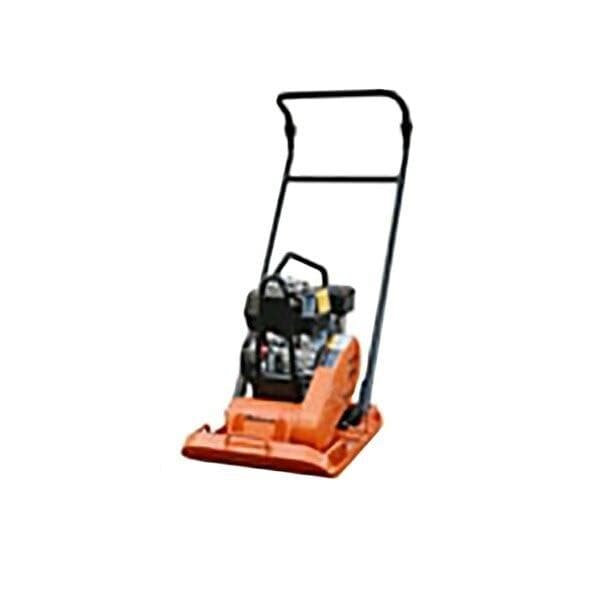

MVC88VTH Plate Compactor
SKU: MVC88VTH
MVC88VTH Plate Compactor for durable, serviceable performance
Our best selling plate just got better! The new MVC88 now features a single cast baseplate and eccentric housing to enhance plate durability, serviceability and performance. An hour/tachometer to help measure runtime and engine rpm is now a standard feature. The plate is even easier to transport with the new wheel kit design. All this combined with an advanced anti-vibration handle make the MVC88 the newest and most technically advanced plate compactors on the market.
- Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
- Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
- Single cast baseplate and eccentric housing lowers center of gravity and increases travel speed by 12% for greater productivity.
- Hour/tachometer measures runtime and engine rpm.
- Tubular steel roll bar protects engine components and provides central lifting point.
- Sealed belt cover keeps dirt and rocks out extending belt life.
- Open base plate design makes for easier removal of dirt and rock build-up.
- Cog-tooth belt drive enables longer life compared to conventional V-belts.
- Optional urethane plate attachment for use on paving stones and brick pavers (UPA88T).
- Optional transport wheel kit WHL88T for serial number T2A9197 and below. WHL88TC for serial number T2A9198 and above.
| Centrifugal Force | 3372 lbf | 15 kN |
| Exciter Speed | 6000 VPM | |
| Plate Size |
19.7 x 20.7 in 500 x 525 mm |
|
|
Max Forward Speed Per Min. |
82 ft | 25 m |
|
Fuel Consumption Per Hour |
0.31 gal | 1.17 L |
| Overall Length | 41.75 in | 1060 mm |
| Overall Width | 19.75 in | 502 mm |
| Overall Height | 37 in | 940 mm |
| Shipping Dimensions |
38 x 22 x 29 in 965 x 559 x 737 mm |
|
| Operating Weight | 207 lb | 94 kg |
| Shipping Weight | 225 lb | 102 kg |
Notice: Features and equipment specifications are subject to change without notice.
