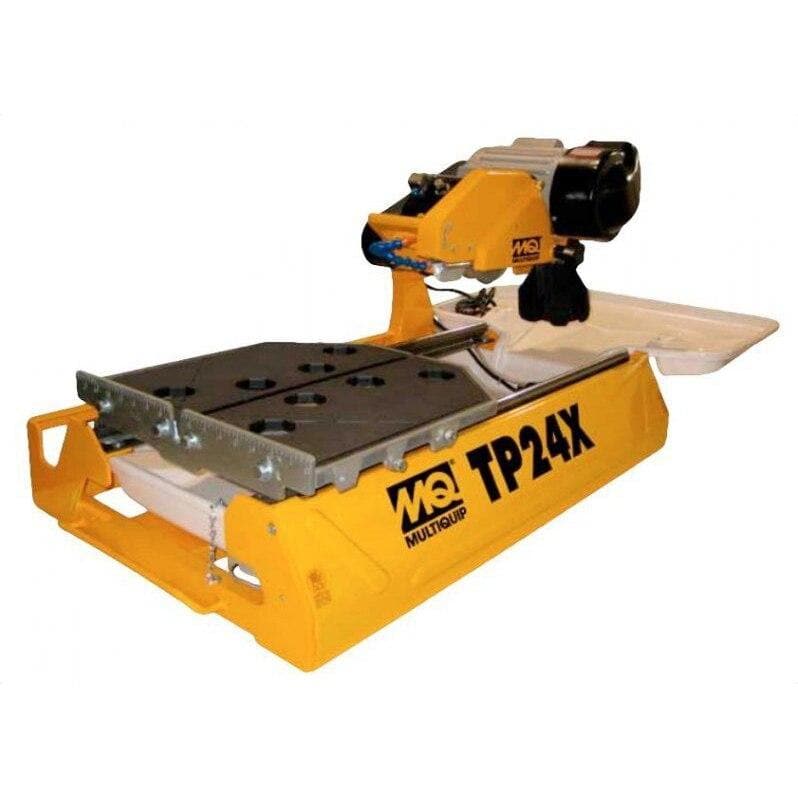

Multiquip TP24X Tile Saw
SKU: TP24X
Multiquip TP24X Wet Saw for Precision Cutting of Ceramic, Tile, Stone, and Masonry Materials
Robust design for the professional who handles large cuts on ceramic, stone or masonry materials. A sturdy precision steel frame and easy removable molded thermal water tray provide durability and longevity. An innovative water-cooled bearing assembly works in conjunction with the water pump to keep key bearing components running cooler.
- Rugged steel frame design with handles for easy transport/storage.
- Electric 115V/15A 60 Hz 1Ø induction motor.
- UL/CSA approved with thermal overload and fan cover protection.
- Sturdy ABS Water Tray.
- Rugged die-cast aluminum table with heavy-duty injection molded rubber padding.
- Industrial ball bearing rollers ensure smooth, precise cart movement.
- Maintenance-free submersible water pump provides high volume water flow.
- Heavy-cast aluminum blade guard evenly distributes water to the blade
- Back splash tray included.
- Premium 10-inch (254 mm) tile blade included.
- Optional Saw Stand (TSSX) available.
- 10 in. Blade Guard, 24 in. Straight, 18 in. Diagonal cut
| Power Source | 1 1/2 HP 115V/15A 60HZ | |
| Blade Capacity | 10 in | |
| Blade RPM | 3,450 | |
| Arbor Size | 5/8 in | |
| Drive System | V-Belt | |
| Cutting Depth | 2 7/8 in | |
| Straight Cut | 24 in | |
| Diagonal Cut | 18 x 18 (Tile Size) in | |
| Water Pump | 115V 100GPH | |
| Water Pan | ABS | |
| Cutting Jigs | Provided | |
| Overall Length | 38 in | 965 mm |
| Overall Width | 23 in | 584 mm |
| Overall Height | 21 in | 533 mm |
| Operating Weight | 103 lb | 47 kg |
Notice: Features and equipment specifications are subject to change without notice.
