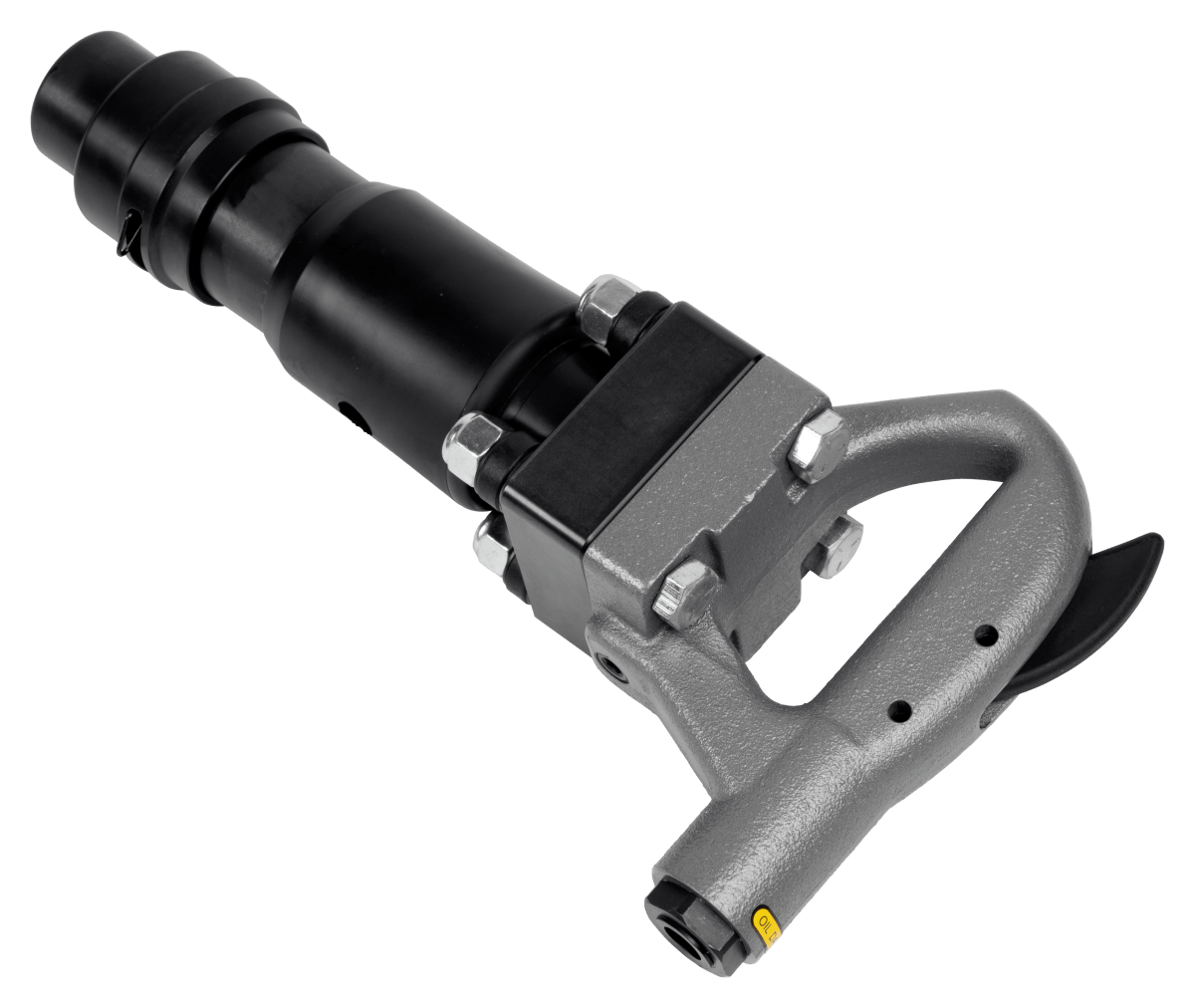

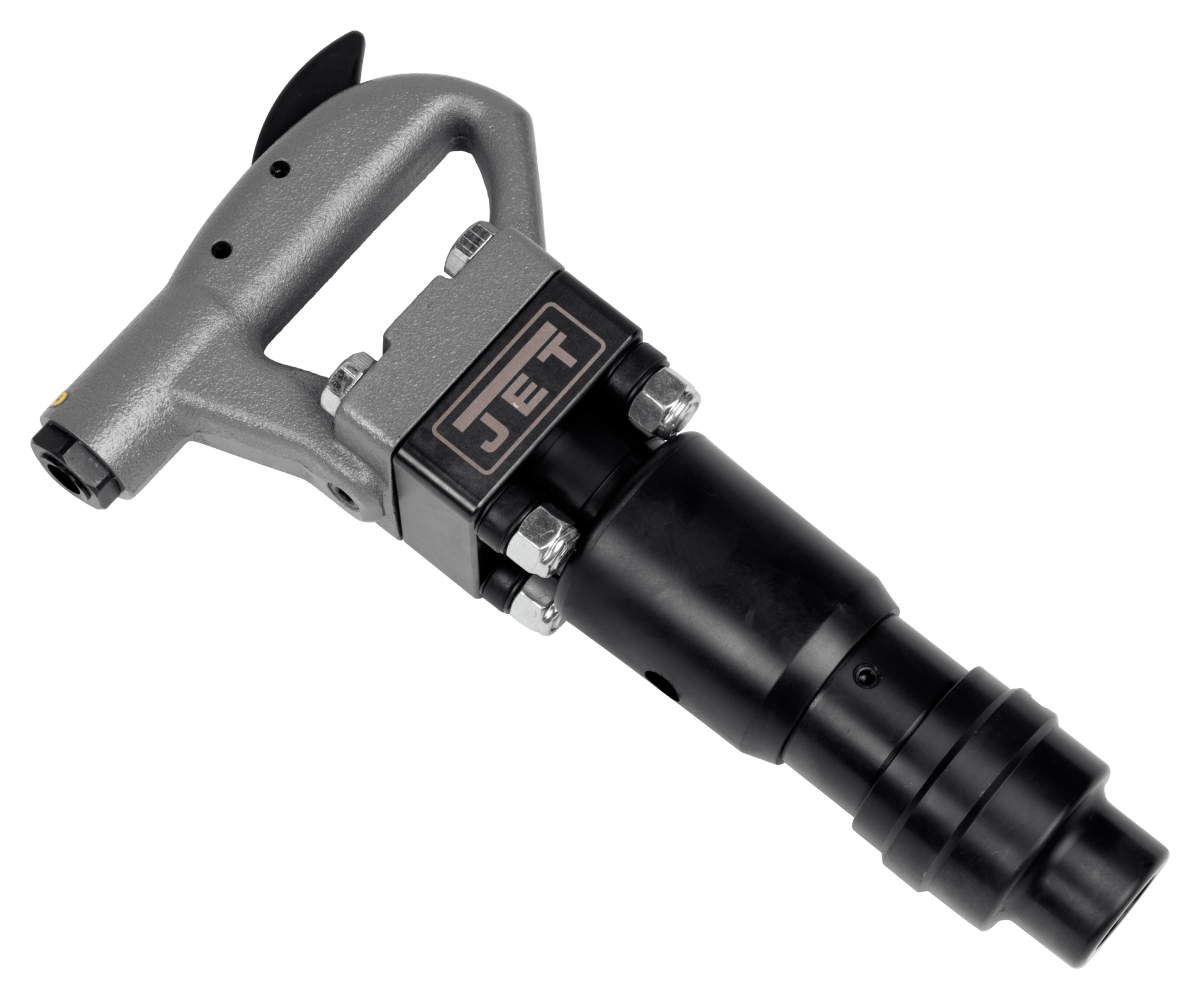

JCT-3621, 3" Stroke, Hex Shank, 4-Bolt Chipping Hammer
SKU: JT9-550621
JET® Chipping Hammers are available in two heavy-duty designs with multiple capabilities.
The Four Bolt D handle model is designed for extra strength and provides better grip. The Saw Tooth handle model is engineered to dissipate the impact energy more efficiently. Each type has the option of round or hex shaped bushing shanks. Each model can accommodate standard oval collared chisels and retainers, making these heavy-duty Chipping Hammers a staple on any construction site.

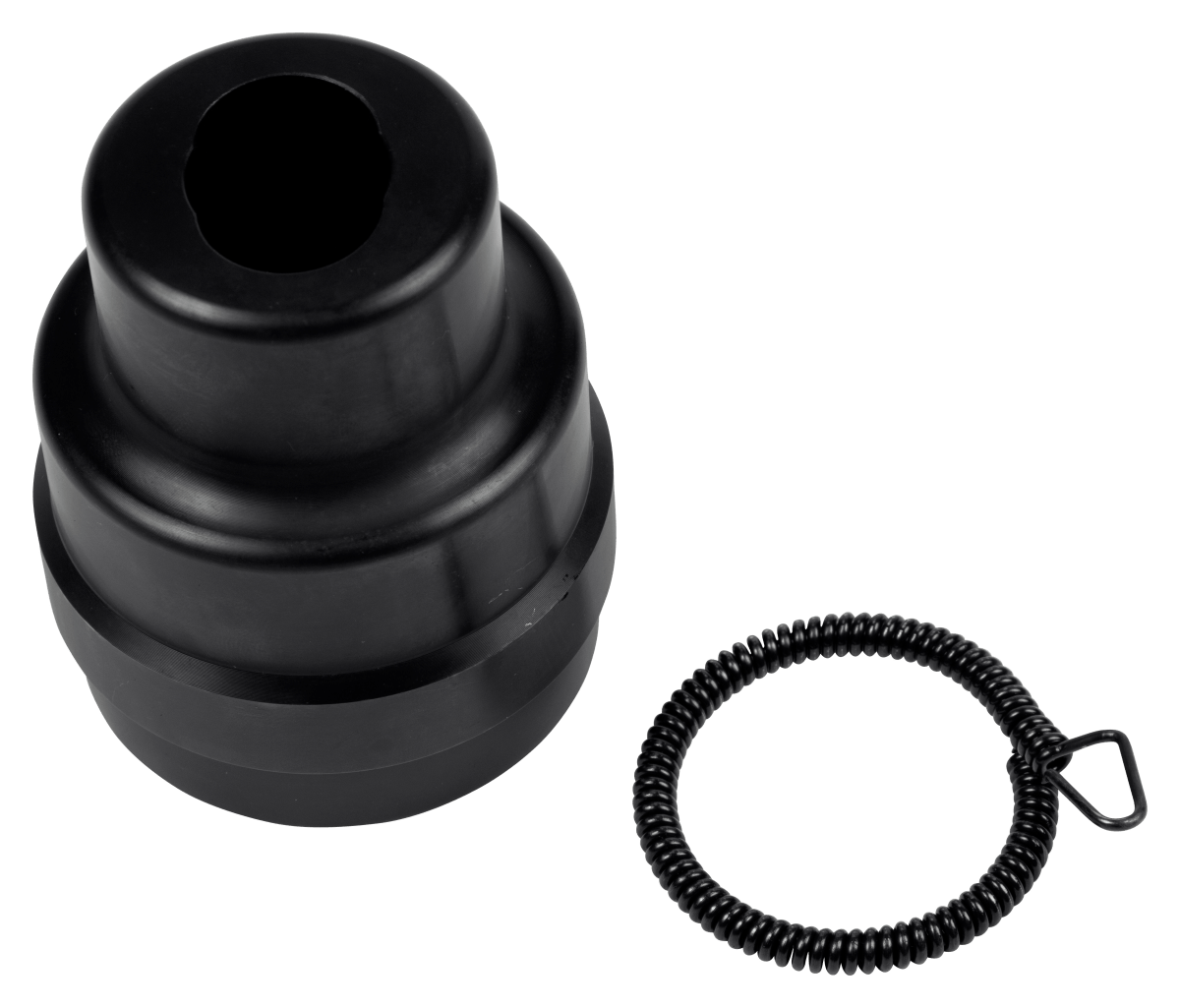

- Comes with standard type retainer
- Easy serviceability with the 4-bolt backhead
- Ergonomic "D" style forged handle with outside trigger
- Heat treated cylinder and piston for added durability
- Heavy-Duty, industry proven valve design
Specs
| Stock Number | 550621 |
|---|---|
| Air Consumption (CFM) | 27.6000 |
| Air Inlet (NPT) | 3/8 |
| Blows Per Minute | 2,300 |
| Bore Size (In.) | 1-1/8 |
| Bullets | Comes with standard type retainer, Easy serviceability with the 4-bolt backhead, Ergonomic "D" style forged handle with outside trigger, Heat treated cylinder and piston for added durability, Heavy-Duty, industry proven valve design |
| Min. Air Hose (ID) | 1/2 |
| Noise Level (dBA) | 96 |
| Overall Length (In.) | 14.5 |
| Piston Stroke (In.) | 3 |
| Prop 65 | None |
| Shank Bushing Size (In.) | 0.580 |
| Vibration Value (m/s²) | 14.5000 |
| Weight (Lbs.) | 17 |
| Shank Bushing Style | Hex |
