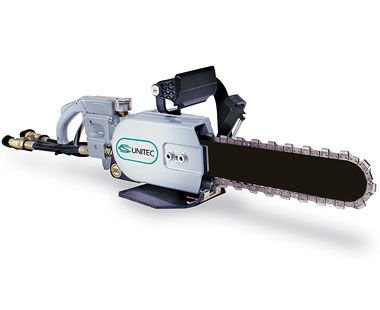

Hydraulic Concrete Chain Saws
SKU: CS 566110-1
HYDRAULIC CHAIN SAW FOR CONCRETE WITH AIRFORCE F4™ DIAMOND CHAIN – OPTIMIZED FOR HYDRAULIC CHAINSAWING
- Hydraulic chainsaw motor and diamond blades for concrete
- Safety Operating trigger prevents accidental starting
- For use with concrete and reinforced concrete
- Up to 20" cutting depth
- Optimized AirForce F4™ standard and premium diamond chains available
- Can be converted to pipe cutting saw for ductile iron
- Low cost of operation
- No gas or engine fumes
- Durable industrial finish
- Built-in wallwalker for leverage
Specs
|
Model No. CS 566110-1 |
Model No. CS 566110-2 |
Model No. CS 566110-3 |
|
|---|---|---|---|
| Power | 11 HP | 11 HP | 11 HP |
| No Load Speed | 5700 RPM | 5700 RPM | 5700 RPM |
| Max Depth of Cut | 10" | 15" | 20" |
| Motor Specifications | 8 GPM @ 2500 PSI (172 bar) | 8 GPM @ 2500 PSI (172 bar) | 8 GPM @ 2500 PSI (172 bar) |
| Weight w/ Bar and Chain | 28 lbs. | 29 lbs. | 30 lbs. |
| No Load Torque (In.-lbs.) | 95 | 95 | 95 |
| Noise Level at 3 ft. | 88 dB | 88 dB | 88 dB |
