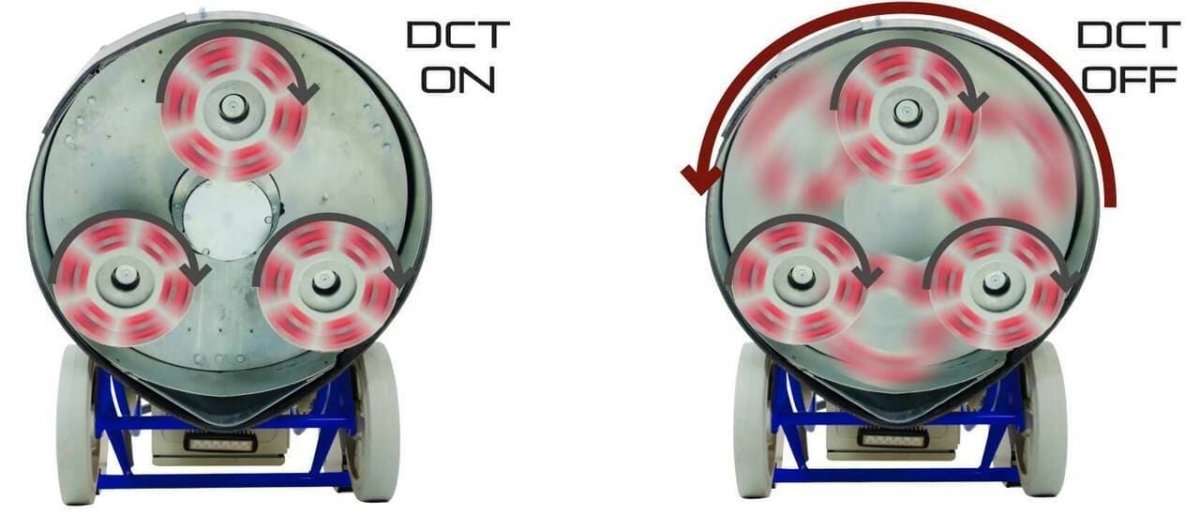

The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).
MAIN CHARACTERISTICS:
- Single-shell chassis, robust and compact for less space.
- Tempered stainless steel planetary and gear box. Fully geared transmission.
- 180 ° overturning system for extra weight. The displaced weights increase the grinding pressure. The weights moved back facilitate the tilting operation for tool changes (Optional).
- Third wheel for easy transportation and for operations on very large surfaces (Optional).

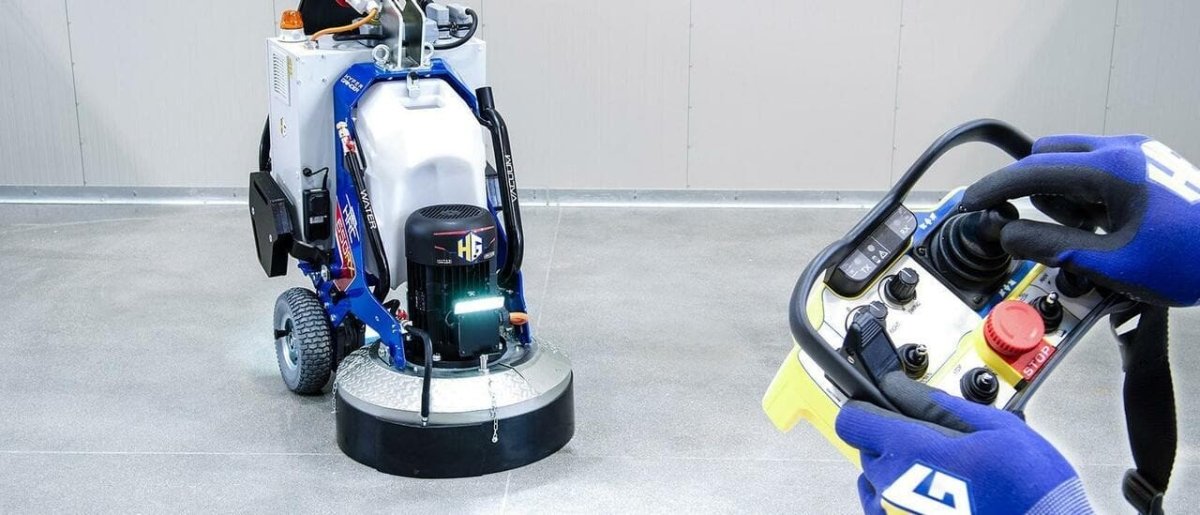

- All functions available on remote controls.

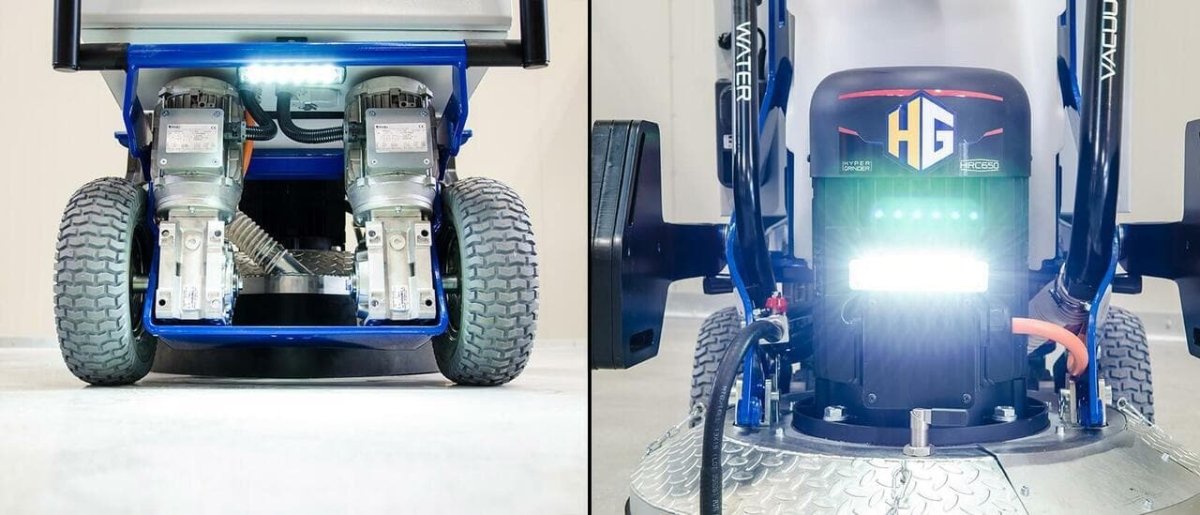

- On board batteries for machine self-displacement (RX/AD version).
- Utensils free quick attachment system for diamond tools (RX/AD version).
- 46-liter water tanks.

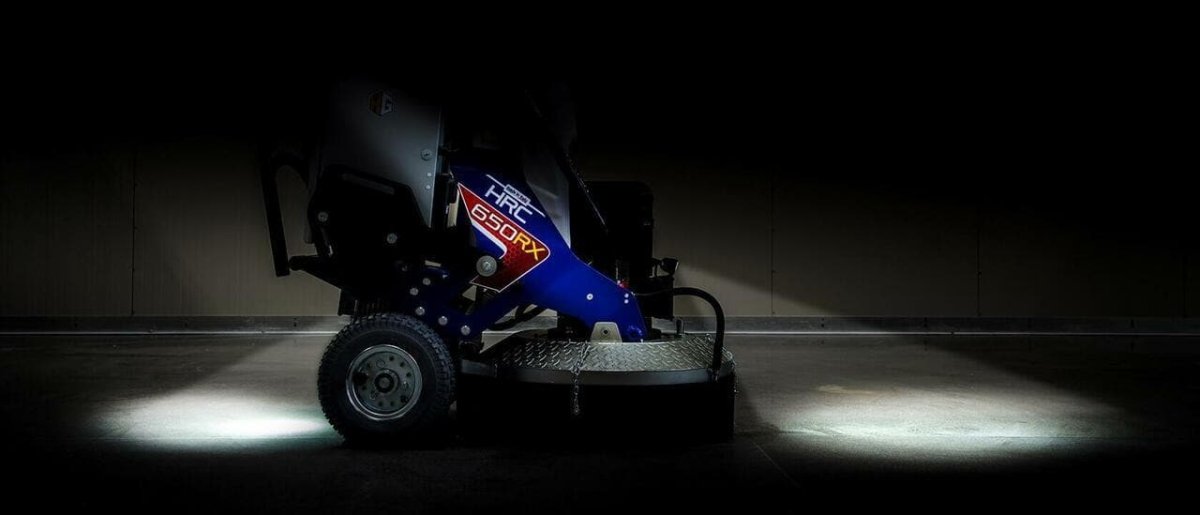

- Powerful front and rear LED spotlights (Optional).
- Noise reduction levitating planetarium.
- 2 Year Warranty: The GUARANTEE for machines equipped with "hour counter" is up to 2 years or 600 hours of work.
| Model |
HRC 650 SX |
HRC 650 RX |
HRC 650 AD |
| Motor |
10 HP |
15Hp |
15Hp |
| Drive Inverter |
11 kW |
11kW |
11kW |
| Volt |
380-480 |
380-400 |
380-400 |
| Hertz |
50/60 |
50/60 |
50/60 |
| Amp |
25 |
25 |
25 |
| Tools Speed |
300-1300 rpm |
300-1300 650 |
300-1300 650 |
| Work Diameter |
650mm |
|
|
| Tools Size |
3x240mm |
3x240mm |
3x240mm |
| Water Tank |
46 lt |
46lt |
46lt |
| Size LxAxP cm |
120x125x67 |
120x125x67 |
120x125x67 |
| Weight |
280 Kg |
534 Kg |
534kg |
| ESTIMATED PRODUCTION |
|
| Concrete Polishing 7 step |
12-17 m2/h |
| Concrete Grinding 1 step |
50-90 m2/h |
| Terrazzo Polishing 5 step |
11-17 m2/h |
| Resin Removal 1 step |
45-85 m2/h |
| Paint Removal 1 step |
45-85 m2/h |
| Marble Polishing 5 step |
8-13 m2/h |
| Granite Polishing 7 step |
5-8 m2/h |
| Model |
HRC 650 SX/RX/AD |
| Volume |
1.31 m3 |
| Size |
120x80x136 cm |
| Weight |
320 Kg |
