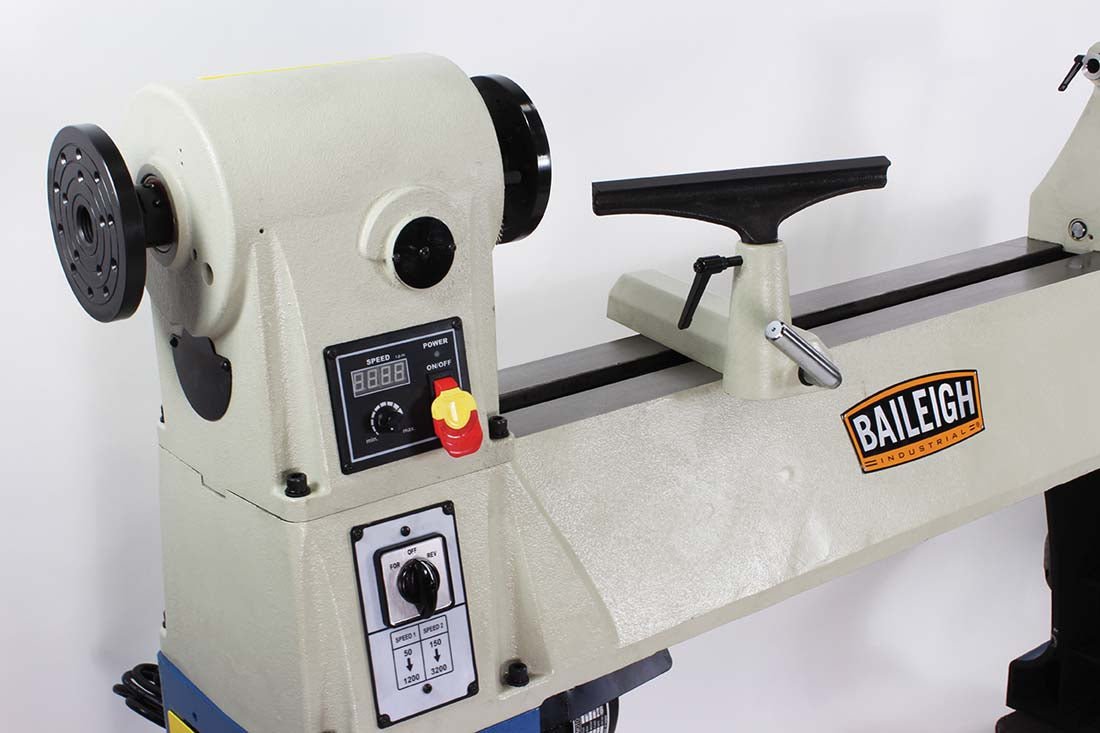

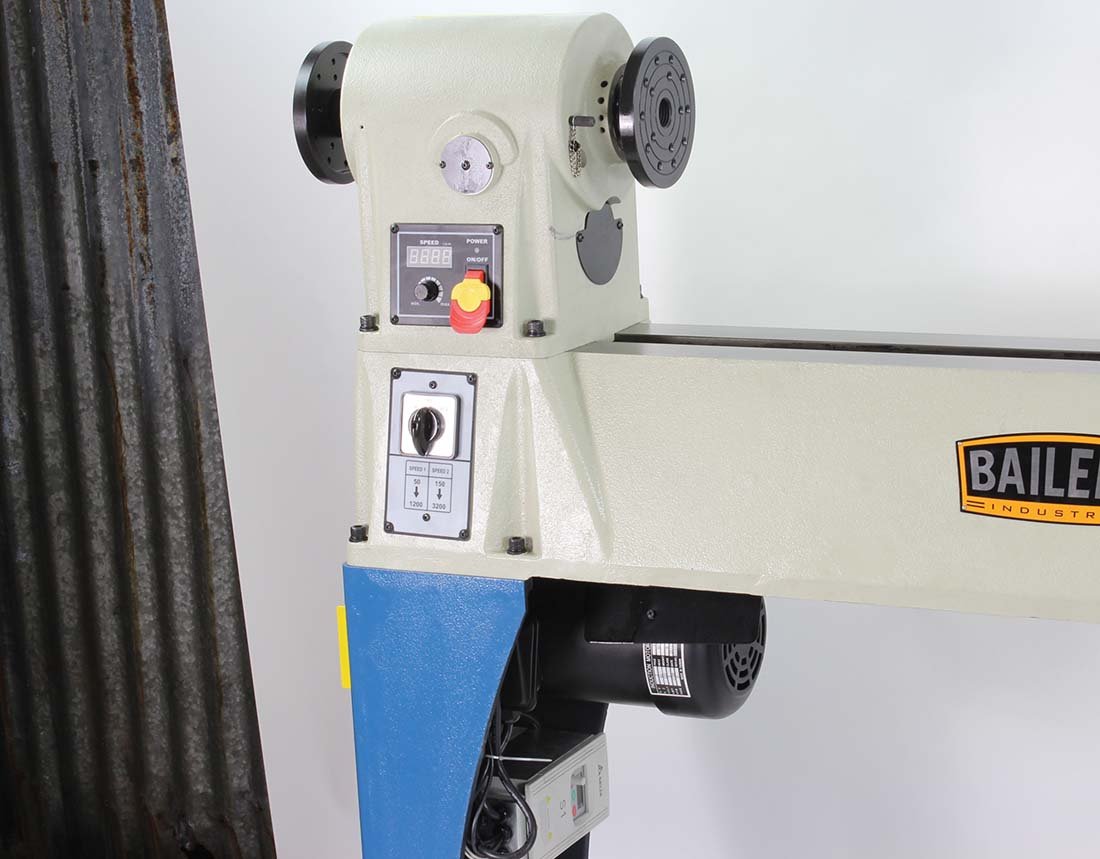

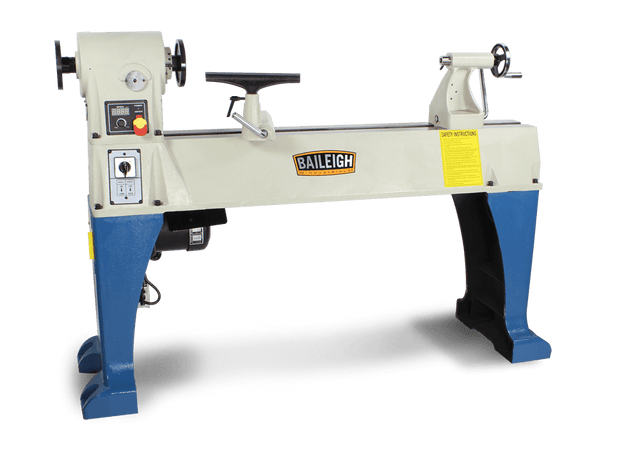

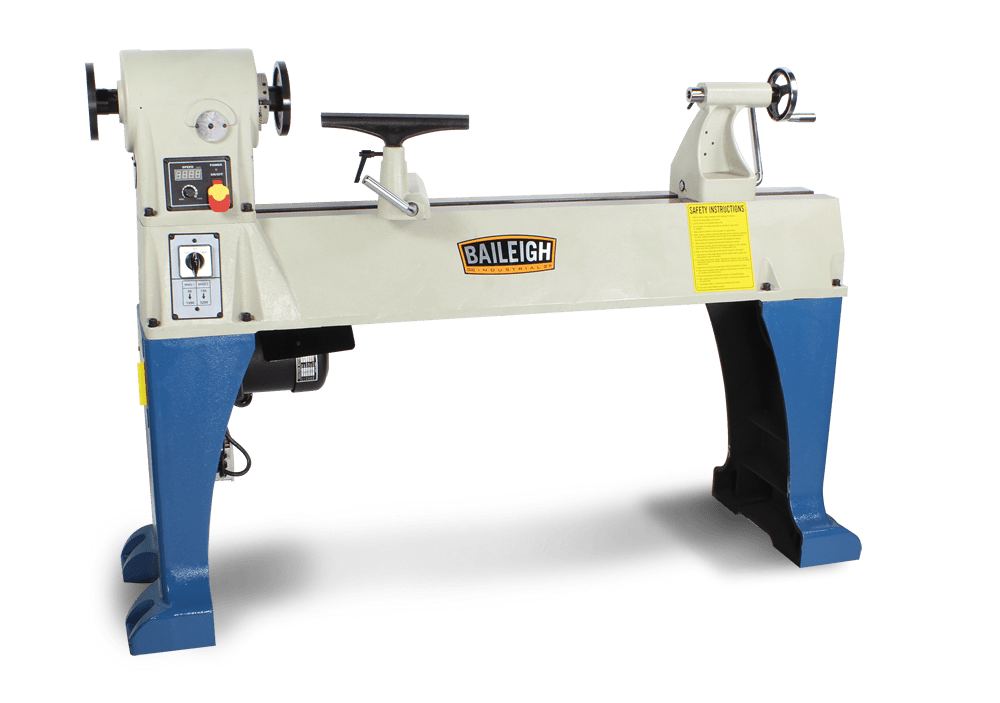

Heavy Duty Wood Lathe Wl-1840Vs
SKU: 1008387
This variable-speed wood lathe is a long-lasting machine for commercial furniture and cabinet makers as well as smaller companies that turn legs and make bowls.
- 2 hp motor runs on 220-volt single-phase power.
- 18” swing.
- 40” distance between centers.
- 2 inverter-driven variable speed ranges: from 0-1200 and 0-3200 rpm.

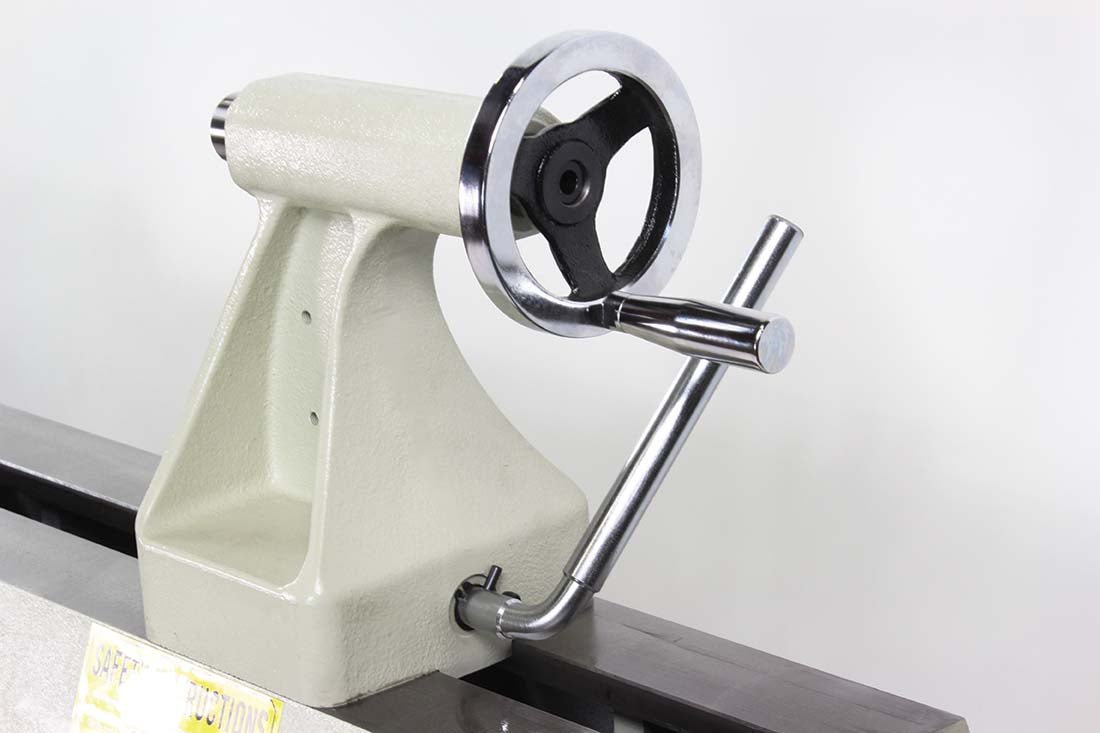

- MT2 taper spindle and tailstock.
- 4” travel in the tailstock barrel.
- You can add an optional outboard tool rest for bowl making and more.

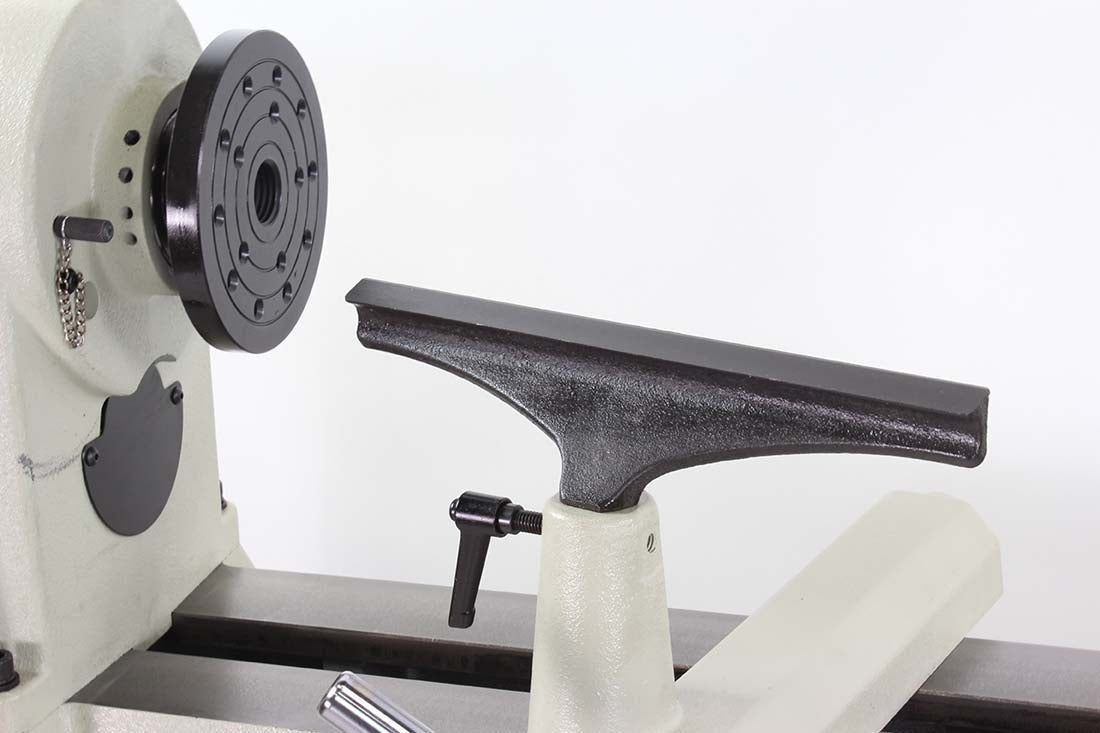

- Comes standard with a 6” face plate and a 12” tool rest.
- Index accuracy of 10°.
- Covered by a 1-year parts warranty.
| Item Number | WL-1840VS |
|---|---|
| Swing | 18" |
| Swing - Outboard | 35" |
| Tailstock | MT2 |
| RPM | 0-3200 |
| Tailstock Travel | 4" |
| Tool Rest | 12" |
| TPI | 1-1/4" x 8 |
| Headstock Bore | 1/2" |
| Tailstock Bore | 3/8" |
| Face Plate | 6" |
| Index Increment | 10° |
| Power | 220V Single Phase |
| Horse Power | 2 |
| Weight (lbs) | 855 |
| Shipping Dimensions (Inches) | 78x44x60 |
* specifications subject to change without notice.
