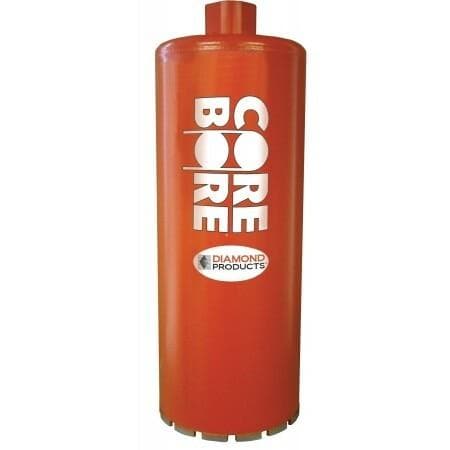

Heavy Duty Orange Wet Core Bore
SKU: 05099
Heavy Duty Orange Wet Core Bore for fast drilling of concrete
Excellent footage and drilling speed. Designed for all types of wet drilling in applications with light to moderate steel.
Very high quality diamond and longer coring life.
ORDERING INFORMATION All bits may be ordered with custom bonds Note: All diameters are nominal. Exact tolerances upon request.
Core Bit Lengths: 1/2" to 7/8" Diameter Core Bits Standard Core Length= 12", 1" to 14" Diameter Core Bits Standard Core Length = 13" 16" Diameter Core bits Standard Core Length = 19"/18" Diameter Core Bits Standard Core Length = 22" 20" to 30" Diameter Core bits Standard Core Length = 23" Note: Any length available upon request.
Hub Sizes: 1/2" to 1-1/2" = 5/8"-11 threaded hub. 1-5/8" and up = 1-1/4"-7 threaded hub
Large Sizes
Similar Wet Core Bore Bits
Star Blue Segmented Wet Core Bits
Standard Gold Segmented Wet Core Bore Bit
Premium Black Wet Core Bore Bits
Heavy Duty Orange Wet Core Bore Specifications:
| SIZE |
HOL CAT # |
H38F CAT # |
H42Z CAT # |
H64L CAT # |
HOL WIDE SPACE CAT # |
OPEN END CAT # |
|---|---|---|---|---|---|---|
| 1/2" | 05099 | 45547 | 95431 | 36273 | --- | 81402 |
| 5/8" | 05141 | 39237 | 73994 | 16875 | --- | 81403 |
| 3/4" | 05173 | 45548 | 05171 | 16877 | --- | 72183 |
| 7/8" | 05192 | 45549 | 05191 | 16886 | --- | 81406 |
| 1" | 04812 | 04809 | 21539 | 04810 | --- | 28042 |
| 1-1/8" | 04837 | 45550 | 83034 | 27000 | --- | 23312 |
| 1-1/4" | 15509 | 67903 | 23217 | 25596 | --- | 25944 |
| 1-3/8" | 04874 | 45552 | 83029 | 36274 | --- | 16137 |
| 1-1/2" | 15525 | 45554 | 23218 | 28619 | --- | 05208 |
| 1-5/8" | 04907 | 45555 | 15038 | 26414 | --- | 16056 |
| 1-3/4" | 04910 | 45556 | 23219 | 28621 | --- | 16138 |
| 1-7/8" | 04920 | 45561 | --- | 20934 | --- | 16145 |
| 2" | 15479 | 45563 | 20301 | 04934 | 20102 | 05212 |
| 2-1/4" | 04959 | 45564 | 80125 | 04957 | 28637 | 16148 |
| 2-1/2" | 00004 | 37094 | 18343 | 04976 | 05258 | 05216 |
| 2-3/4" | 04992 | 45565 | 90035 | 28623 | 05260 | 16160 |
| 3" | 00005 | 45567 | 05011 | 05013 | 05263 | 05220 |
| 3-1/4" | 05032 | 45568 | 21540 | 28624 | 28671 | 16189 |
| 3-1/2" | 00006 | 45569 | 24060 | 28625 | 22164 | 05224 |
| 4" | 00007 | 45571 | 21917 | 05060 | 05269 | 05228 |
| 4-1/4" | 05079 | 45572 | 58138 | 05077 | 28178 | 26118 |
| 4-1/2" | 00008 | 45574 | 21541 | 05086 | 22165 | 27383 |
| 5" | 00009 | 45575 | 21542 | 05107 | 05273 | 05232 |
| 5-1/2" | 05117 | 45576 | 21543 | 28626 | 24610 | 16194 |
| 6" | 00010 | 45577 | 18150 | 05131 | 05278 | 05238 |
