Hay Spear | Bale Hay Lifter | Hay Fork Lifter | Hay Bale Forks

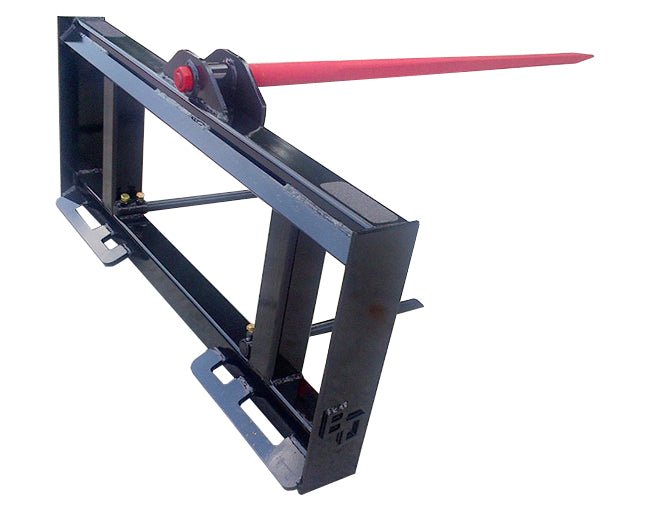

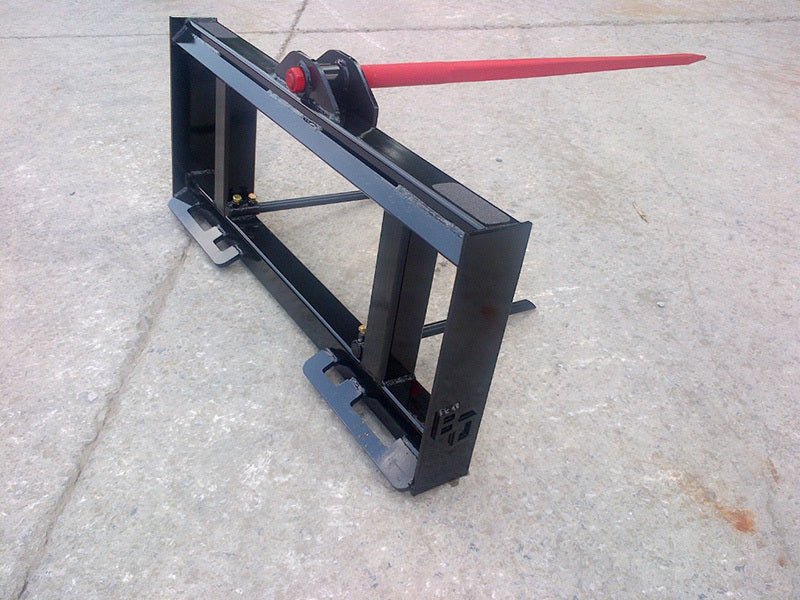

Blue Diamond® offers a high quality yet compact hay spear for skid steers and tractors. It is available in two styles: a single spear with stabilizers for round bales or a double bottom style for large square bales which can also be used as a pallet fork.

The high-quality German-made spear tines are rated for 3,500 lbs. each, and the lower stabilizers are replaceable. These strong frames are powder coated, and a bolt-on back rack is available. All Blue Diamond® Hay Spears carry a one-year warranty.

Features

Single, double, or quad spears
Can be used as pallet forks
Add-on back rack available
Optional bolt-on rack
3,500 lb. spear capacity
Euro-Ag/Global and John Deere 400/500, 600/700 mounts available
Powder coat paint

PART NUMBER	MODEL	SPEAR LENGTH	WEIGHT
311003	Hay Spear W/HD Stabilizers (Short Spear)	36"	154 lbs.
311006	Hay Spear with Standard Stabilizers	48”	160 lbs.
311007	Hay Spear W/Standard Stabilizers & Back Rack	48"	204 lbs.
311008	Hay Spear W/HD Stabilizers	48”	165 lbs.
311009	Double Bottom Hay Spear (Short Spears)	36"	180 lbs.
311010	Double Bottom Hay Spear	48”	190 lbs.
311011	Double Bottom Hay Spear with Rack	48”	218 lbs.
311040	Double Top Tine Hay Spear W/Bottom Stabilizers	48"	190 lbs.
311045	Quad Bottom Hay Spear, 45" Wide	48”	262 lbs.
311050	Quad Bottom Hay Spear, 60" Wide	48"	280 lbs.
311060	Quad Bottom Hay Spear, 75" Wide	48"	304 lbs.

HAY SPEAR SPEC SHEET
