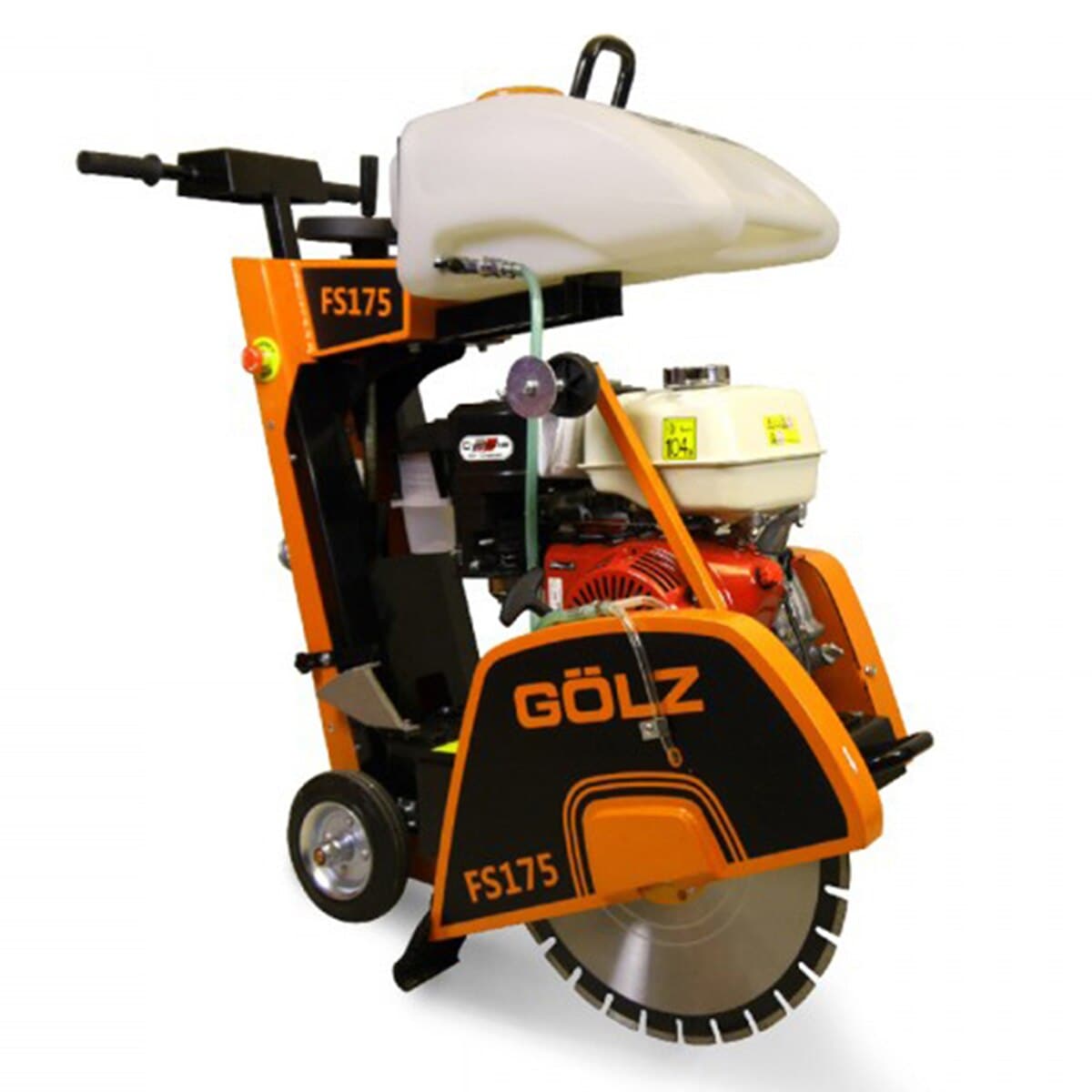

Golz Floor Saw FS175
SKU: FS175
Compact and solid Push Saw for small services and repair jobs in roadworks with adjustable height and anti-vibration handles for a clear focus on operators convenience
13 HP Honda gas engine- Blade 18" (450 mm) - Cutting depth 6 1/2" (165 mm)

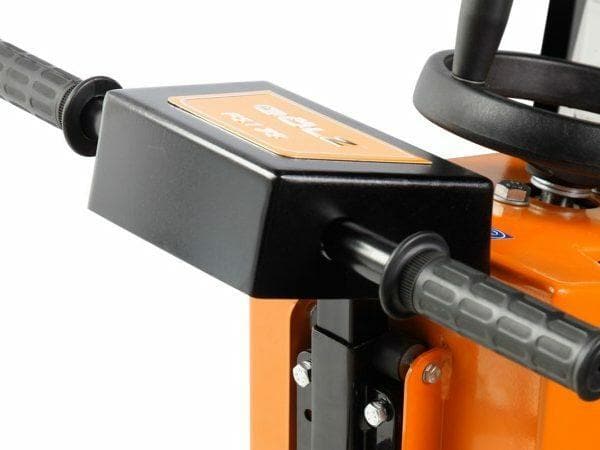

- Adjustable anti vibration handles for operators comfort

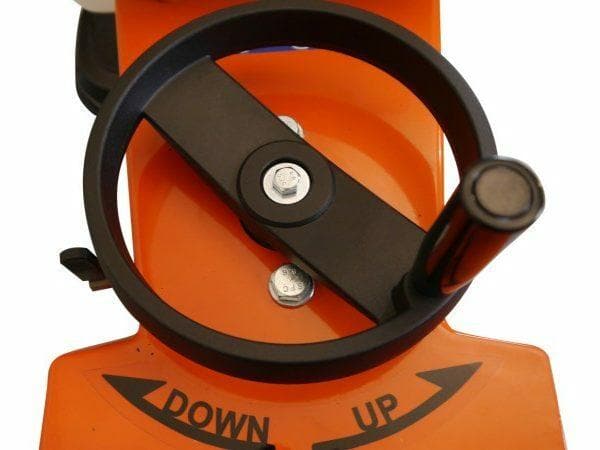

- Cutting depth adjustment by handwheel
- Cutting depth indicator
- Front cutting guide
- Parking break

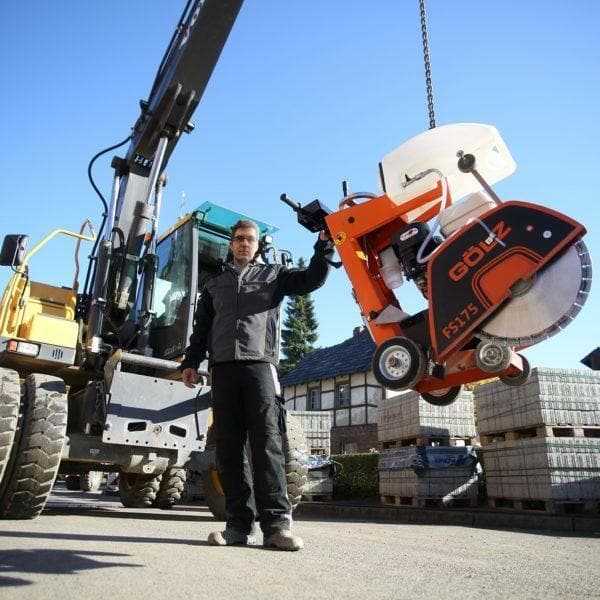

- Lifting frame

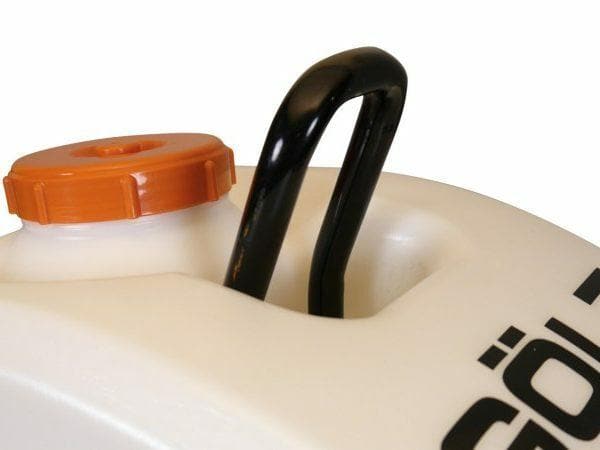

- 25 Liter water tank, easy to fill
- Big rear wheels for good chassis clearance
- Durable Poly-V belt for an optimum of power transmission
Specification
| US Standard | Metric | |
| Max Cutting depth | 6 1/2 in. | 165 mm |
| Blade diameter | 18 in. | 450 mm |
| Shaft size | 1 in. | 25,4 mm |
| Water tank | 26 1/2qt | 25 Liter |
| Engine | Honda GX390 | |
| Engine power (net power) | 13HP/9,5kW (11,8HP/8,7kW) | |
| Shaft speed | 2.300 rpm | |
| Feed motion | Push | |
| Cutting depth adjustment | Handwheel | |
| Power transmission | Poly-V Belt | |
| Hand Arm Vibrations | 4,5 m/s2 | |
| Dimensions (LxWxH) | 48 in. x 19 in. x 46 in. | 1220x491x1160 mm |
| Weight | 243 lbs. | 110 kg |
| Order-No. | 0282 175 6000 |
