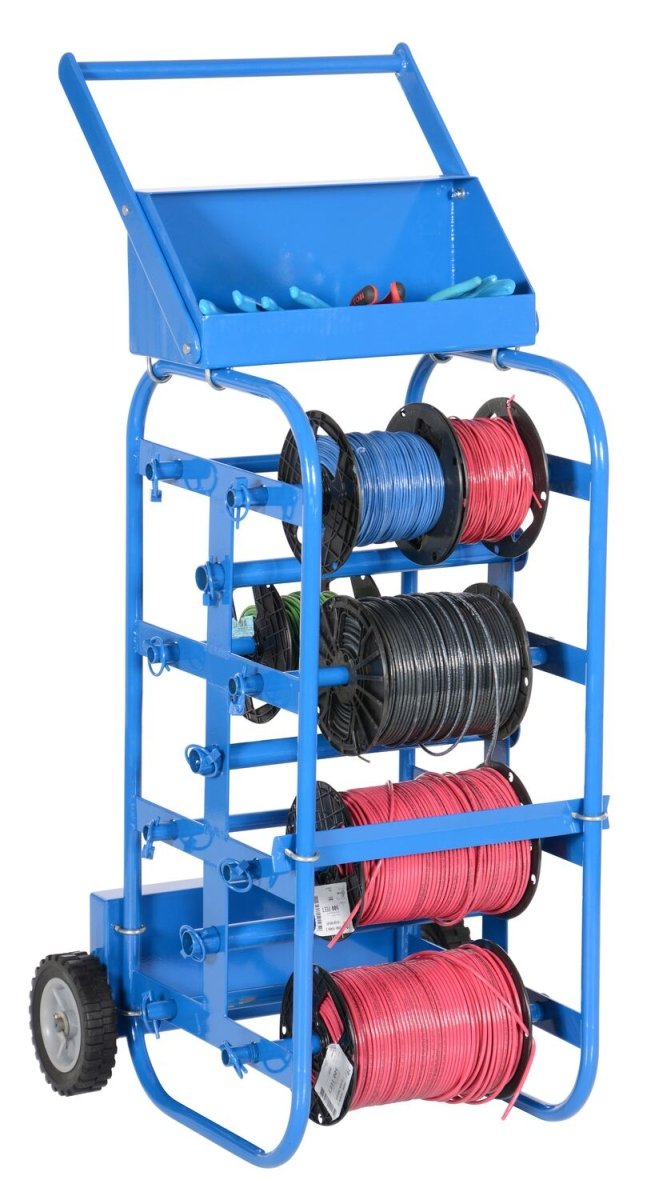

Economy Wire Reel Caddy
SKU: WIRE-D-E
Move wire reels and dispense wire in vertical and horizontal position. Caddy includes eleven (11) spool bars for handling various size reels.
Three (3) large 1-1/6" diameter axles handle 14" maximum reel diameter while the eight (8) smaller 3/4" diameter axles handle 7" maximum reel diameter. Storage tray on top for added versatility. Portable with 6" diameter semi-pneumatic wheels and 43-1/2" high handle. Total uniform capacity is 150 lbs. (90 lbs. on large spindles and 60 lbs. on small spindles). Steel construction with painted finish. Ships knockdown.
|
Economy Wire Reel Caddy |
||||||
| Model | Image | PDF's | Description | Capacity (lbs) |
Overall Size (WxLxH) |
Wt. (lbs) |
| WIRE-D-E |  |

|
Economy Wire Reel Caddy | 150 | 17-3/4" x 19-1/2" x 43-1/8" | 41 |
KEY: = Approval Drawing -- = Warranty --
= Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
