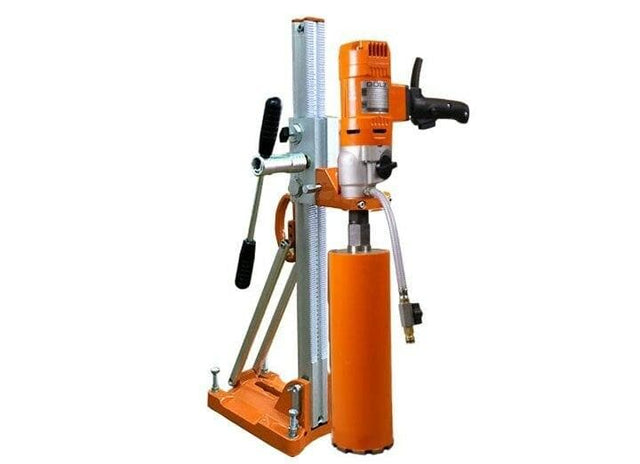

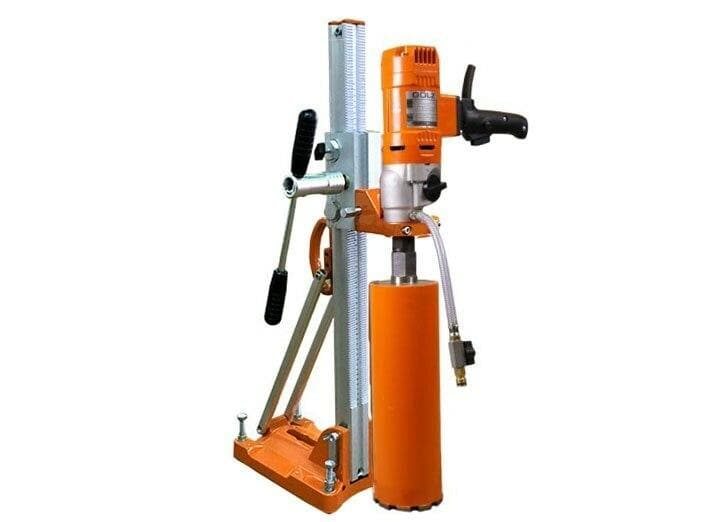

DS250S Full Core Rig Setup
SKU: DS250S-FB20P
DS250S Core Rig Setup is a Lightweight aluminum drill stand with an anchor-/vacuum base
- Lightweight and solid drill stand: 26.5lbs (12 kg)
- Travel length: 26 in. (650 mm)
- Maximum diameter: 10 in. (250 mm)
- Angle drilling device up to 45°
- Bubble levels for precise setup
- Left and right handed operation
- Laser pointer for accurate setup
- Aluminium anchor-/vacuum base
| Motor | FB23P |
| Voltage | 110V, 20A, 50-60 Hz |
| Power (Input/Output) | 2,7 kW (1,75 kW) |
| RPM | 520/1400 min-1 |
| Drilling Diameter Handheld | 7/8 in. (20 mm) - 4 in. (110 mm) |
| Drilling Diameter Stand | 7/8 in. (20 mm) - 8 in. (200 mm) |
| Dril bit connection | 1є in. UNC |
| Safety | PRCD |
| Weight | 13 lbs (5,9 kg) |
Specifications
| Motor | FB20P |
| Voltage | 110V, 20A, 50-60 Hz |
| Power (Input/Output) | 2,7 kW (1,75 kW) |
| RPM | 450/1200/2500 min-1 |
| Drilling Diameter Handheld | 7/8 in. (20 mm) - 4 in. (110 mm) |
| Drilling Diameter Stand | 7/8 in. (20 mm) - 8 in. (200 mm) |
| Dril bit connection | 1є in. UNC |
| Safety | PRCD |
| Weight | 14 1/2 lbs (6,7 kg) |
| Order number | 0295 007 5080 |
Specifications
| Motor | FB33P |
| Voltage | 110V, 20A, 50-60 Hz |
| Power (Input/Output) | 2,2 kW (1,5 kW) |
| RPM | 520/1400/2900 min-1 |
| Drilling Diameter Handheld | 7/8 in. (20 mm) - 4 in. (110 mm) |
| Drilling Diameter Stand | 7/8 in. (20 mm) - 8 in. (200 mm) |
| Dril bit connection | 1є in. UNC |
| Safety | PRCD |
| Weight | 11 lbs (6,5 kg) |
| Order number | 0295 007 5082 |
