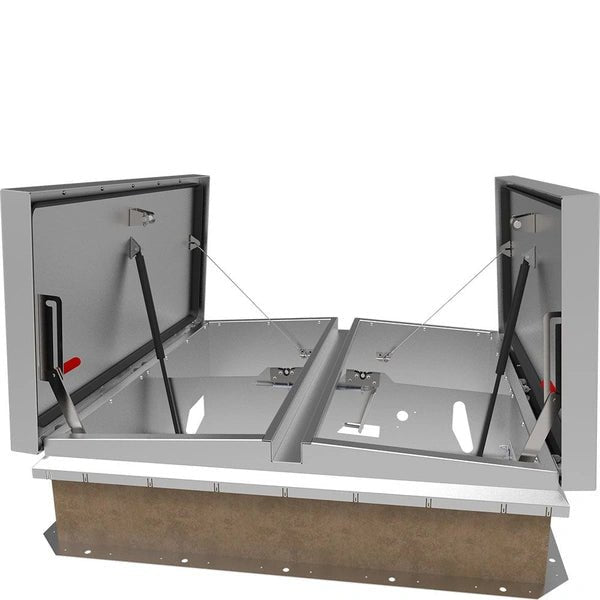

Double Door SafeMAX™ Smoke Vent

Name: Double Door SafeMAX™ Smoke Vent
Brand: Babcock-Davis
Availability: InStock

Call for Pricing

Shipping calculated at checkout.

2-3 Week Lead Time

Safe & Secure Payments.

The Babcock-Davis Double Door SafeMAX Smoke Vent provides UL793 listed performance and is engineered with metal covers providing an emphasis on reliability and affordability.

SafeMAX Smoke Vents are ideal for factory and storage/warehouse occupancies.

Design considerations include: total vent area required by code and application, effective vent area, and the roof structural support system.

Model	BSVS
Door	Double Leaf
Material	Aluminum: 11 gauge Steel: 14 gauge galvanneal
Finish	Aluminum: Mill Steel: Powder Coat, High Reflectance White
Cover	Formed metal cover with liner internally stiffened to withstand a live load of 40psf
Curb	Single wall curb with EZ tab counterflash and mounting flange
Insulation	1 inch polyiso R-6 in cover and around curb
Gasket	Extruded EPDM adhesive backed gasket seal, continuous around cover
Hinge	Heavy-duty pintle hinge with stainless steel hinge pins
Springs	Gas spring with damper opens cover against 10psf snow load in not less than 2 seconds
Hold Open Arm	Zinc plated steel automatic hold open arm locks cover in open position
Latch	Zinc plated steel rotary latch designed to hold covers closed against 90psf for double doors. Opens manually by external and internal pull cables. Opens automatically with a fusible link at standard temperature 165°F.
Certification	UL 793 listed
Minimum Size	48 inches by 48 inches
Maximum Size	60 inches by 120 inches \| 72 inches by 96 inches
Warranty	5 years

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL	MATERIAL	WIDTH	X	LENGTH	DOOR	CURB	OPENING	LINK TEMP	CLOSING		OPTIONS
BSVS			X		D				R	—
	A - Aluminum Curb & Cover B - Steel Curb & Aluminum Cover W - Steel Curb & Cover	48" x 48" 48" x 72" 48" x 96" 72" x 72" 60" x 60"			D - Double Leaf	1 - Single Wall 2 - Double Wall 3 - Curb Mount	N - No Electrical L - 24VDC/24VAC H - 110VAC / 240VAC A - Linear Actuator	165 212 280 350 360 450	R - Rooftop Close W - Manual Winch L - Linear Actuator		OP1 - Door Position Sensor

Additional sizes and options available, call for more information.
