Auger Bit Extensions

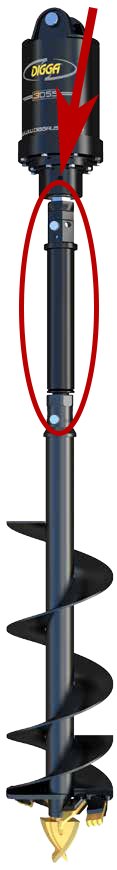

Increase the drilling depth of your auger bit with a Digga extension.

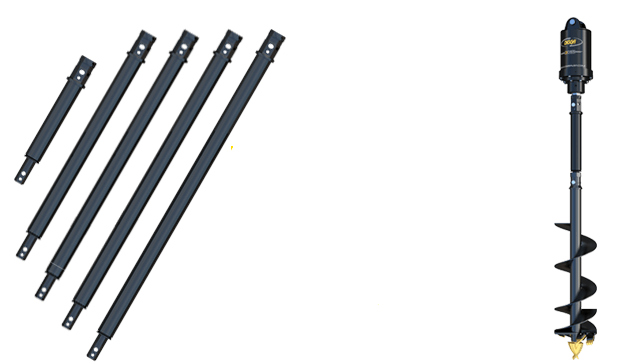

Available for drive units with 2" hex, 2.5" hex, 3" hex, and 100mm square shafts, Digga's outer & inner extensions come in sizes ranging from 2', 3', 4', 6', 8' and 10' lengths.

Features:

• Easy fit design - Digga auger extensions provide you with an easy fit design solution with no adapters required, helping you connect and disconnect your augers faster.
• Reduce excess play - With a welded hub and shaft, these auger extensions reduce excess play in the connections, ensuring you drill a straighter hole.
• Telescopic Design (XT25 & XT40) - A telescopic design makes it easier to drill deeper as well as easier to transport. Inner extensions can be slid inside outer extensions and augers saving space and reducing loading time.
• Various Lengths available - Length options available including 2 ft. / 3 ft. / 4 ft. / 6 ft. / 8 ft. & 10 ft. Extensions.
• American made quality - Our quality products are manufactured in-house by Digga in America. We use only the highest-grade materials and strictest quality control.

	Outer - XO20	Outer - XO25	Inner - XT25	Outer - XO30	Outer - XO40	Inner - XT40	Outer - XO40-HD
Type	Outer	Outer	Telescopic (Inner)	Outer	Outer	Telescopic (Inner)	Outer
Auger Bit Suitability	A4 / RC4	A6 / RC6 / DR6 / A8 / RC8	A6 / RC6 / DR6 / A8 / RC8	RC10	RC11	RC11	RC11
Drive Suitability	1MDS - 4DSS	4DDS - 7DDS	4DDS - 7DDS	9DDS - 16DDS	20DDS - 30DDS	20DDS - 30DDS	SD45 - SD70
Machine Suitability	Up to 4.5 ton.	Up to 15 ton.	Up to 15 ton.	13 - 16 ton.	Up to 30 ton.	Up to 30 ton.	Up to 50 ton.
Maximum Torque	5000 ft.-lbs.	11500 ft.-lbs.	7000 ft.-lbs.	16100 ft.-lbs.	30800 ft.-lbs.	30800 ft.-lbs.	70000 ft.-lbs.
Standard Hub	2.0 in. Hex	2.5 in. Hex	2.5 in. Hex	3.0 in. Hex	100 mm Square	100 mm Square	100 mm Square
Body - Dia x Wall (in.)	3.5" x 0.3"	5.5" x 0.337"	2.5 in. Hex	6.75" x 0.375"	8.625" x 0.322"	100 mm Square	8.625" x 0.5"
Length Options (ft.)	2' / 3' / 4' / 6' / 8'	4' / 6' / 8' / 10'	4' / 6' / 8'	4' / 6' / 8' / 10'	6' / 8' / 10'	6' / 8' / 10'	6' / 8' / 10'
Availability	Stock Item
