Concrete Anchor Strap (Various Lengths)

Concrete Anchor Strap — Disposable Anchorage Point with 5,000 lb. Support Load

The Palmer Safety Concrete Anchor Strap is a single-use, disposable concrete anchor point designed for fall protection applications in construction and industrial environments. Built from 1.73" wide red polyester webbing with a full-length wear pad, it wraps around a structural concrete member and provides a compliant tie-off point rated to support 5,000 lbs. Available in lengths from 4 ft. to 12 ft. with either a large D-ring or dual textile loops, it accommodates a wide range of structural column and beam sizes. The strap meets or exceeds ANSI Z359.18-2017 and OSHA 1926.502, 1910.140, and 1910.66 standards, making it a code-compliant solution for contractors requiring temporary anchorage on concrete structures.

Technical Specifications

Available Models & Lengths

Unlike permanent or reusable anchor hardware that requires drilling or embedding into concrete, this disposable strap wraps around an existing structural member and is removed after use — eliminating the need for core drilling, epoxy anchors, or post-installation patching. The dual-model lineup (D-ring or dual-loop termination) gives contractors flexibility to connect standard snap hooks or carabiners directly or to daisy-chain with compatible lanyards and SRLs.

Key Features & Benefits

Disposable Single-Use Design

The strap is intended as a disposable concrete anchor point, eliminating the need to track, inspect, and recertify reusable hardware after each use. For contractors managing multiple simultaneous work zones, this reduces equipment overhead and simplifies compliance recordkeeping.

Full-Length Wear Pad

A full-length wear pad protects the polyester webbing where it contacts the concrete structure, reducing abrasion that could compromise the strap's rated breaking strength of 25 kN minimum. This is especially important on rough-formed or aggregate-exposed concrete surfaces.

1.73" Wide Polyester Webbing

The wide webbing distributes load across the anchor point and resists cutting or pinching against concrete edges. Polyester construction provides resistance to UV degradation and moisture compared to natural fiber alternatives.

Large D-Ring or Dual Textile Loop Termination

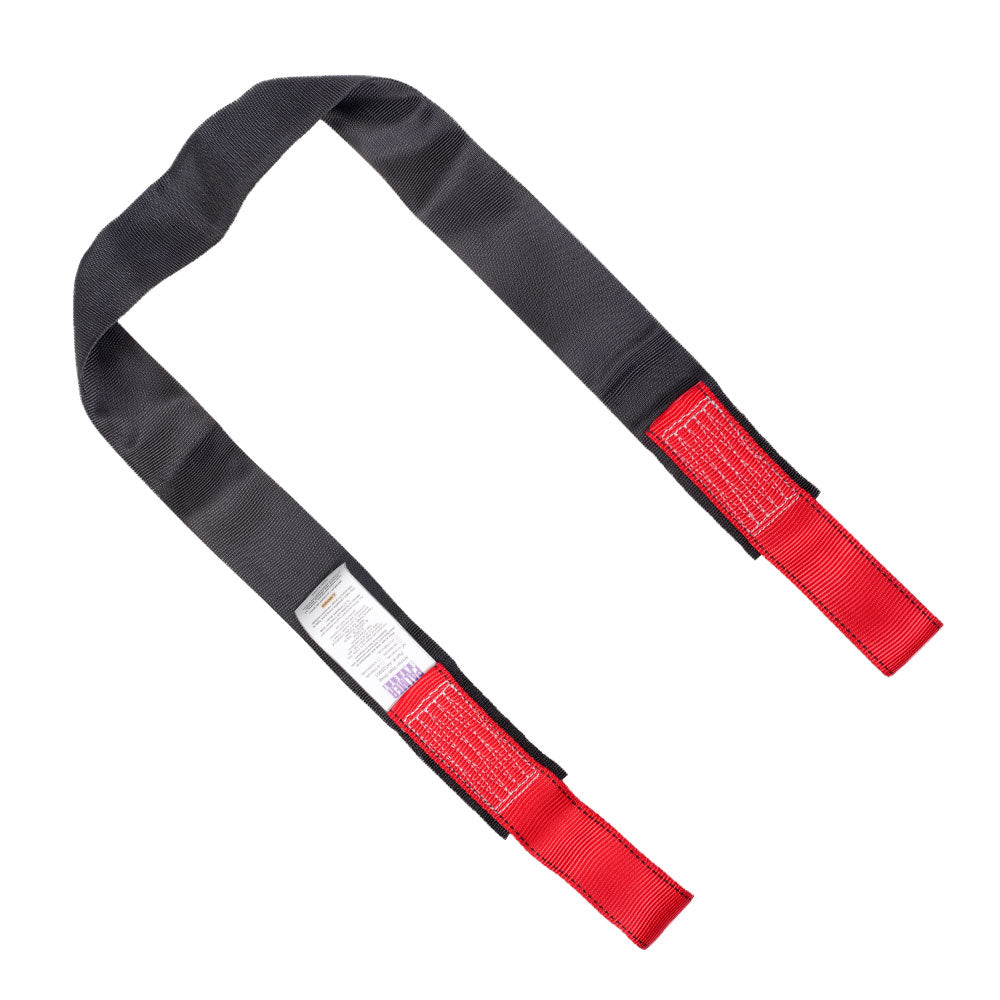

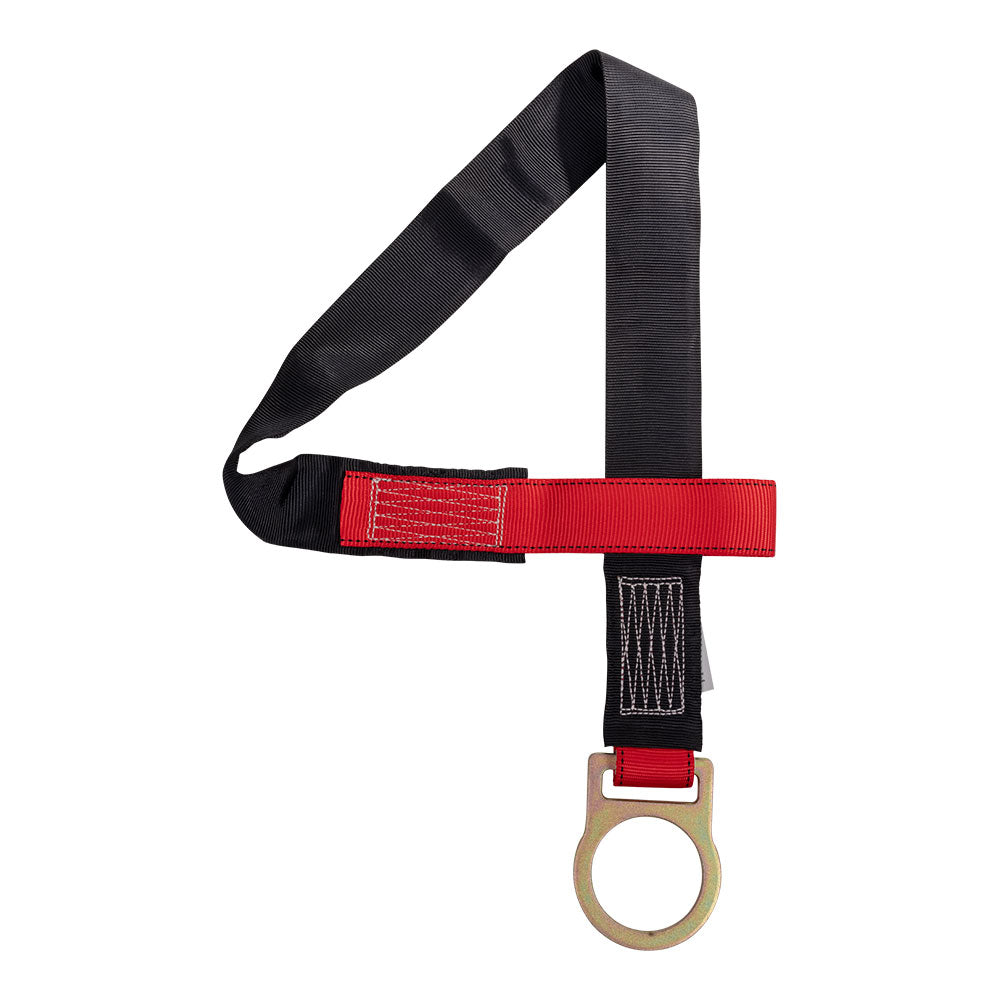

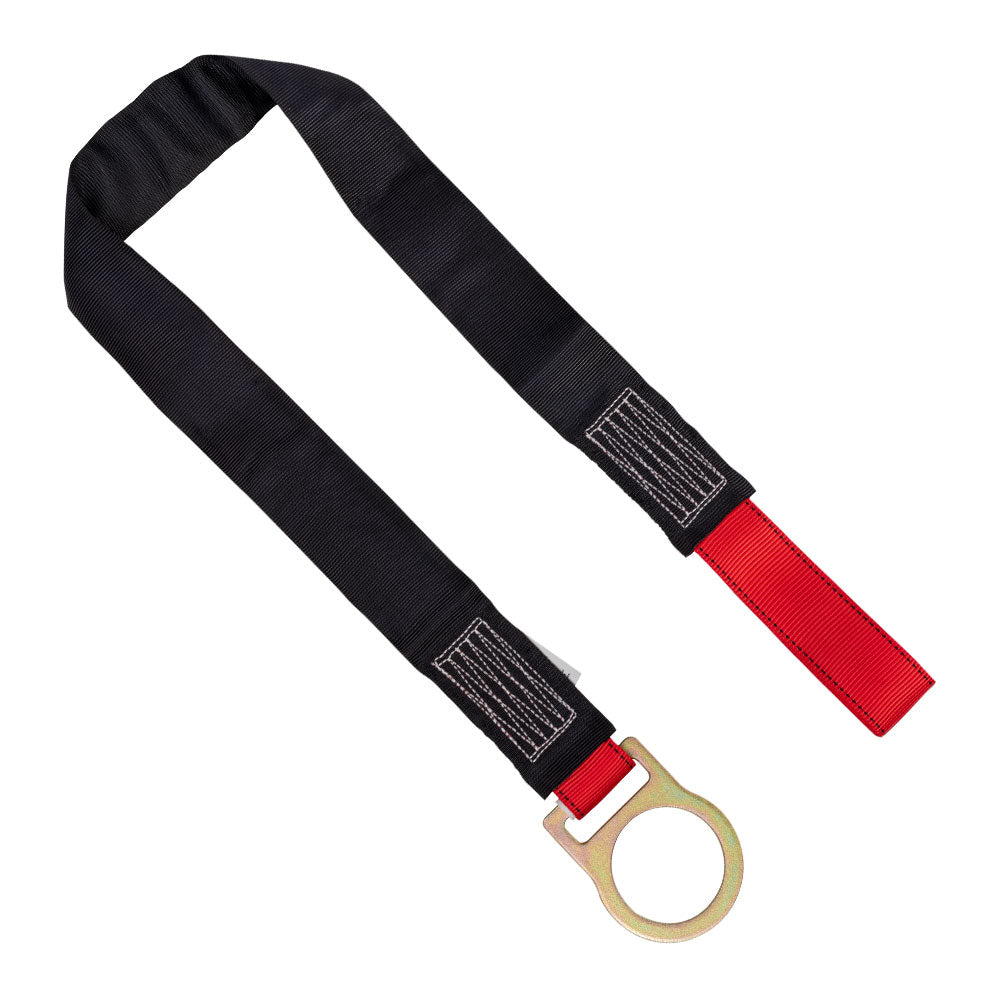

Models ending in -000 feature a large steel D-ring (electro-deposited zinc plated, deburred and polished) for direct connection of fall arrest hardware. Models ending in -001 feature dual textile loops, allowing the strap to be threaded and secured without a metal connector at the anchor end — useful where metal-on-concrete contact is a concern or where a choker-style wrap is preferred.

ANSI Z359.18-2017 and OSHA Compliant

The strap meets or exceeds ANSI Z359.18-2017 and OSHA standards 1926.502, 1910.140, and 1910.66, covering construction fall protection, personal fall protection systems, and powered platform operations respectively. Contractors can deploy these straps with confidence on OSHA-inspected job sites.

Multiple Length Options

Available in 4 ft., 6 ft., 8 ft., 10 ft., and 12 ft. lengths to accommodate concrete columns, beams, and structural members of varying cross-sections. Selecting the correct length ensures a snug wrap without excess webbing that could create a tripping hazard or reduce anchor efficiency.

Common Applications

Concrete Column Tie-Off

Wrap the strap around a concrete column to establish a compliant fall arrest anchor point for workers performing tasks at elevation adjacent to the column.

Concrete Beam Anchorage

Loop the strap over or around exposed concrete beams in structural frames to provide temporary overhead or horizontal anchor points during steel erection, formwork, or finishing operations.

Temporary Fall Protection During Construction

Deploy as a disposable anchor during concrete pours, post-tension work, or elevated slab operations where permanent anchor hardware has not yet been installed.

Powered Platform and Suspended Access Operations

Compliant with OSHA 1910.66 (powered platforms), making it suitable for use as an anchorage point during building maintenance or construction operations involving suspended work platforms.

Compatible Materials

• Concrete columns
• Concrete beams
• Concrete structural members capable of supporting a minimum 5,000 lb. load

Product Documents

• Download Tech Sheet
• Download Manual
• Download Declaration of Conformance — A4125000
• Download Declaration of Conformance — A612500
• Download Declaration of Conformance — A812500

Frequently Asked Questions

Q: Can this strap be reused after a fall event?
A: No. This is a disposable anchor strap intended for single use. It should be removed and discarded after use or after any fall event, per the disposable design designation.

Q: What is the maximum user weight this strap supports?
A: Under ANSI Z359.18-2017, the strap is rated for users weighing 130–310 lbs. Under OSHA requirements, the rated user weight capacity is 420 lbs.

Q: What is the difference between the -000 and -001 model series?
A: The -000 series (A4125000, A6125000, A8125000, A10125000) features a steel D-ring on one end and a textile loop on the other. The -001 series (A4125001 through A12125001) features textile loops on both ends, allowing a choker-style wrap without a metal D-ring termination.

Q: What structure must the strap be attached to?
A: The strap must be attached to a structure capable of supporting a minimum of 5,000 lbs., consistent with OSHA anchorage strength requirements.

Q: Which OSHA standards does this strap comply with?
A: The strap meets or exceeds OSHA 1926.502 (construction fall protection), OSHA 1910.140 (personal fall protection systems), and OSHA 1910.66 (powered platforms).
