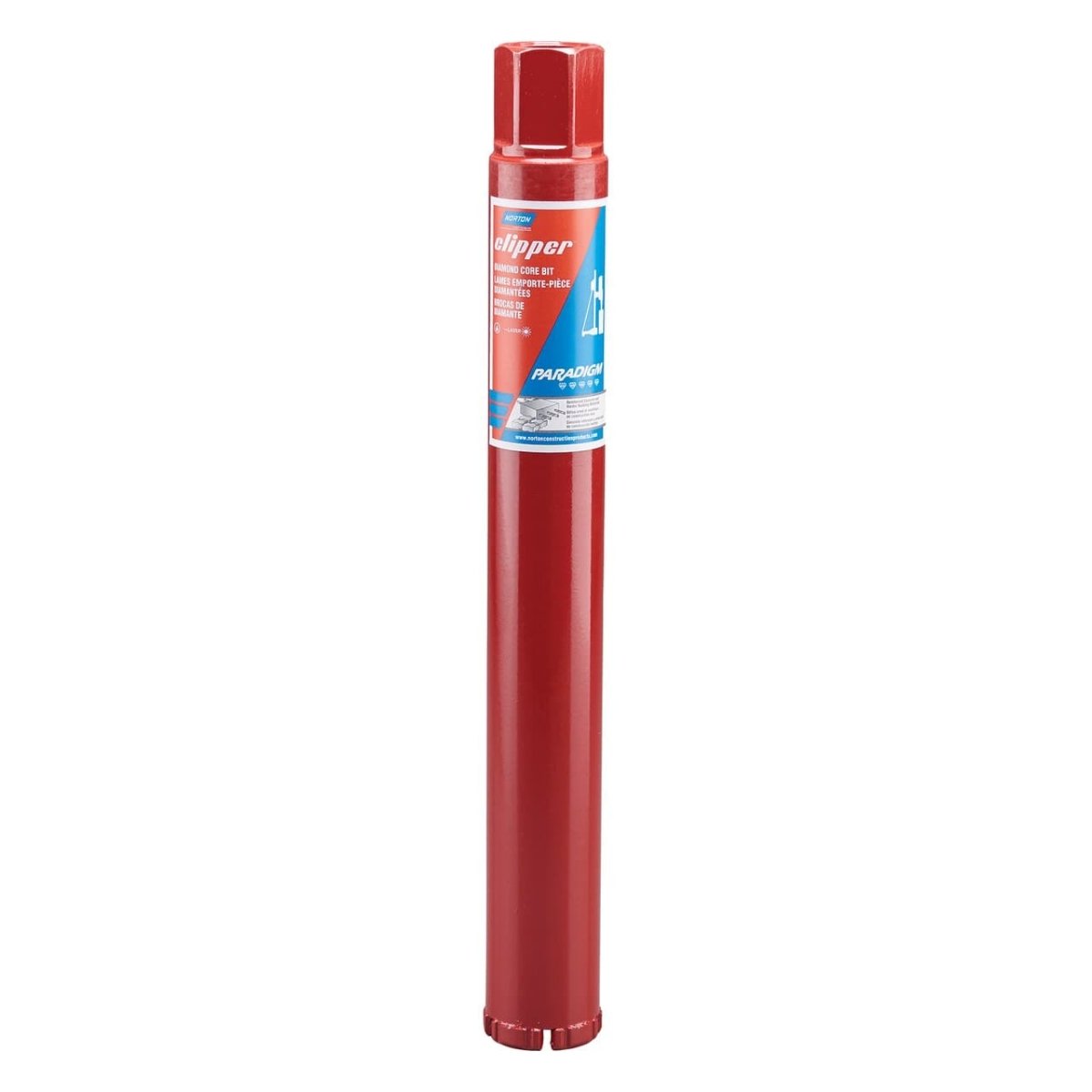

Clipper Paradigm Critically Hard Wet Segmented Rim Core Bit
SKU: 70184601410
Clipper Paradigm Critically Hard Wet Segmented Rim Core Bit designed to be used with Core Drilling Equipment
This Norton Clipper Paradigm core bit is designed with turbo segment thats permits the core to penetrate quick and efficiently into the toughest cured concrete. With significantly increased performance over existing products in the market today, these provide the best tier solution without the premium price tag.
- Dry/wet/both : Wet
FEATURES & BENEFITS
- The Norton Clipper Paradigm's strong core is laser-welded to withstand demanding applications
- The tapered segment design allows for faster penetration
- The Paradigm's large segment height helps to extend the product life
- 16 in. tube length to produce a 13 in. coring depth
- 2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.140 In. 0.945 In. 4 1 1/4 In.-7 Female 2000 70184601410
- 2-1/2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.140 In. 0.945 In. 6 1 1/4 In.-7 Female 1300 70184601411
- 3 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.140 In. 0.945 In. 7 1 1/4 In.-7 Female 1300 70184601412
- 3-1/2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.140 In. 0.945 In. 7 1 1/4 In.-7 Female 1300 70184601413
- 4 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.150 In. 0.945 In. 9 1 1/4 In.-7 Female 1000 70184601414
- 4-1/2 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.150 In. 0.945 In. 9 1 1/4 In.-7 Female 800 70184601415
- 5 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.150 In. 0.945 In. 11 1 1/4 In.-7 Female 800 70184601416
- 6 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.160 In. 0.945 In. 12 1 1/4 In.-7 Female 665 70184601417
- 7 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.185 In. 0.945 In. 14 1 1/4 In.-7 Female 600 70184601418
- 8 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.185 In. 0.945 In. 14 1 1/4 In.-7 Female 500 70184601419
- 12 In. Diameter
SEGMENT THICKNESS SEGMENT LENGTH NUMBER OF SEGMENTS CONNECTION TYPE MAX OPERATING SPEED RPM PART # 0.220 In. 0.945 In. 16 1 1/4 In.-7 Female 400 70184601706 0.945 In. 19 1 1/4 In.-7 Female 330 70184601707
