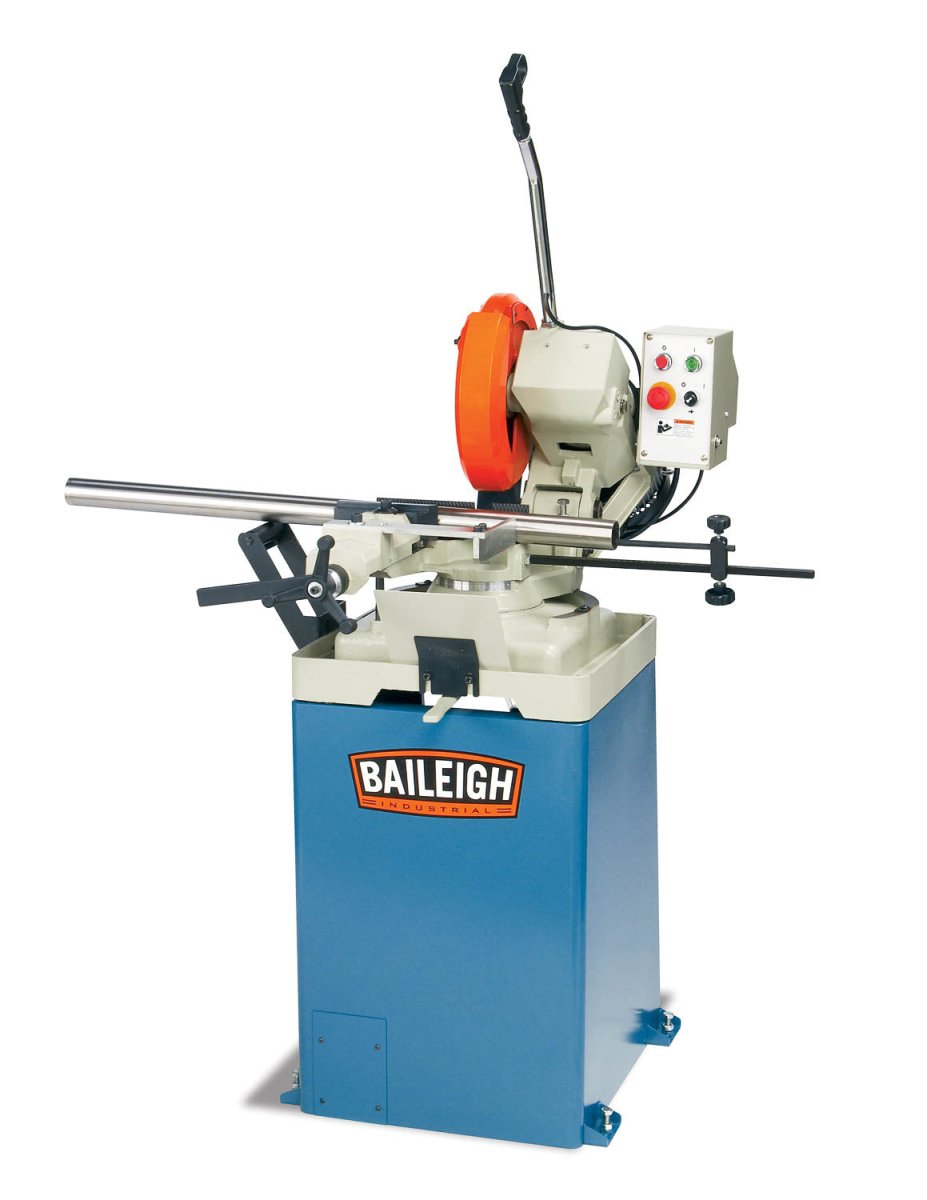

Circular Coldsaw Cs-315Eu
SKU: BA9-1002450
Why is the manual CS-315EU our best-selling industrial cold saw? Because we designed it to make reliably perfect, mill-like cuts for many years—at a price that won’t break the bank.
- Accepts a 12.5” blade (included).
- 3.5” round tube capacity at 90°.
- Miters 45° to the left and right.
- Spins at 52 rpm to cut through solids, tubing, or pipe.
- Perfect for cutting mild steel, but can handle other material with the proper blade.
- Strong 2.5 hp motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life.
- Runs on 220-volt 1-phase 60Hz power.
- Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength.

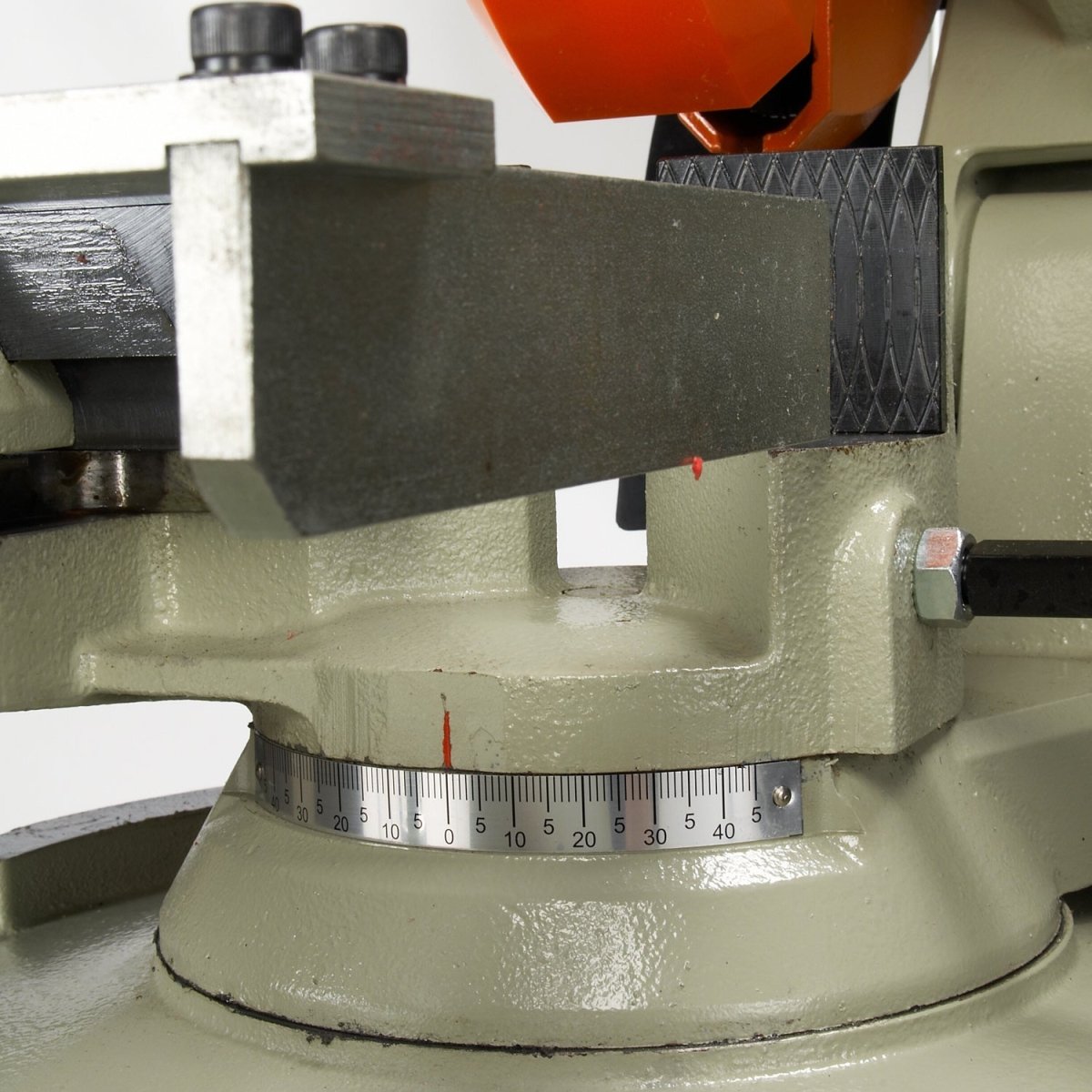

- European-style vise has a taper lock system for fast clamping and unclamping to increase production.
- Serrated vise jaws grip the material tightly, so it won’t budge during cutting.
- Vise clamps on both sides of the cut, reducing blade chatter and prolonging blade life.

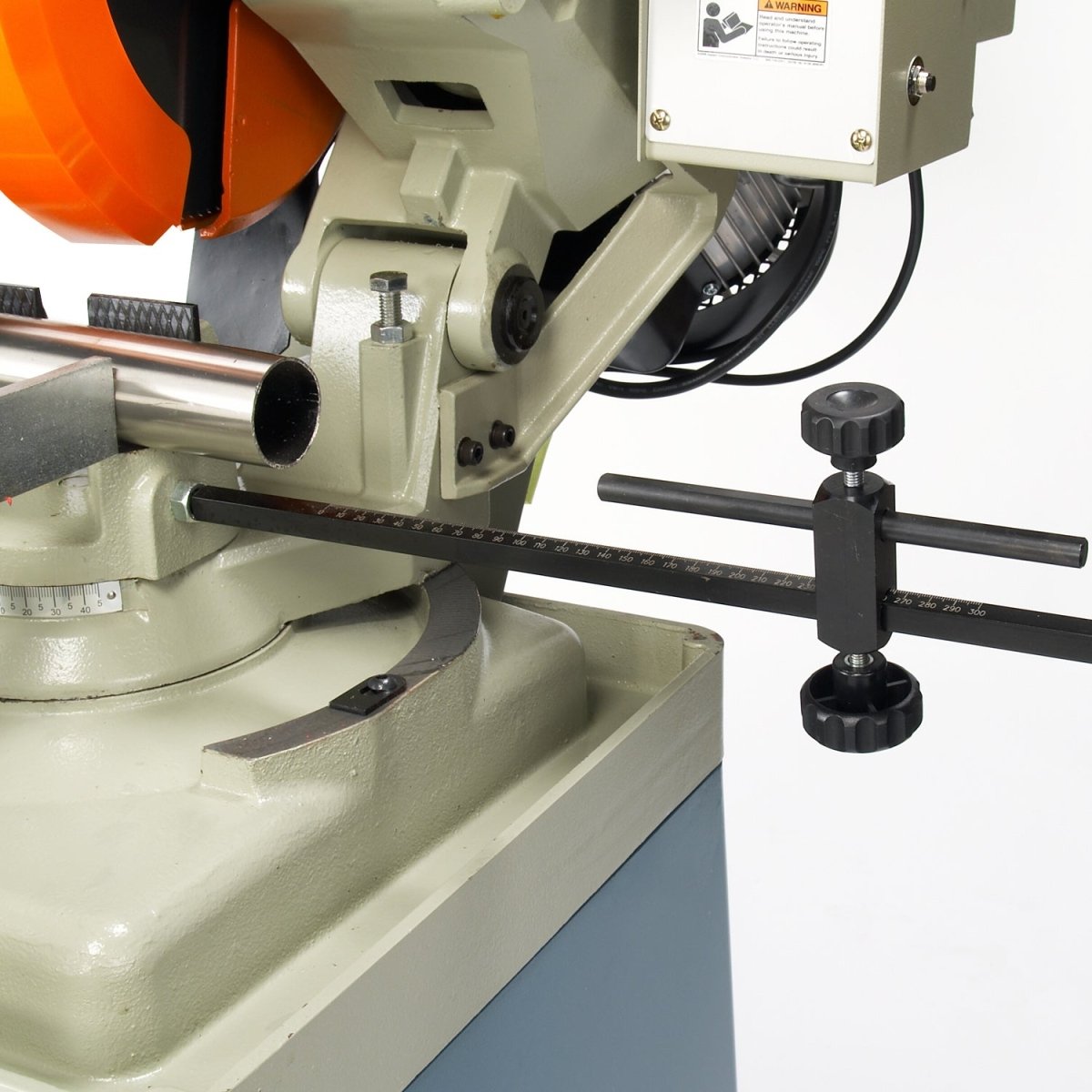

- Stop rod helps you easily cut repeatable lengths for production runs.
- Rigid cast iron base stabilizes the machine for straight, accurate cuts.
- Heavy-duty molded steel stand raises the saw to a convenient cutting height.

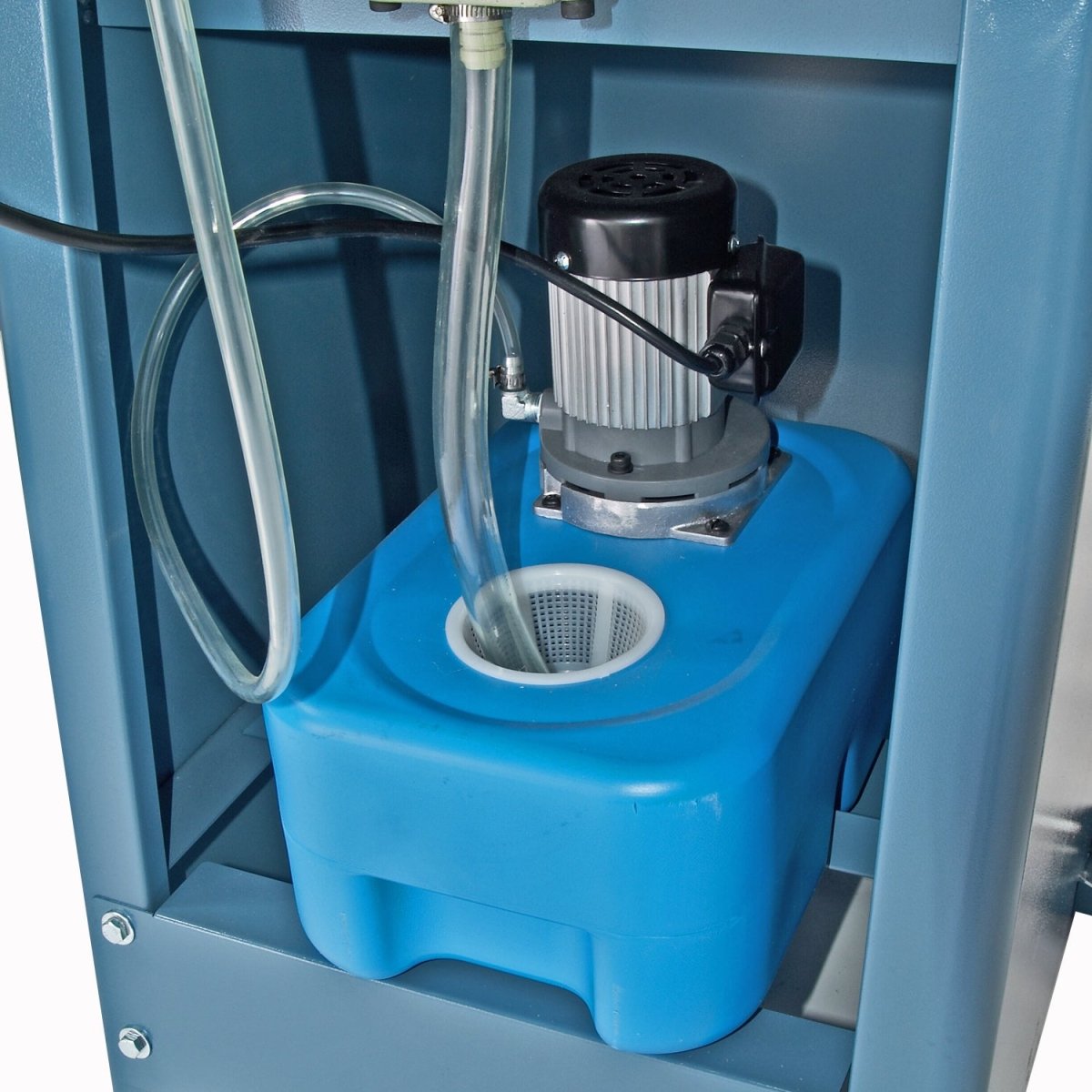

- Powerful integrated coolant pump lubricates the blade and washes chips away.
- Flood coolant system increases cut quality, makes the saw easier to handle, and makes the saw and blades last longer.
- We keep replacement parts in stock for fast shipping.
- Covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone from our team of experienced metalworkers.
Recommended for:
- Small to medium industrial fabrication shops
- Hot rod shops
| Item Number | CS-315EU |
|---|---|
| Max. Blade Diameter | 12.5" |
| Operation | Manual |
| Head Miter | 45° Left / 45° Right |
| Round Solid at 45° | 2" |
| Square Tube at 45° | 3.2" x 3.2" |
| Round Tube at 45° | 3.5" |
| Rectangle Tube at 45° | 3.25" x 2.75" |
| Round Solid at 90° | 2" |
| Rectangle Tube at 90° | 4" x 2.75" |
| Square Tube at 90° | 3.2" x 3.2" |
| Round Tube at 90° | 3.5" |
| Coolant System | Yes |
| Vice Style | Single Action with Cam Lock |
| Max. Vice Opening | 4.72" |
| Head Style | Pivot |
| Arbor Size | 1.26" |
| Motor | 2.5 hp |
| Blade Speed | 52 (rpm) |
| Power | 220V / 1-phase |
| Shipping Weight | 440lbs |
| Shipping Dimensions (Inches) | 48x31x44 |
* specifications subject to change without notice.
