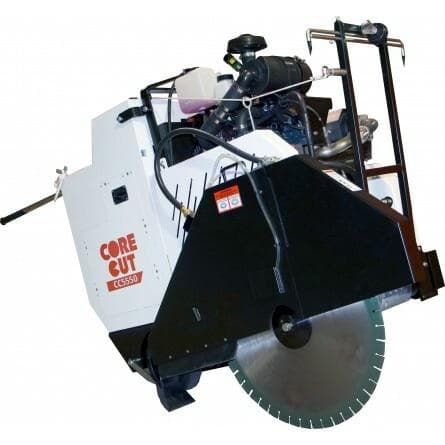

CC5555GK Rear Pivot Walk Behind Saw
SKU: 84977
CC5555GK Rear Pivot Walk Behind Saw
Rear Pivot, Three Speed Walk-Behind Saw
14" to 36" Blade Capacity
57HP Kubota Gas Engine
Features & Benefits:
• Kubota® liquid-cooled gasoline WG1605 LSI engine that is fully complaint with EPA regulations
• Murphy PV480, 4.3" controller display
• Easy to maneuver rear-pivot self-propelled drive
• 4-position handlebar setup (0°, 15°, 30°, 45°)
• 3-Speed gear box standard
• Pull/twist-lock for rear positraction and transmission neutral
• Quick release blade shaft & flange
• Heavy duty crated steel frame base for increased rigidity
• Square tube skeletal upright frame for improved strength
• Removable access panels for easy, access to speed routine maintenance
• Electronic depth display and stop function
• Toggle switch throttle control
| CC555GK Specifications | |
| Max.Depth of Cut with 14" Blade | 3-3/4" |
| Max. Depth of Cut with 20" Blade | 6-3/4" |
| Max. Depth of Cut with 26" Blade | 9-3/4" |
| Max. Depth of Cut with 30" Blade | 11-3/4" |
| Max. Depth of Cut with 36" Blade | 14-3/4" |
| Arbor Size | 1" with single drive pin |
| Blade Shaft Drive | 7 belts |
| Blade Mounting | Right or left |
| Blade Raise/Lower | Electro-hydraulic pump |
| Fuel Tank | 5.5 gallon with digital fuel display |
| Transmission | Eaton Model 7 |
| Drive Speed | 0-368 feet per minute |
| Includes |
Blade shaft tachometer, hour meter, Frame Lift, Cutting depth indicator, Quick disconnect blade flanges, Telescoping front pointer, GM gel battery, Removable panels |
| Blade Capacity | Motor/Engine Power | Engine/Motor Make | Power Source | Part Number | Catalog Number |
|---|---|---|---|---|---|
| 14" | Gasoline | Kubota® | Gas | 5802300 | 84977 |
| 20" | Gasoline | Kubota® | Gas | 5802301 | 84978 |
| 26" | Gasoline | Kubota® | Gas | 5802302 | 56861 |
| 30" | Gasoline | Kubota® | Gas | 5802303 | 84985 |
| 36" | Gasoline | Kubota® | Gas | 5802304 | 56912 |
