Cantilever Carts
SKU: CANT-3048

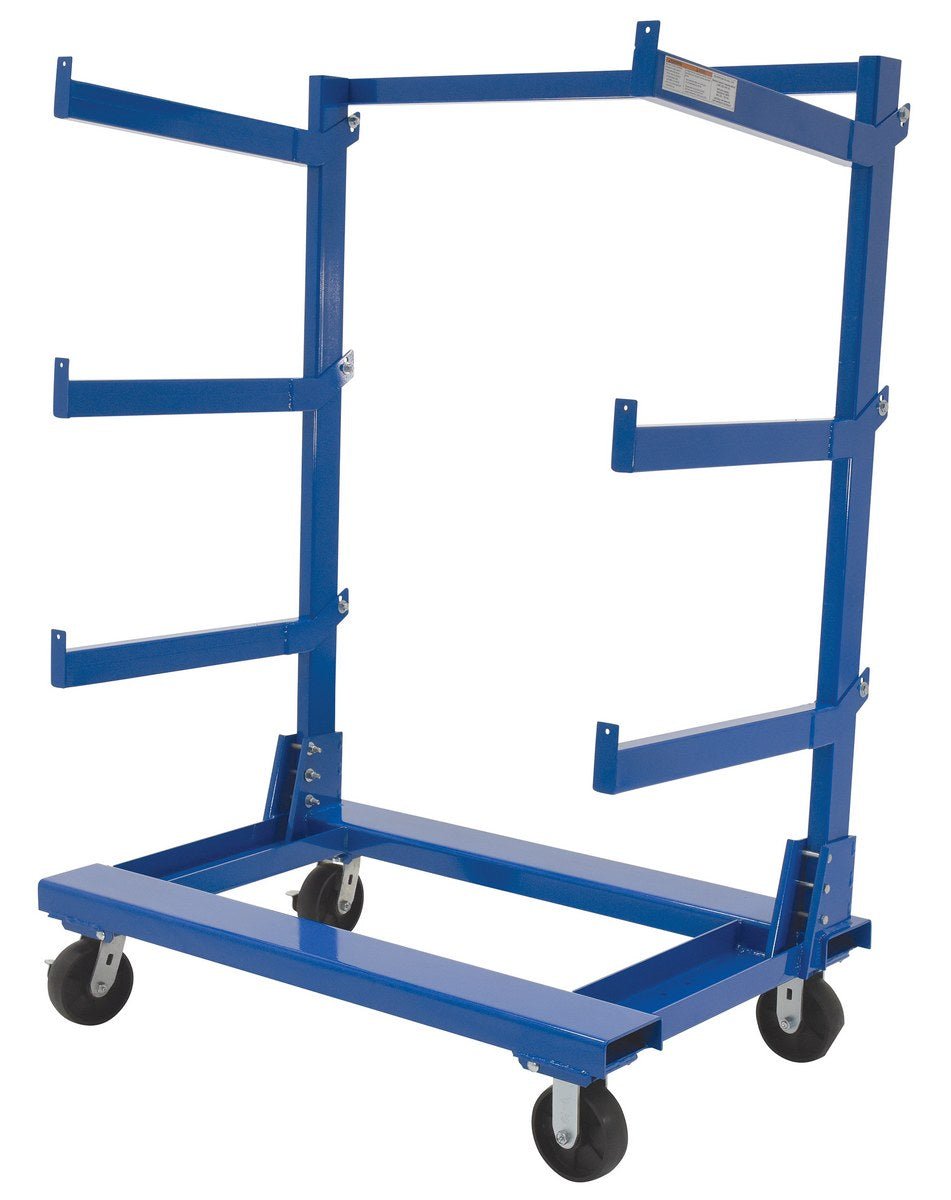

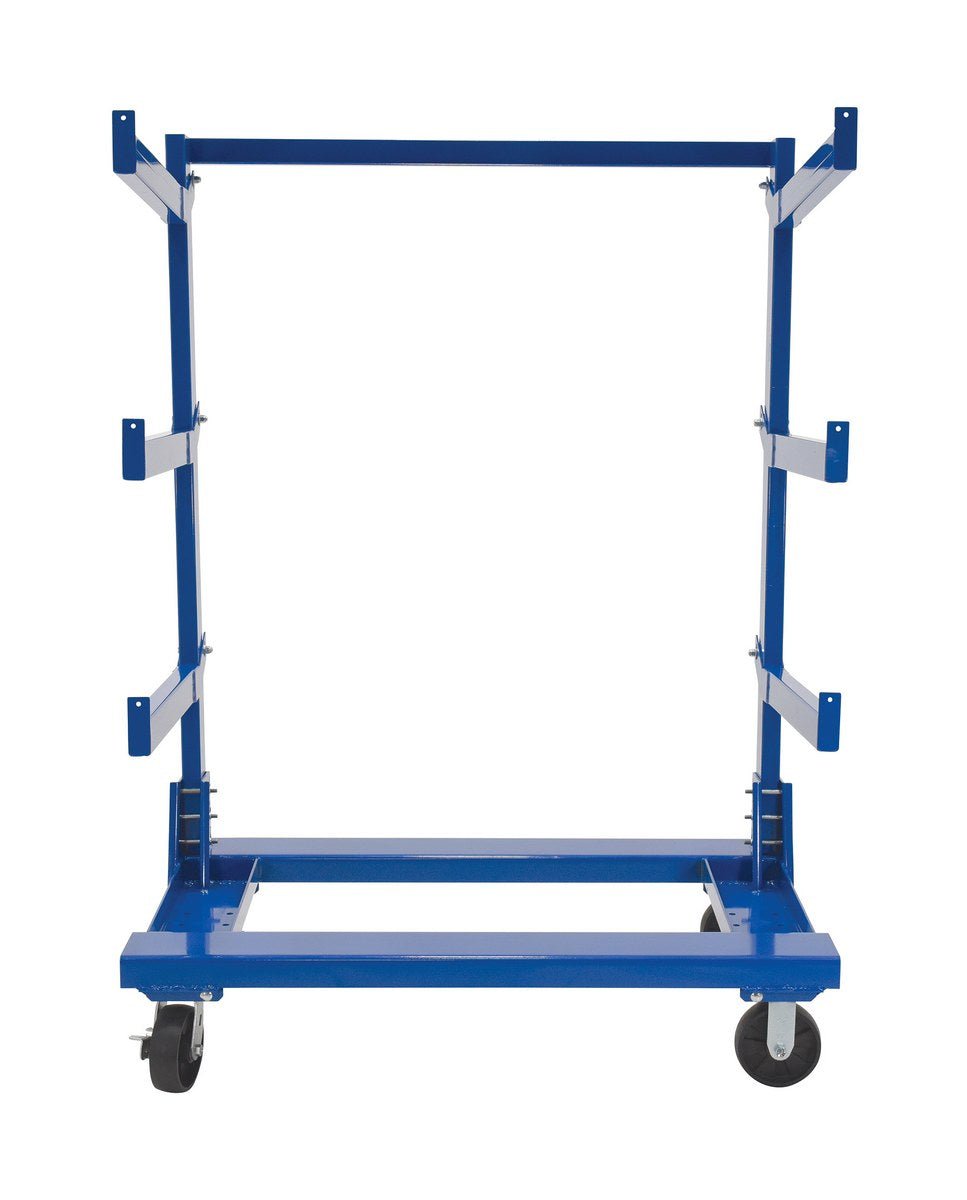

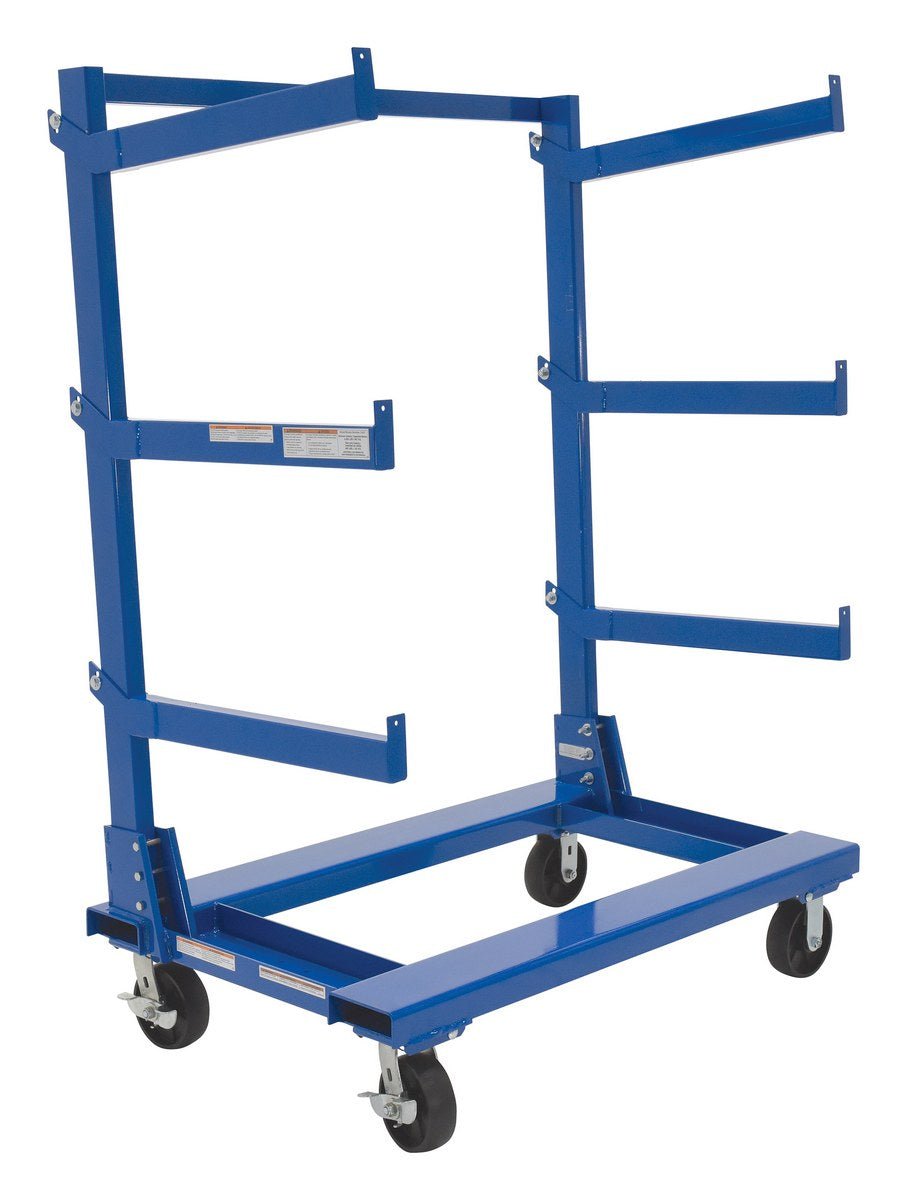

Portable Cantilever Cart for storage of bar stock type items. Each cart includes three pairs of arms. Arm height is adjustable in 6" increments.
Arms are secured to cart with a bolt and nut and each arm features two holes so that it may be attached in the level or inclined position. Height of lowest arm position is 18-3/4" while the highest position is 60-3/4". The 10" high base includes built in fork pockets that are 5-3/8"W x 2"H usable. Units roll on (2) rigid and (2) locking swivel 6" x 2" casters. All steel construction with blue baked-in powder-coated toughness.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Cantilever Carts | |||||||
| Model | Image | PDFs | Overall Size (WxLxH) |
Usable Arm Length |
Uniform Load Capacity (lbs) |
Capacity Per Level (lbs) |
Wt. (lbs) |
| CANT-3048 |  |

|
30"x 48-9/16"x 64-11/16" | 24" | 2,000 | 400 | 212 |
| CANT-3648 |  |
|
36"x 48-9/16"x 64-11/16" | 30" | 2,000 | 400 | 226 |
| CANT-3060 |  |
|
30"x 60-9/16"x 64-11/16" | 24" | 2,000 | 400 | 225 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
