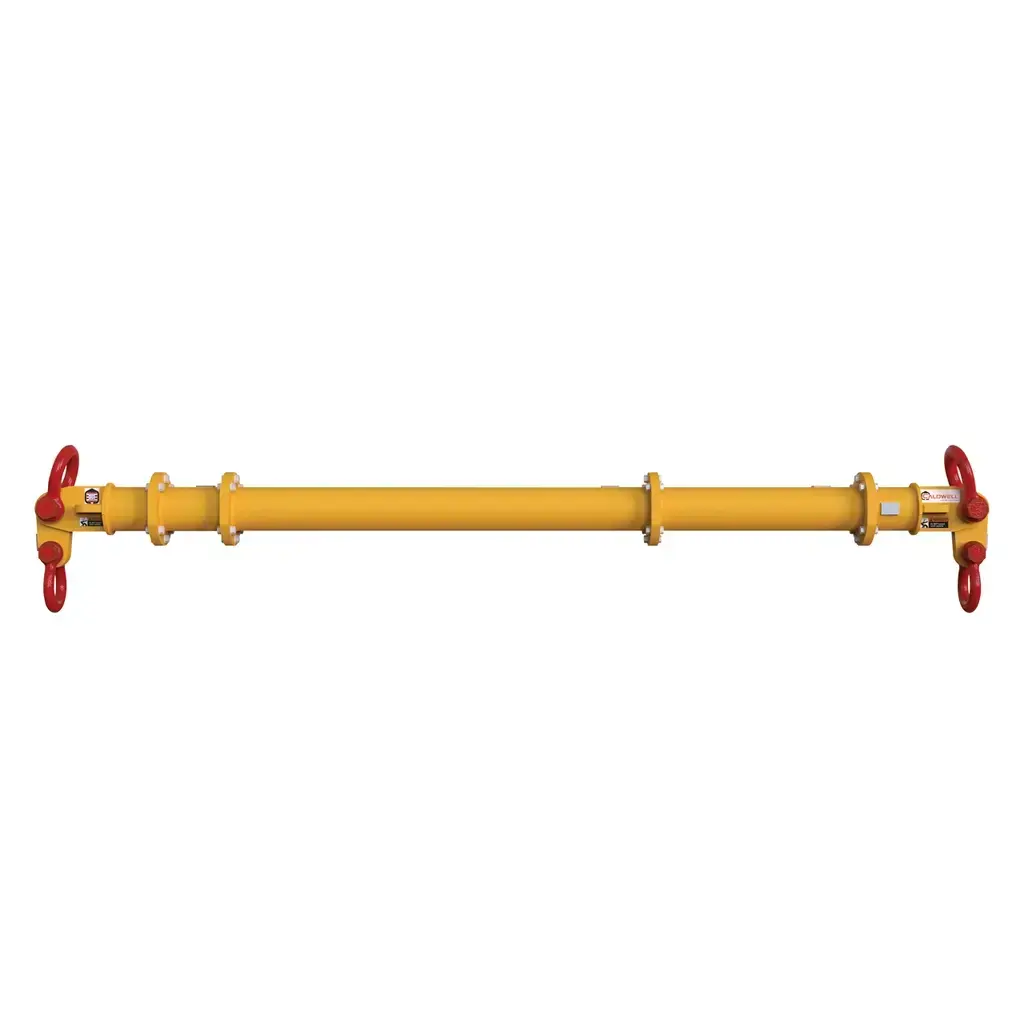

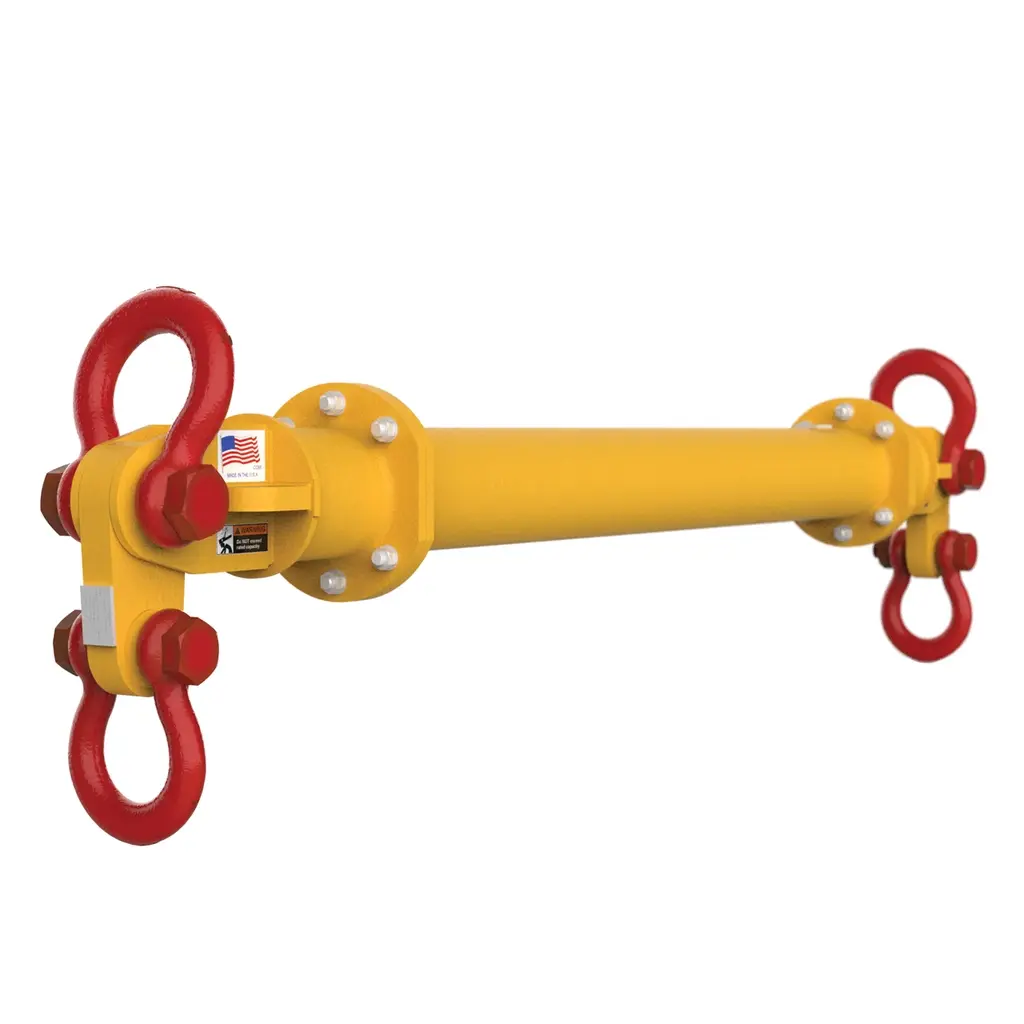

Caldwell Model DM24 2-Point 24-Metric Ton Spreader Beam System

The Caldwell Model DM24 Dura-Mod modular spreader beam system is designed for heavy-duty lifting applications requiring flexibility, easy transportation, and on-site assembly.

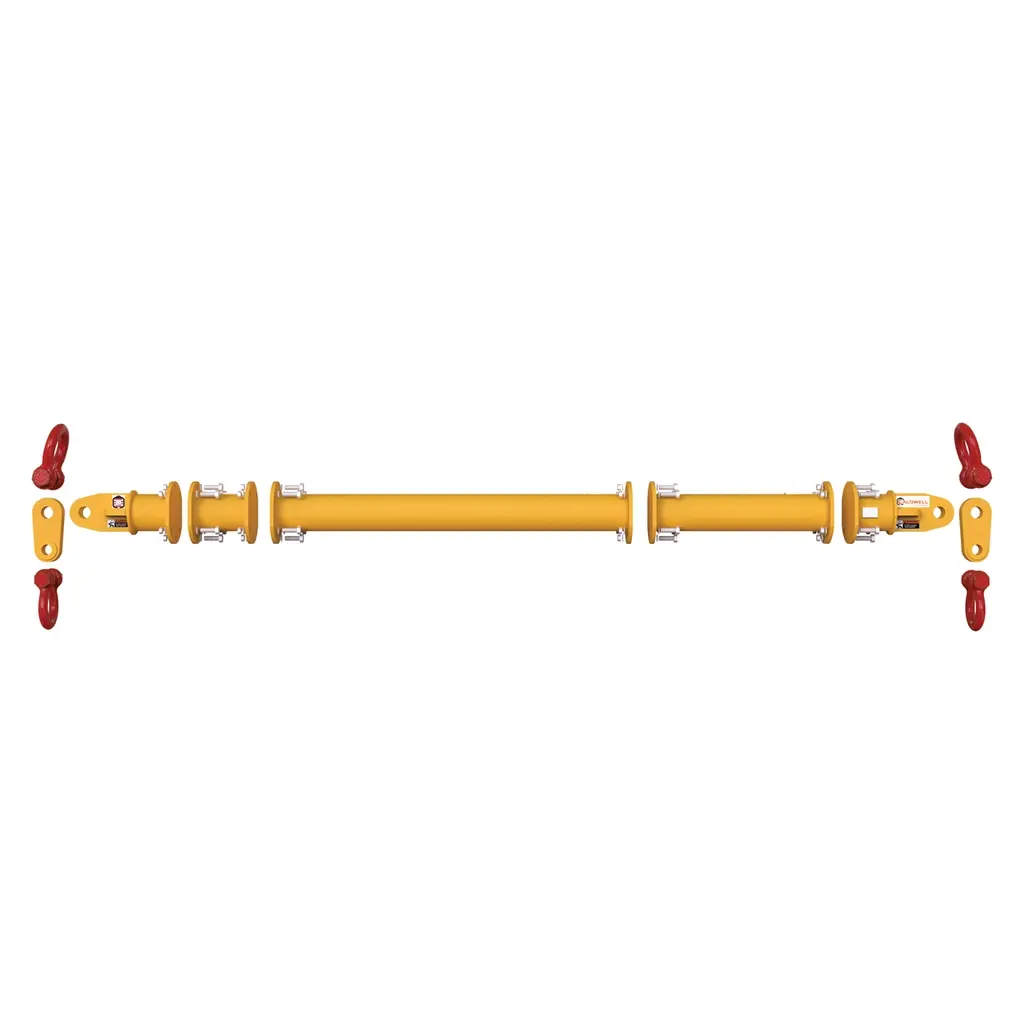

The modular design allows users to configure beam spans from 3 feet to 24 feet by combining spreader sections, end fittings, and drop links.

The DM24 system supports loads up to 24 metric tons and is ideal for manufacturing, construction, steel fabrication, shipbuilding, and industrial maintenance. Components can be ordered individually or as a starter set, allowing users to build a spreader beam that meets specific lifting requirements. One bolt kit is included with each end fitting and spreader section, with additional bolt kits available separately.

Key Features

Modular spreader beam system
Handles loads up to 24 metric tons
Configurable spans from 3 to 24 feet

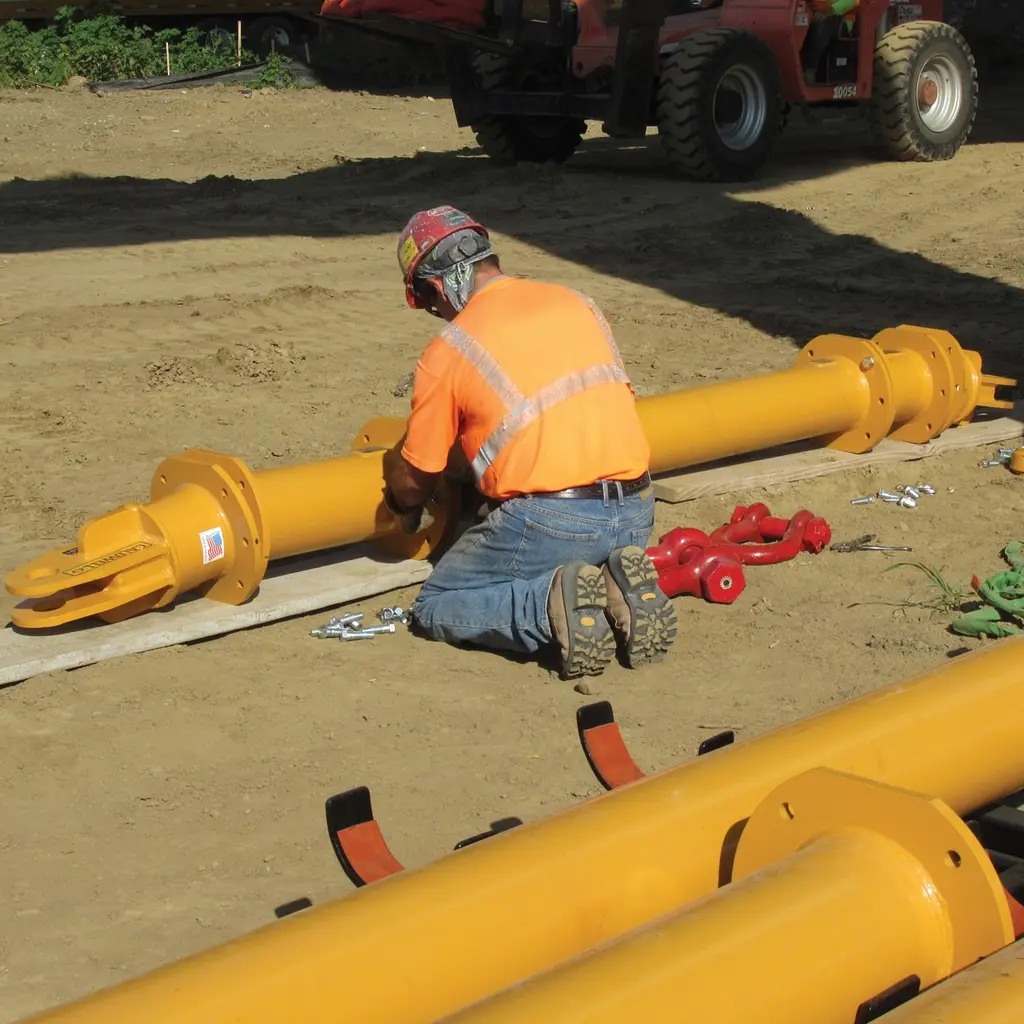

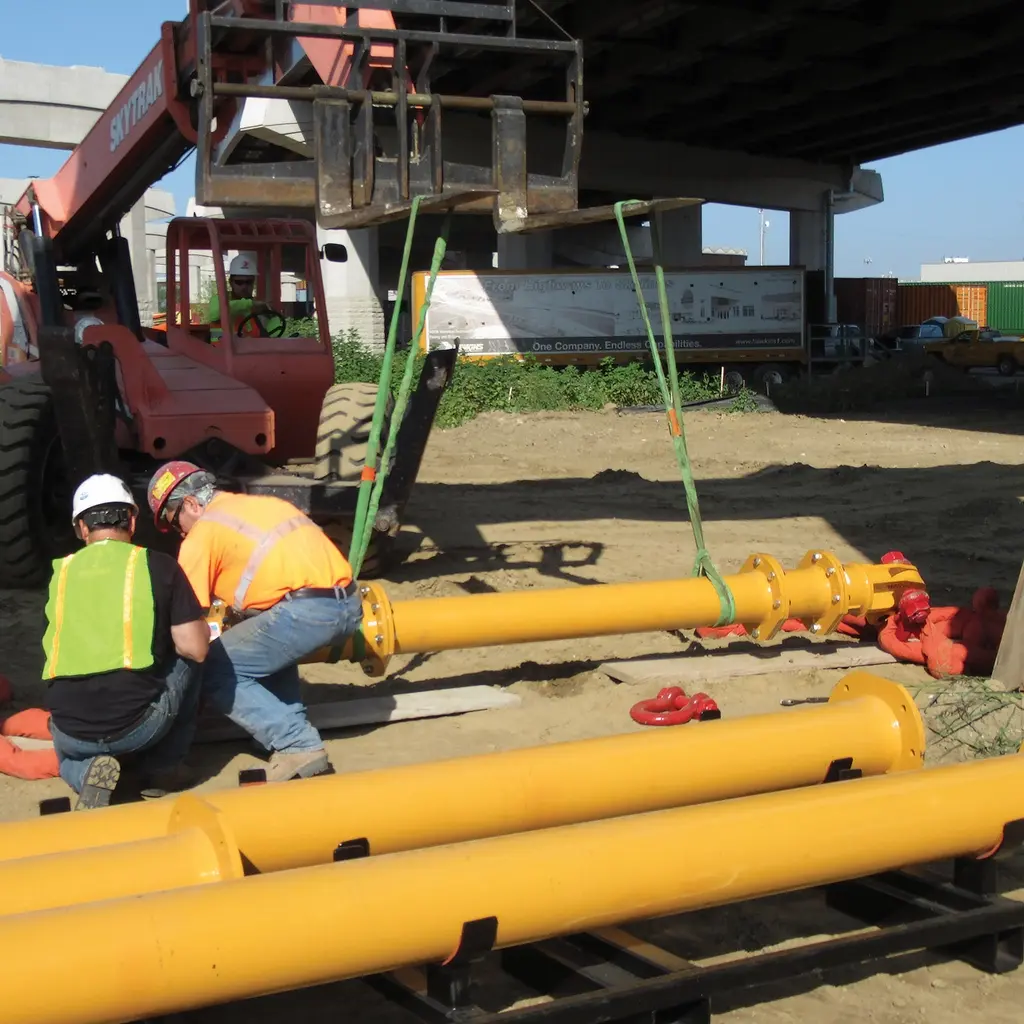

Assemble on-site for easier transportation
Order individual components or starter kit
One bolt kit included with each end fitting and spreader section
Reusable hardware with anti-seize thread coating
Compatible with synthetic, chain, and wire rope slings

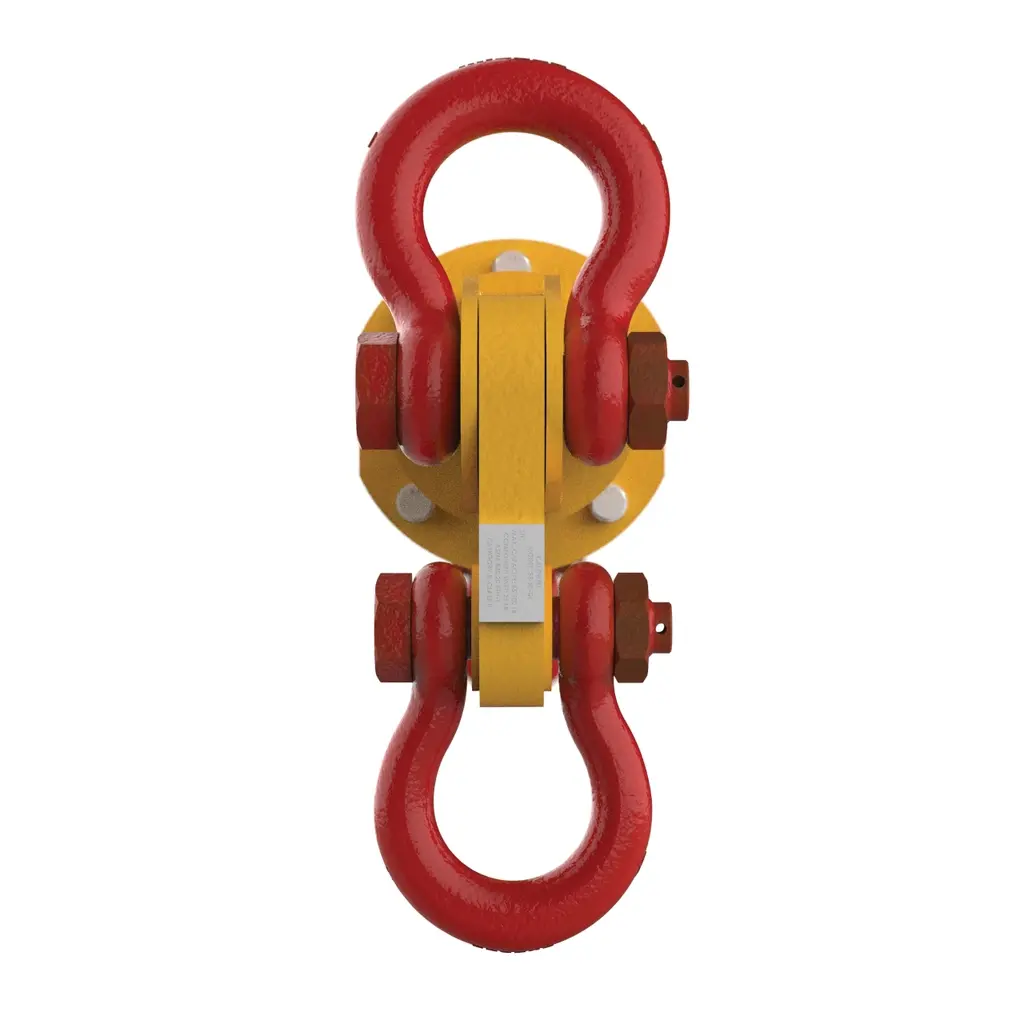

Designed for 17-ton top shackles and 12-ton bottom shackles
Capacity determined by beam span and sling angle
Built for industrial lifting applications

Applications

Steel fabrication
Manufacturing plants
Construction projects
Shipyards
Heavy equipment installation
Industrial maintenance
Material handling
Utility work
Infrastructure projects

Specifications

Product Type: Modular spreader beam system
Model: DM24
Maximum Capacity: 24 metric tons
Beam Span: 3 to 24 feet
Beam Configuration: Two-point spreader beam
Construction: Modular steel components
Top Shackle: 17-ton carbon bolt-type
Bottom Shackle: 12-ton carbon bolt-type
Slings: Not included
Compliance: Capacity based on span and sling angle per Caldwell charts

Individual Components

Model Number	Description	Weight (lbs.)

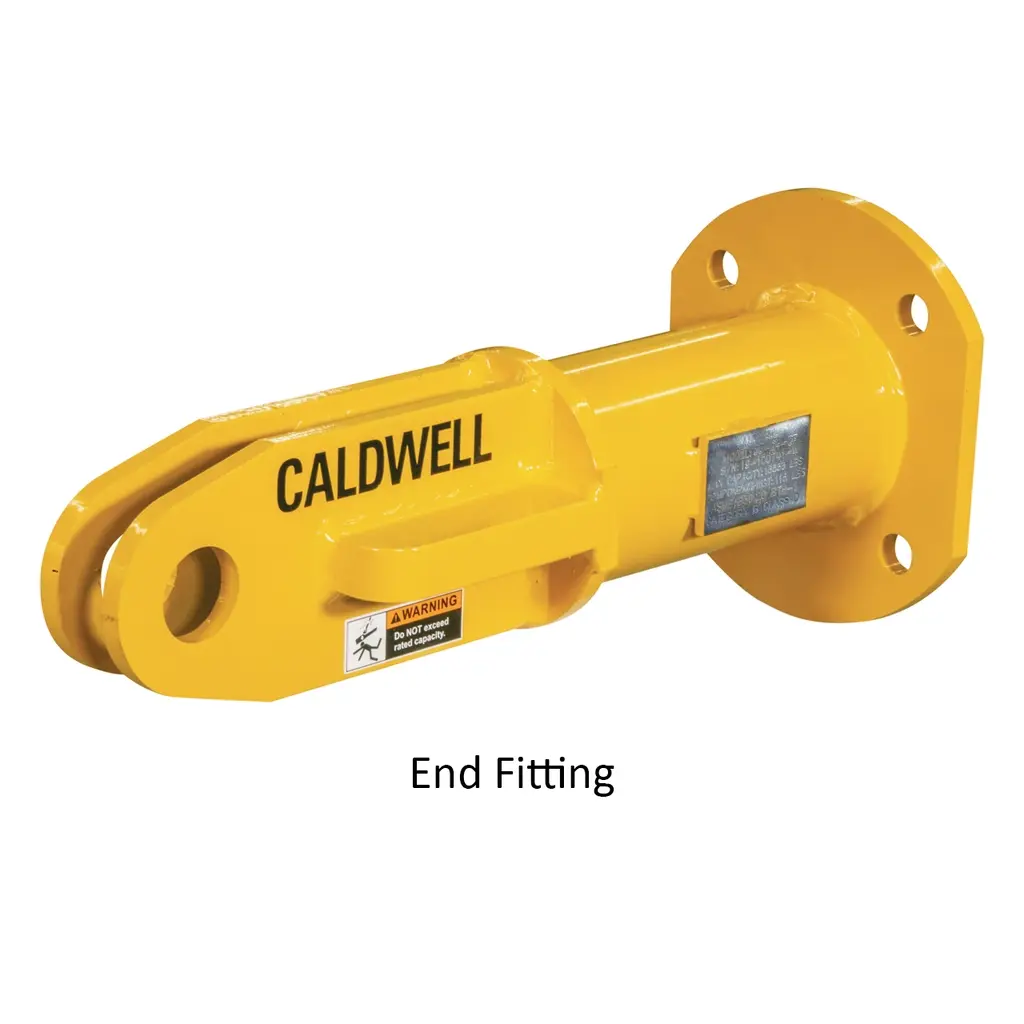

DM24-EF	End Fitting	45

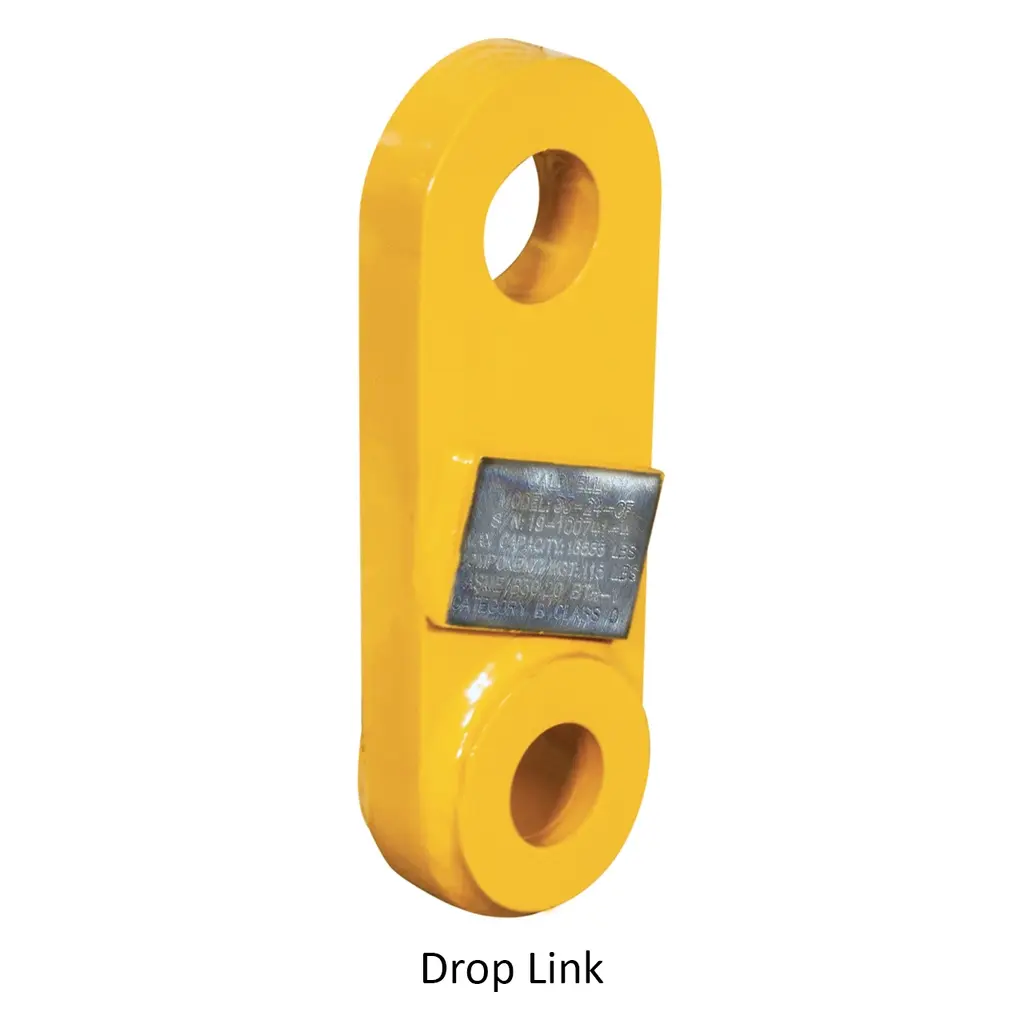

DM24-DL	Drop Link	10
DM24-SS-6	6 ft Spreader Section	110
DM24-SS-4	4 ft Spreader Section	80
DM24-SS-2	2 ft Spreader Section	50

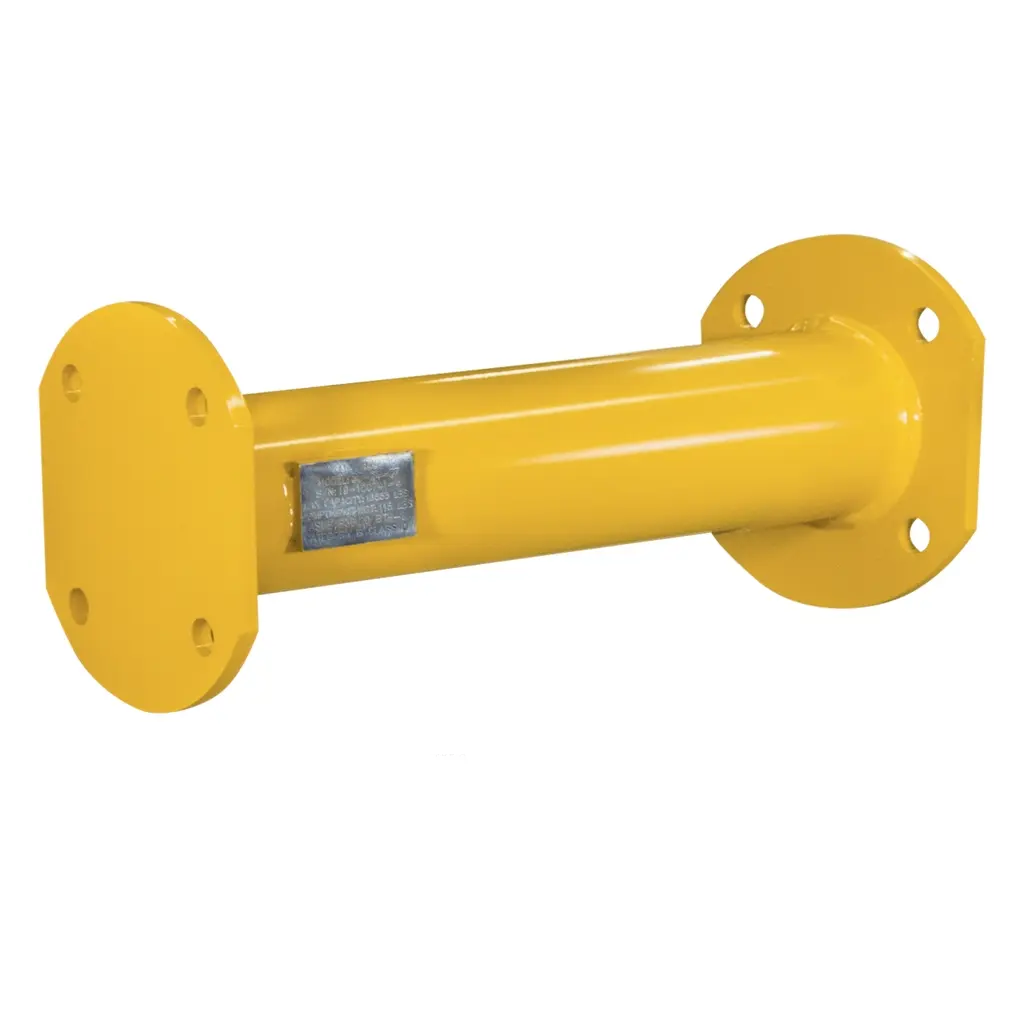

DM24-SS-1	1 ft Spreader Section	35

FAQ

What is the Caldwell DM24 used for?

The DM24 is a modular spreader beam system designed for lifting loads up to 24 metric tons in industrial and construction applications.

What beam lengths are available?

The system can be configured in spans from 3 feet to 24 feet using interchangeable spreader sections.

Are slings and shackles included?

No. Slings and shackles must be supplied separately as part of your lifting system.

Can the hardware be reused?

Yes. Bolts, nuts, and washers may be reused when anti-seize thread coating is applied during assembly.

How is the beam capacity determined?

Capacity depends on the beam span and the base-to-sling angle. Refer to the Caldwell Capacity vs. Span chart to determine the proper configuration for your application.
